4020 Glass Container Circular Bounce Tester Meets YBB Related Standards

The 4020 glass container circular runout tester complies with YBB related standards,It is a precision instrument used to detect vertical axis deviation and circular jumping of containers such as glass ampoules and penicillin bottles. It is mainly used in industries such as pharmaceuticals and medical packaging to ensure that the geometric accuracy of the bottle body meets quality standards. It has become an ideal choice for quality inspection centers, bottle factories, bottle users, and scientific research units to conduct vertical deviation detection.

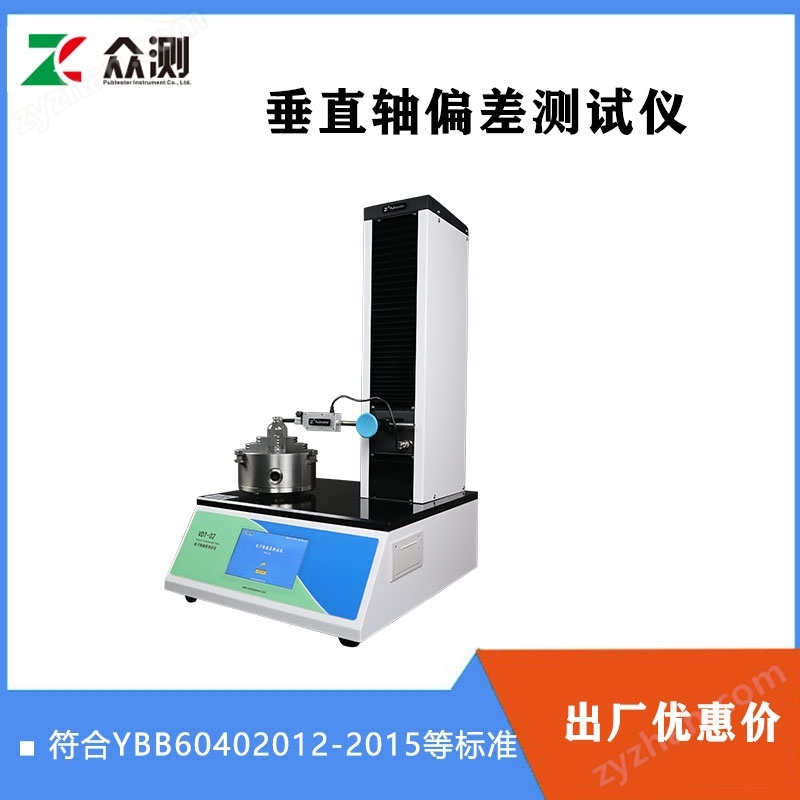

CrowdtestingVDT-02 Vertical Axis Deviation Tester DevelopedBy combining two measurement modes of vertical axis deviation and circular runout, it provides a dual-purpose solution that not only effectively reduces detection costs, but also becomes an ideal choice for quality inspection centers, bottle factories, bottle users, and scientific research units to conduct vertical deviation detection due to its high precision and versatility.

4020 Glass Container Circular Bounce Tester Meets YBB Related Standards

Test Principle

Fix the bottom of the bottle onto the rotating disc of the horizontal plate of the axis deviation tester, so that the bottle mouth is in contact with the dial gauge. Rotate 360 ° to read the maximum and minimum values, and half of the difference between the two is the vertical axis deviation value. The instrument cleverly utilizes the high concentricity of the three jaw self centering chuck, combined with a set of high degree of freedom brackets that can freely adjust height and orientation, to meet various container inspections.

meet the standard

YBB60402012-2015、YBB00332002-2015、YBB00192003-2015、GB 8452、GB 8452、GB 2639、QB 2357 、QB/T 1868

Technical Specifications
