Concentrated cream packaging machine

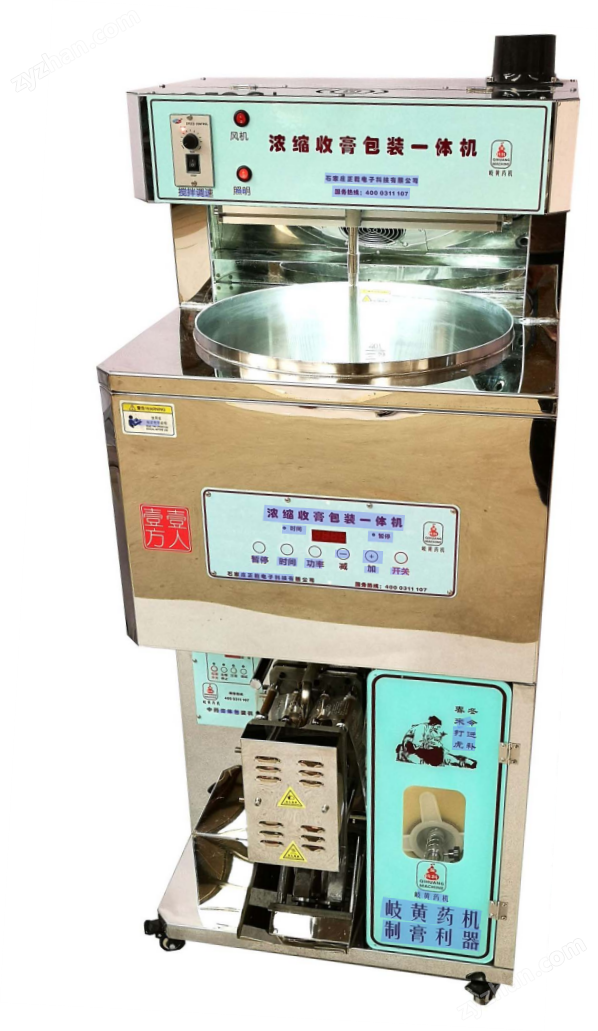

Concentrated cream packaging machineYNB-60

parameter

Equipment model: YNB-60

Pot capacity: 60L

Rated voltage: 220V/customizable 380V

Heating power: 5kw (220v)/12kw (380v)

Evaporation rate: 10-15L/h

Mixing power: 250W

Mixing speed: 0-56r/min (adjustable)

Packaging power: 60W

Packaging bag width: 70mm

Packaging speed: 5-9 bags/minute

Bag length: 30-300mm (adjustable)

Packaging capacity: 10ml-100ml (adjustable)

Delivery method: peristaltic pump

Exhaust power: 120W

Weight: 75KG

Dimensions: 60 * 60 * 150cm

1Concentrated cream packaging machineYNB-60 adopts an integrated design, which integrates drug concentration, paste collection, paste adjustment, and packaging. The pot has a large capacity, fast evaporation speed, adjustable heating power, and full process stirring. When the medicine is concentrated to the desired concentration, auxiliary materials can be directly added to the pot to adjust the paste. After the paste is adjusted, it is directly packaged without the need to transfer materials in different machines or containers, avoiding waste of paste and reducing labor intensity for personnel. There is a smoke exhaust fan at the top that extracts steam, improving the working environment. The prepared paste can be directly packaged into independent packages weighing 15-50 grams for easy carrying. This machine has changed the original packaging method of porcelain jars or bottles, using modern packaging technology to achieve vacuum packaging of small bags of paste. It uses a peristaltic pump as the conveying power source and optimizes the pipeline design. It not only achieves stable and accurate conveying of different viscosity pastes, but also clean, hygienic and easy to clean. After vacuum packaging, the paste has a long shelf life, is easy to carry, measures accurately, and is convenient to consume.

2、 Research and Development Background

In the production of traditional Chinese medicine paste formulas, the concentration and packaging of the paste need to be completed independently by two devices, which not only has high equipment investment costs, but also has problems such as large site occupation, high personnel requirements, and large loss of paste transfer. To address the pain points in this industry, we have developed a traditional Chinese medicine concentration and packaging machine, which integrates the processes of concentration, paste collection, paste adjustment, and packaging, achieving integrated processing from liquid medicine to finished paste, greatly optimizing the production process.

3、 Equipment structure

The YNB-60 paste packaging machine is fully functional and occupies a small area (only the size of 60 * 60 floor tiles). It mainly consists of a 60 liter pot body, a high-power heating unit, a stirring device (detachable and quick detachable), a peristaltic pump conveying system, a packaging unit, a computer board control system, a steam recovery device, and a rack. The equipment is equipped with a dedicated interface that can be directly connected to a closed decoction machine through pipelines, truly achieving fully automatic transfer of medicinal liquids, fast, safe, and hygienic

4、 Equipment features

1. Integrated design, integrating multiple processes such as concentration, paste collection, paste adjustment, and packaging, replacing traditional two equipment, reducing investment and paste transfer losses.

2. Support direct connection with most existing closed decoction machines, allowing for direct delivery of medication, which is more hygienic, safe, and convenient.

3. Mark the scale inside the pot for real-time monitoring of the total amount of paste during use, making it easy to control.

3. Equipped with a mixing system to replace manual mixing, the speed can be adjusted from 0-56 revolutions per minute, which can improve evaporation efficiency, prevent pot sticking, and synchronously complete the addition and dispersion of auxiliary materials.

4. The mixing device adopts a quick disassembly design, which is convenient to disassemble and can be easily cleaned with hot water.

5. Controlled by a computer board, the output power, heating time, and stirring speed can be accurately adjusted, and the parameter control is flexible.

6. The packaging system is powered by a peristaltic pump, optimized pipeline design, and can stably transport different viscosity pastes, ensuring cleanliness and hygiene.

7. Implement vacuum packaging to extend the shelf life of the ointment, with beautiful bag shape and precise dosage, making it easy to carry and use.

8. Dual voltage multi model adaptation, with optional versions of 220V (5kW) and 380V (12kW) to meet the power supply needs of different production scenarios.

9. Install a steam recovery device, cooling fan, and rear water vapor collector, which can be connected to smoke/exhaust pipelines to timely discharge steam and optimize the working environment.

10. The length of the packaging bag can be arbitrarily set to meet diverse packaging needs, with a packaging speed of up to 9 bags per minute, improving production efficiency.
