Zhengzhou Changcheng Technology Industry and Trade Co., Ltd

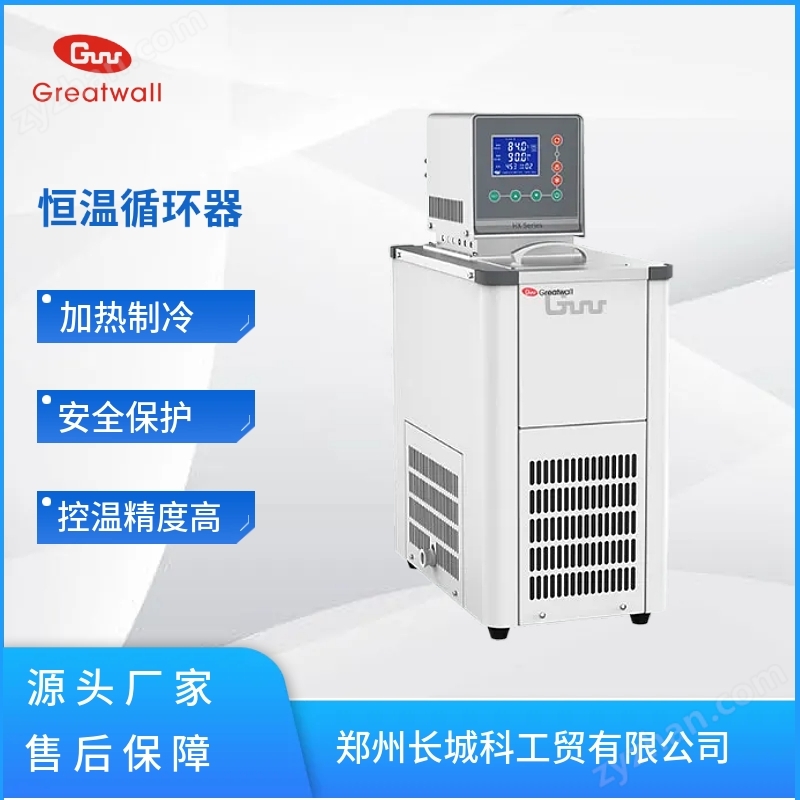

Constant temperature cycler
NegotiableUpdate on 02/11
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
The constant temperature cycler can be used as a separate container for constant temperature reactions, or it can be used in conjunction with electrophoresis instruments, electron probes, etc. to provide a uniform temperature source. Applied to research departments such as petroleum, chemical, metallurgical, pharmaceutical, and biochemical industries, universities, factory laboratories, and metrology and quality inspection departments.
Product Details
Constant temperature cyclerProduct Technical Features
●Can be used independently as a container for constant temperature reactions; It can also be used to output cold or heat sources to form supporting devices with electrophoresis instruments, electron probes, etc.
●Temperature control adoptsPIDThe method has high control accuracy.
●high brightnessLCDThe display screen can clearly show important data.
● RS-485communication interface,standardModbus RTUagreement.
●Bath trough adopts06Cr19Ni10texture of material.
●Detachable ventilation grille design makes it easy to clean the condenser.
●There is a discharge port designed on the side or rear, making it safer and more convenient to replace the refrigerant.
●The circulating pump adopts double impeller operation and has self-priming function, with increased flow rate and head.
●The circulating liquid (refrigerant) forms a dispersed and uniform flow field in the internal circulation, ensuring smooth heat exchange.
●It has functions of delay, overcurrent, and overload protection.
●Small space occupation.
Constant temperature cyclerMain technical parameters
type number |
HX-1005 |
|
Temperature range of heat carrier output(℃) |
-5～99 |
|
temperature stability(℃) |
±0.05(display precision) |
|
display mode |
number |
|
display precision |
0.01 |
|
Setting method |
button |
|
Rated power of heater(kW) |
1.1 |
|
refrigerant |
R134a |
|
circulation pump |
pump flow rateZlarge value(L/min) |
10 |
Pump pressureZlarge value(bar) |
0.2 |
|
External loop interface |
F12hose connector |
|
Storage tank capacity(L） |
5 |
|
Opening size of liquid storage tank(mm) |
141W×120D |
|
Depth of storage tank(mm) |
145 |
|
Overall dimensions(mm) |
270W×490D×650H |
|
Protection level |
IP 20 |
|
pollution level |
2 |
|
weight(kg) |
32 |
|
power supply |
220-240V～ 50Hz |
|
Total machine power(kW) |
1.5 |
|
Digital and Communication Interface |
Communication interface:RS485 |
|
Equipment shell material |
Cold plate electrostatic spraying |
|
Working environment temperature range(℃) |
5~35 |
|
Working environment humidity range(%) |
≤70 |
|
Zhengzhou Changcheng Technology Industry and Trade Co., Ltd. was founded in1988Nian is a technology innovation enterprise that integrates research, development, manufacturing, and operation. The company adheres to the concept of "quality first, innovation oriented, customer-oriented, and eternal integrity", and has long provided professional equipment for various fields such as chemistry, biology, and pharmaceuticals. Its products not only serve many universities, research institutes, and enterprises in China, but also are exported to Asia, Europe, the United States, and Australia. The company owns10000More than square meters of production workshop, with exquisite craftsmanship and strict testing to control products, a professional R&D team and university resources deeply cultivate technological innovation, and can provide customized and exclusive solutions according to customer needs.
