DT101 multibeam depth measurement system
Product Details

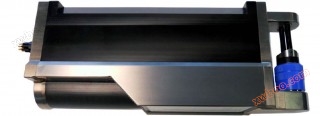

The DT101 multibeam depth measurement system is a product of the Canadian company LMagenex. It creatively integrates the transmitting transducer, receiving transducer, attitude sensor, and surface acoustic velocity meter together, with a compact structure that can be quickly installed for multibeam measurement with only an external positioning and directional GNSS receiver. Greatly reduce the calibration time and difficulty for users, and improve work efficiency.
● Highly integrated, weighing only 4.2KG
A single cable connects the underwater unit and the deck unit, making the entire system easy to install
120 ° wide strip scanning for high work efficiency
The control software is simple and easy to operate
● DC power supply, low power consumption
Open data format, supporting mainstream third-party data collection software
● Data network communication, low power consumption, can be operated on a laptop, truly portable measurement
LMagenex DT101 multibeam depth measurement system parameters:
| frequency | 240KHz | |
| opening angle | 120° | |
| beam angle | 0.75 °× 3 ° 1.5 °× 3 ° 3 °× 3 ° (software optional) | |
| Number of beams | Default: 480, optional: 240120 | |
| Range resolution | 0.02% range | |
| range | 75m depth, 150m slant distance | |
| Minimum depth measurement | 0.5m below the transducer | |
| Attitude sensor | Vertical and horizontal shake accuracy | 0.04 ° (with built-in installation of OEM version CDL MiniSense3) |
| Surge accuracy | 5cm or 5% (whichever is larger) | |
| Surface acoustic velocity meter | 1400m/s – 1600m/s， Accuracy: ± 0.025m/s (with built-in OEM AML Micro-X installation) | |
| Maximum withstand voltage depth | 300m (3000m optional) | |
| Interface with PC | Ethemet (100Mbps) TCP/IP protocol | |
| Maximum cable length | 100m CAT5-e | |
| joint | 8-core waterproof head | |
| size | 306mmL×117mmH×94mm W | |
| Transducer reset | in air | 300m withstand voltage level 4.2kg 3000m withstand voltage level TBA |
| in the water | 300m withstand voltage level 1.9kg 3000m withstand voltage level TBA | |
| material | Polyoxymethylene resin, titanium alloy, PVC， Titanium alloy joint | |
| DT100 SIR power supply | Two network ports (DT101 PC and Survey PC) links DT101 GNSS(GPS） Gyro/Heading Sensor 100-240 VAC or 12-36 VDC input Dimensions: 394mm × 325mm × 87mm |
|
| Maximum PING Rate | 20Hz | |
LMagenex DT101 multibeam depth measurement system host DT100 SIR
