Dental module brushing and grinding tester

NegotiableUpdate on 02/13

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

The dental module brushing and grinding tester $r $n is suitable for detecting the cleaning rate of external color spots in toothpaste. Through experiments, it is possible to effectively compare and evaluate the relative cleaning rate of toothpaste for exogenous pigmentation, providing scientific basis for determining relevant technical indicators.

Product Details

Dental module brushing and grinding testerDental module brushing and grinding tester

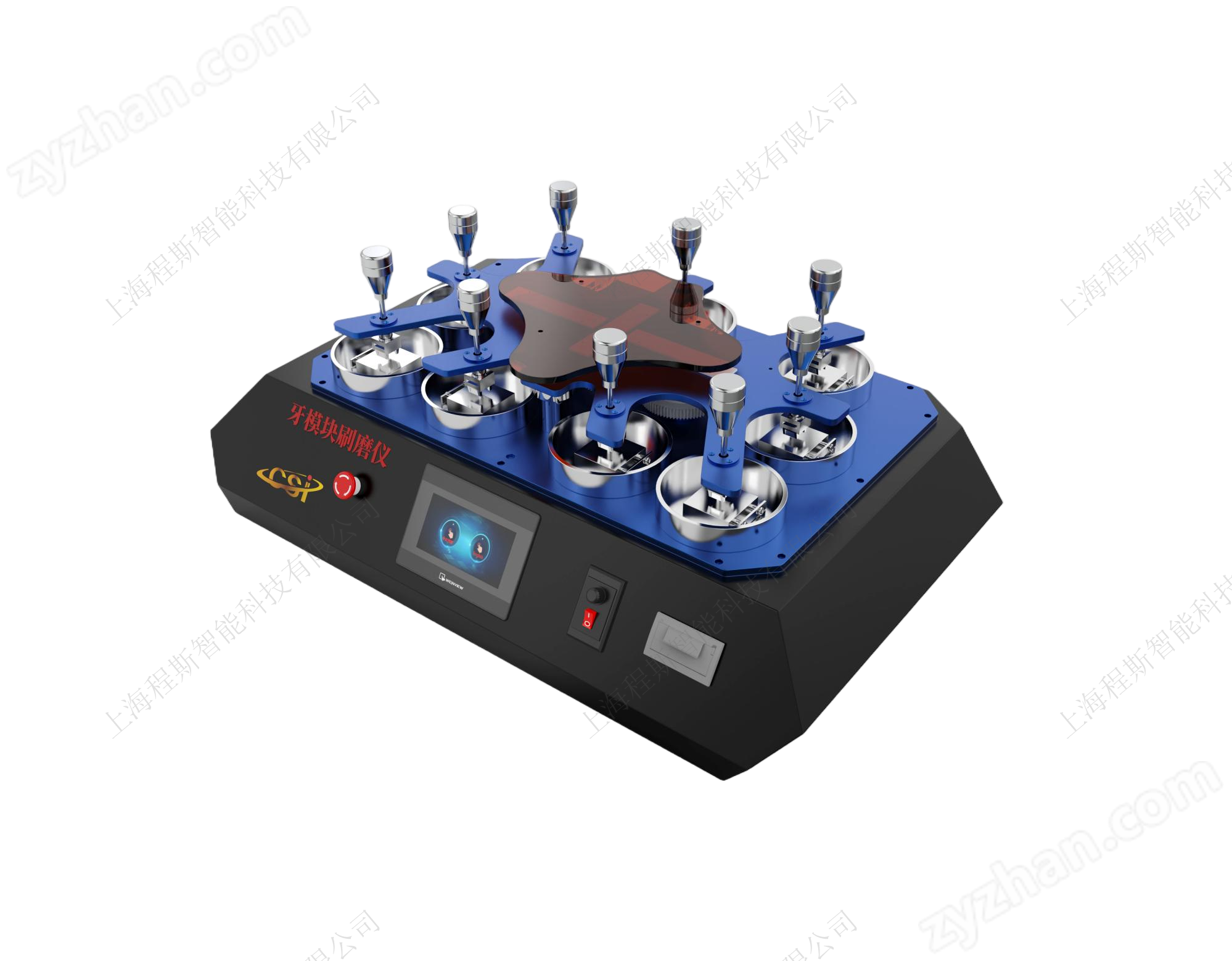

CSI-Z507 dental module brushing and grinding instrument

‌1、 Instrument Introduction:

Suitable for testing the cleaning rate of external color spots in toothpaste. Through experiments, it is possible to effectively compare and evaluate the relative cleaning rate of toothpaste for exogenous pigmentation, providing scientific basis for determining relevant technical indicators.

2、 Key parameters‌

Parameter items	Specifications‌
control system	industrial-gradePLC
operating interface	colorful7-inch touch screen, switching between Chinese and English
Operation method	Full touch operation, capable of setting, calling, and modifying test programs
printer	Embedded printer
test station	9workbit
Test count	0time-99999 times
test frequency	0r/min-150r/Min (adjustable)
Testing direction	X. The Y-axis direction can be changed
Vertical pressure	150±2g Optional with other pressures
security configuration	Emergency stop button, overload protection
power supply	AC 220V/50Hz
Overall dimensions	about6807501100mm
USB testing software socket, capable of reading data and connecting to a computer

牙模块刷磨测试仪

3、 Execution standards and applicable scenarios‌

Meet the standard

GB/T43576-2023 Laboratory testing method for the effect of toothpaste on removing exogenous pigmentation in oral cleaning and care products - Batch quality inspection;

Third party laboratory certification.

4、 Example of Operation Process‌

Install the standard toothbrush and dental grinding block onto the brush grinderAdjust the vertical pressure of the toothbrush on the tooth block to 150g ± 2g, and then set the back and forth frequency of the brush grinder to 100r/min. Add toothpaste slurry and control abrasive slurry to the slurry cups of the sample group and control group, respectively. Add an equal volume of slurry to each slurry cup to ensure that the slurry completely submerges the dental grinding block. Start the brush grinder，Round trip drama teeth600 times.
After brushing and grindingRemove the dental grinding block and rinse it with water three times until there is no visible tooth pulp residue. Dry the surface moisture with paper and measure the enamel whiteness value (L) within 10 minutes using a colorimeter.
noteA new toothbrush needs to be replaced during each experiment. There may be sedimentation phenomenon in the few plate samples, and the dental pulp should be stirred during the process.

5、 Configuration List

host1 unit;

test software1 set;

Instruction Manual1 copy;

Certificate of Conformity1 copy;

Warranty Card1 copy;

Delivery Receipt1 copy;

nameplate1 piece;

power cord1 piece;

hex key1 set;

Several brochures;
