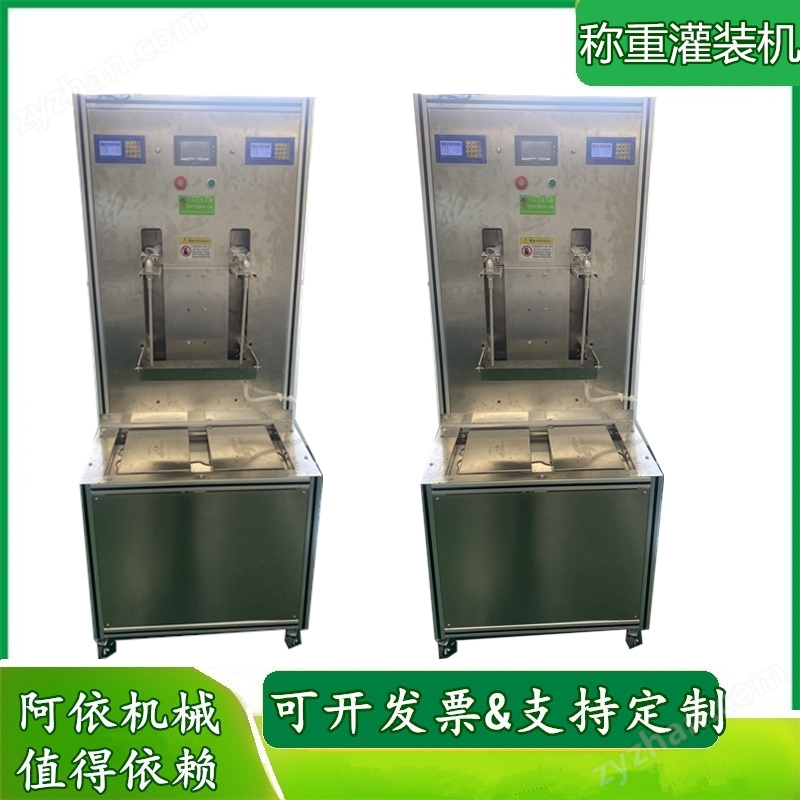

Double head weighing and filling equipment

NegotiableUpdate on 01/18

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

The double head weighing and filling equipment is controlled by PLC, and the filling head is lifted and filled to prevent the production of foam and affect the filling accuracy and sealing effect. It can be filled while rising.

Product Details

　　Double head weighing and filling equipmentAdopting a visual touch screen and PLC control system, with a built-in weighing system to ensure filling accuracy. All stainless steel casing. Can be filled with single or double heads.

Characteristics of dual head weighing and filling equipment:

1. Visual touch screen, clear parameter adjustment at a glance

2. Equipped with a stable system, each bottle automatically supports the skin

3. PLC control, filling and lifting the discharge nozzle simultaneously

4. Adopting self-priming 316 pump, durable

5. Adopting a sensing system, the motor automatically alerts when overheated

6. Filling capacity adjustable from 10-30000g

　　Double head weighing and filling equipmentParameters

Power supply: 220V 50hz

Power: 500W

Liquid absorption capacity: 32 liters/hour

Air pressure: 0.4-0.6Mpa

Filling capacity: 10-30000g

Lifting stroke: 10-300mm

Shell: Made of stainless steel material

Filling heads: 2 customizable

The company's main business covers standardized production and non-standard customization services for filling equipment in cosmetics, chemicals, pharmaceuticals, and other industries. The product line covers the entire process of bottle washing, filling, sealing, labeling, etc
