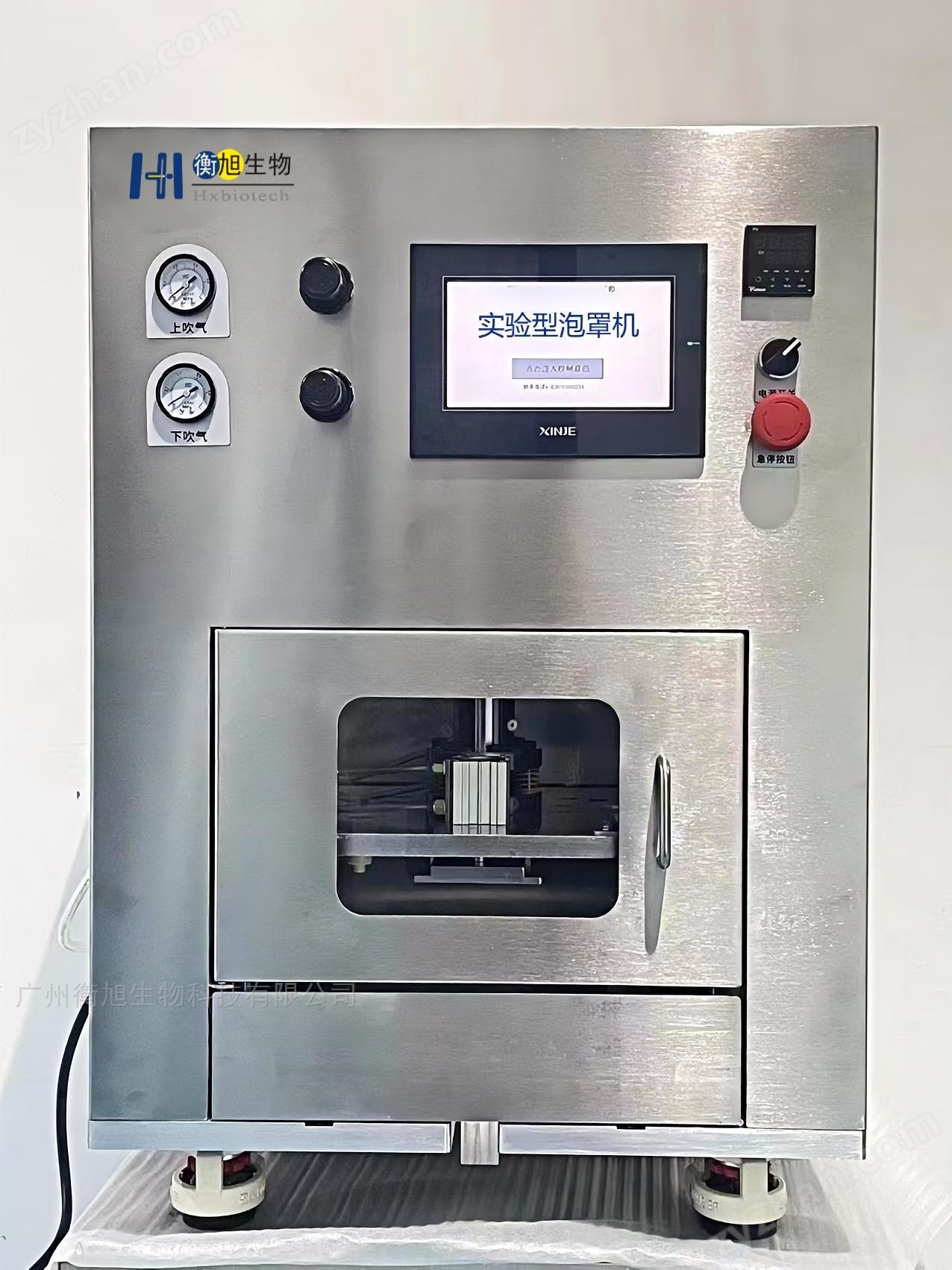

Experimental aluminum-plastic bubble hood machine

Experimental aluminum-plastic bubble hood machineA packaging equipment that integrates cold aluminum molding, aluminum-plastic molding, heat sealing, and cutting. It can be used for packaging various specifications of solid and liquid products such as sugar coated tablets, vegetarian tablets, capsules, shaped tablets, milk tablets, electronic chips, pharmaceuticals, and food.

1、 Introduction to Structural Features and Functions

1. PVC is formed into a plate type electric positive pressure molding, and the molded foam cover is evenly and firmly held.

2. The aluminum foil blister is formed by physical stretching

3. Heat sealing molding is the process of placing the bubble cap that is about to be formed into the desired packaging product, covering it with aluminum foil, and sealing the materials together under appropriate heat sealing temperature and pressure.

4. Cutting: Design a cutting die that matches the forming mold and cut it into fixed plates.

2、 Experimental aluminum-plastic bubble hood machineMain technical parameters

1. Brand: Hengxu Biotechnology

2. Model: HX-3600S

3. Mold width: maximum width of 150mm

4. Power supply: 220V/50HZ

5. Electric control pressure: ≥ 800kg,

6. The stroke of the pressure cylinder is controllable, with a stroke range of 0-80mm

7. Controllable pressing speed: 0~50mm/s

8. Controllable pressure holding time: 0~9999s

9. Temperature: RT~220 ℃,

10. Control accuracy: ± 0.05mm

11. Energy consumption: gas consumption of 100L/min, pipeline interface diameter: φ 10mm

12. Weight: 150kg

13. Dimensions: 809 × 649 × 640mm
