Shanghai Taoshan Packaging Machinery Co., Ltd
Fully automatic L-type sealing+shrink packaging machine
NegotiableUpdate on 03/05
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview

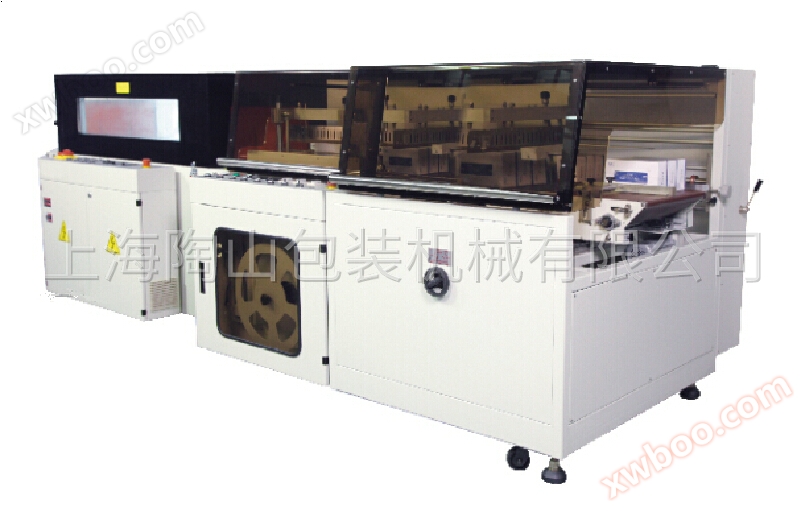

Fully automatic L-type sealing+shrink packaging machine
Product Details
Full automatic L-type sealing+shrink packaging machine Product details:
Technical parameters:
| model | TS-500LC | TS-5030C |
| Zui large sealing size | L600×W550×H150 | L600×W500×H200 |
| Applicable film | POF | POF/PVC |
| Use power supply and power | 3PH 380V 50Hz/1.8(KW) | 3PH 380V 50Hz/12(KW) |
| working efficiency | 20-40/min | 20-40/min |
| External dimensions | 1680×975×1500 | 1600×770×1560 |
| net weight | 290KG/6-8(kg/㎡) | 360KG/None |
Product details:
1. The horizontal blade of the sealing part adopts a vertical drive, and the vertical blade adopts an internationally advanced constant temperature side sealing blade. The sealing line is straight and firm, which can ensure that the sealing line is in the middle position of the product and achieve a good sealing effect.
2. The vertical sealing knife can sustainably perform sealing and cutting actions, and the length of the product is not limited.
3. This machine adopts an advanced PLC programmable controller with safety protection and alarm devices. The sealing and cutting system can continuously and smoothly perform sealing actions without replacement, and the maintenance operation is very simple.
4. Widely used in mass production packaging assembly line operations, automatic feeding, conveying, bagging, sealing, and shrinking are completed in one go, with high work efficiency and suitable for products of different heights and widths.
5. Front end power feeding line and rear end non power storage platform can be selected as needed. Automatic blowing function can be added according to customer needs.
