Galvanized frame aluminum foil partition high-efficiency filter

Product Introduction:

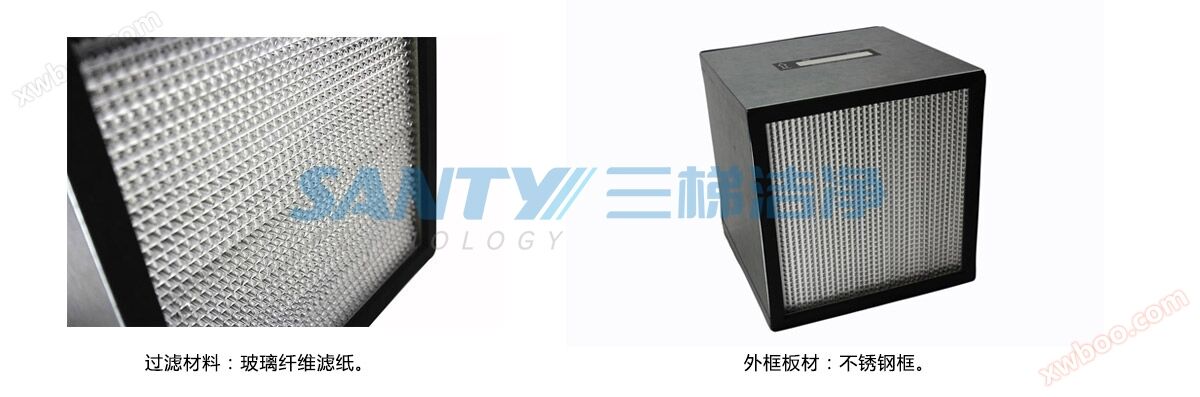

Using ultra-fine fibers as filter media, high-quality kraft paper hot rolling forming, or using adhesive paper and aluminum platinum as separators, it is glued with wooden frames or aluminum alloy frames, and has the advantages of high filtration efficiency, low resistance, and large air volume. Suitable for low-level non unidirectional flow projects and various purification equipment and clean rooms. Aluminum partition filters are mainly used in high temperature or high humidity environments, while paper partition filters are used in ordinary clean environments. The partition has a relatively large air volume and can be used for high-temperature filtration.

Product features:

1. Adopting a partition design, the corrugated partition can accurately maintain the spacing between pleats.

2. Maximize the use of filter media with minimal resistance.

3. The filter material is folded 180 times on both sides to form a wedge-shaped layer. When the filter material is bent, there are two indentations, which form a wedge-shaped box shaped layer at the end of the partition. The wedge-shaped box shaped layer can prevent damage to the filter material.

4. In corrosive environments, ethylene coated separators can be used to capture 0.12 μ m particles with an efficiency of 99.9999%

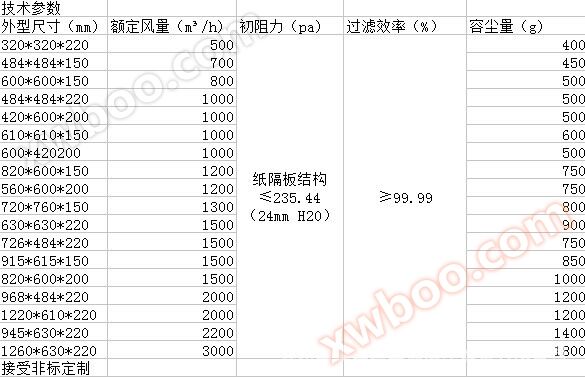

Sizes can be customized according to requirements
