High temperature resistant and efficient filter

Product Introduction:

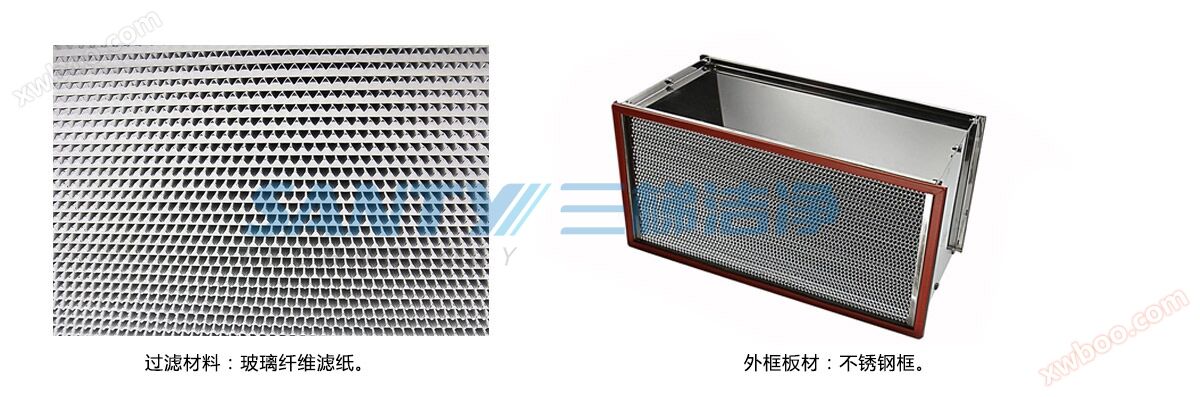

Using a partition design, the corrugated partition can accurately maintain the spacing between the pleats and maximize the use of filter material with minimal resistance. The filter material has 180 folded pleats on both sides, and there are two indentations when the filter material is bent, making it open into a wedge-shaped box pleat layer at the end of the partition. The wedge-shaped box pleat layer can prevent damage to the filter material. High temperature resistant glass fiber filter paper; Stainless steel frame, aluminum frame; Sealing glue: high temperature resistant silicone; Sealing gasket: silicone rubber; Counting efficiency per laser: 99.99% @ 0.3um Efficiency level: H13; The high-temperature resistant and high-efficiency filter operates continuously at a temperature of 300 degrees Celsius.

Product features:

1. Good uniformity of wind speed

2. High temperature resistance can work normally in a high temperature environment of 300 ℃

3. Customizable according to customer requirements

Application areas:

High temperature resistant filters are used for high-grade filtration in automotive spray painting workshops and are widely used in clean rooms and other fields with strict requirements for high temperature resistance.
