Industrial peristaltic pump G600-1J-1
NegotiableUpdate on 03/02
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
The external power module has a stronger surge resistance and higher reliability with an IP67 protection level
Product Details
Applicable locations:
Damp, dusty, acidic and alkaline corrosion, strong electromagnetic interference and other industrial production environments
Product Features:
Compact structure, compact appearance, maximum flow rate of 3L/min
Strong driving force, compatible with various high chemical resistance hoses
The adoption of high-end components further improves the electromagnetic compatibility performance of the product, ensuring its long-term reliable and stable operation in industrial environments with severe electromagnetic interference
Aluminum alloy shell, anti-corrosion paint treatment, improves the anti-corrosion performance of the whole machine, and extends the service life of the pump in harsh environments
High protection level IP65, suitable for humid and dusty environments
Segmented LCD display screen, professionally designed interface, visually displays the pump's setting parameters and working status
If CE certified products are required, please indicate in the order:
Functional Features
Speed range: 0rpm-600rpm, reversible in both forward and reverse directions
Speed regulation resolution: 1rpm
Display mode: LCD screen
Control methods: button control, external signal control, and communication control
External control function: start stop control/direction control: passive contact signal
Speed control: 0-5V, 0-10V, 4-20mA, 0-10kHz optional, unified interface, maximum speed can be set (setting range 60rpm-600rpm)
Communication function: RS485 communication interface, supports Lange company protocol and Modbus protocol, can set communication parameters (address, baud rate, checksum, stop bit) through buttons
Parameter memory: automatic saving of operating parameters and system parameters
Power on operation status: The state can be set before power on stops or power off resumes
Full speed function: One click control for full speed operation, used for fast filling, emptying, etc
Electromagnetic compatibility: Key indicators reach or exceed level III
Keyboard lock function: The keyboard can be locked to prevent accidental operation
Dimensions (length * width * height): 240 mm × 211 mm × 155 mm (including external power supply and bracket)
Applicable power supply: AC100V~240V/100W, 50-60Hz
Working environment temperature: 0 ℃~40 ℃
Relative humidity in the working environment: 10% to 90%
Protection level: IP65
Weight: 5.56kg (including external power supply and bracket)
Speed regulation resolution: 1rpm
Display mode: LCD screen
Control methods: button control, external signal control, and communication control
External control function: start stop control/direction control: passive contact signal
Speed control: 0-5V, 0-10V, 4-20mA, 0-10kHz optional, unified interface, maximum speed can be set (setting range 60rpm-600rpm)
Communication function: RS485 communication interface, supports Lange company protocol and Modbus protocol, can set communication parameters (address, baud rate, checksum, stop bit) through buttons
Parameter memory: automatic saving of operating parameters and system parameters
Power on operation status: The state can be set before power on stops or power off resumes
Full speed function: One click control for full speed operation, used for fast filling, emptying, etc
Electromagnetic compatibility: Key indicators reach or exceed level III
Keyboard lock function: The keyboard can be locked to prevent accidental operation
Dimensions (length * width * height): 240 mm × 211 mm × 155 mm (including external power supply and bracket)
Applicable power supply: AC100V~240V/100W, 50-60Hz
Working environment temperature: 0 ℃~40 ℃
Relative humidity in the working environment: 10% to 90%
Protection level: IP65
Weight: 5.56kg (including external power supply and bracket)

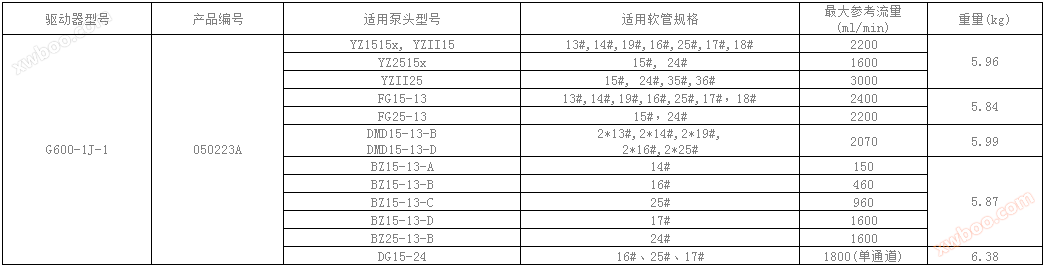

TECHNICAL INDEX
