Magnetic Material Dimensional Imaging Measuring Instrument

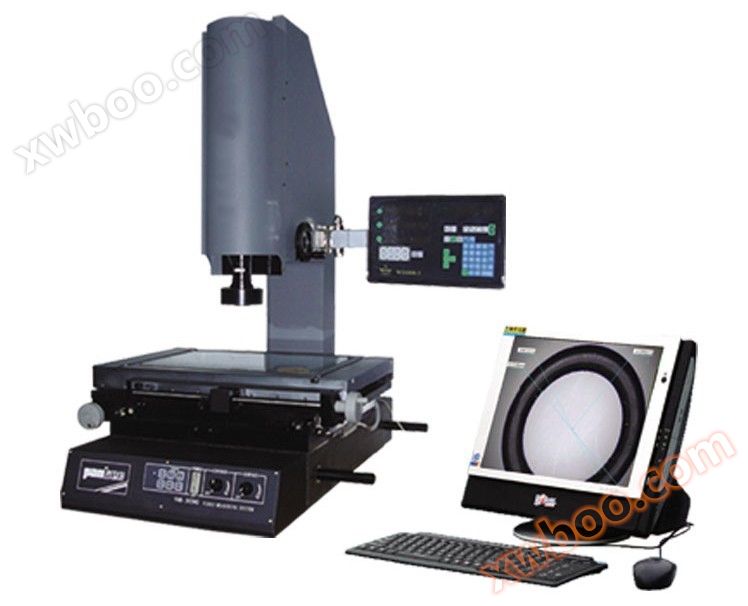

Magnetic Material Dimensional Imaging Measuring InstrumentThis instrument is suitable for all application fields aimed at two-dimensional measurement. Widely used in industries such as machinery, electronics, watches, plastics, molds, etc. The powerful YR-C measurement software can achieve all two-dimensional plane measurement functions, as well as functions such as taking pictures, scanning product contours, professional SPC statistics, manual CNC, macro measurement, etc.

Magnetic Material Dimensional Imaging Measuring InstrumentTechnical parameters:

Drawing function: It can draw points, lines, circles, arcs, spline curves, vertical lines, parallel lines, etc., and input the graphics into AutoCAD to achieve reverse engineering and obtain 1:1 engineering drawings.
Automatic surveying: It can automatically survey shapes such as circles, ellipses, lines, arcs, etc. It has functions such as automatic edge searching, automatic capture, automatic mapping, and automatic deburring, reducing human error.
Measurement annotation: It can measure any geometric dimension of the workpiece surface, including angles, widths, diameters, radii, center distances, and other dimensions at different heights, and can annotate dimensions in real-time images.
SPC statistical analysis software: provides a series of control charts and various types of chart representation methods, making quality control work more convenient and greatly improving the efficiency of quality management.
Report function: Users can easily output measurement results to WORD or EXCEL, automatically generate inspection reports, and automatically change the color of out of tolerance values, making it particularly suitable for batch inspection.
Bird's-eye view function: It can view the overall shape of the workpiece and the corresponding numbers for each size, intuitively reflecting the current drawing position, and can freely move and scale the workpiece image.
Real time comparison: Standard DXF engineering drawings can be imported into measurement software and compared with workpieces to quickly detect the difference between the engineering drawing and the actual workpiece, suitable for detecting complex workpieces.
Photography function: The current image and annotated dimensions can be photographed and saved in JPEG or BMP format, and can be imported into measurement software for comparison with the actual workpiece.
Optical glass: Optical glass is a standard component that has been inspected and approved by the National Bureau of Metrology. It can be used to check the verticality of the X and Y axes, set a scale, and ensure that the measurement data matches the actual situation.
Customer coordinates: During measurement, there is no need to align the workpiece or fixture positioning. Users can set customer coordinates (workpiece coordinates) according to their own needs, which is convenient, time-saving, and improves work efficiency.
