Shanghai Chengwei Instrument Technology Co., Ltd
Medical heating pad spark ignition tester
NegotiableUpdate on 02/18
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
Overview of medical heating pad spark ignition tester: The flexible outer cover heat resistance fixture of the heating component is used to test the heat resistance and flame resistance of the flexible components of medical electric heating blankets and heating equipment, in order to verify whether the flashing arc of the charged body causes overheating or combustion of the test sample.
Product Details

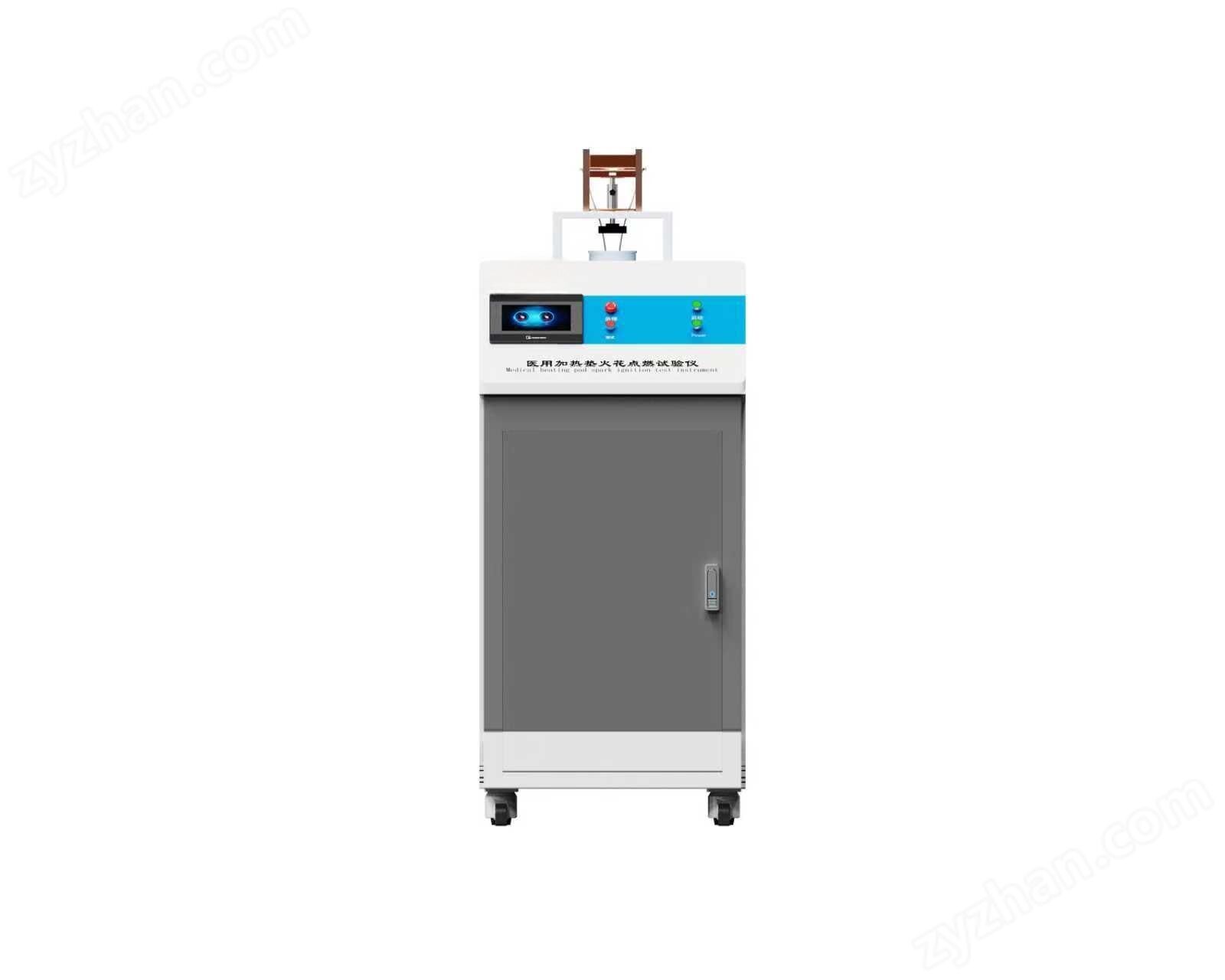

Medical heating pad spark ignition tester
Equipment Overview:
The heat resistance fixture of the flexible cover of the heating element is used to test the heat and flame resistance of the flexible components of medical electric heating blankets and heating equipment, in order to verify whether the arcing of the charged body causes overheating or combustion of the test sample.
Applicable standards:
comply withYY9706.235-2021Medical Electrical Equipment235part:Special Requirements for Basic Safety and Basic Performance of Medical Blanket, Mat or Mattress Heating Equipment "clause in the standard201.8.8.4.101Chapters and figures201.103The requirements.
Technical Specifications:
Control system:PLC；
Operating interface: Color7Inch touch screen, switching between Chinese and English;
The electric blanket spark ignition test device is divided into two parts: the control box and the test bracket;
Electrode: Two electrodes with a diameter of3mmCopper electrode (an electrostatic electrode)jianend45°, a movable electrode flat head), adjustable distance between electrodes;
The farthest point of the electrode from the copper pillar is located at the top of the electrode, and it is approximately from the center of the platform3mm；
Voltage: including5～15KV；
Current: including1～2mA；
Voltage drop: current1mAWhen, the range of output voltage drop100VWithin;
time:Touch screen display settings0～9999S；
Upper template size:100mm*100mm*10mm(Aperture diameter φ50)；
Template size:100mm*100mm*30mm(Aperture diameter φ50)；
Insulation board size100mm*100mm；
input power:AC220V 50HZ

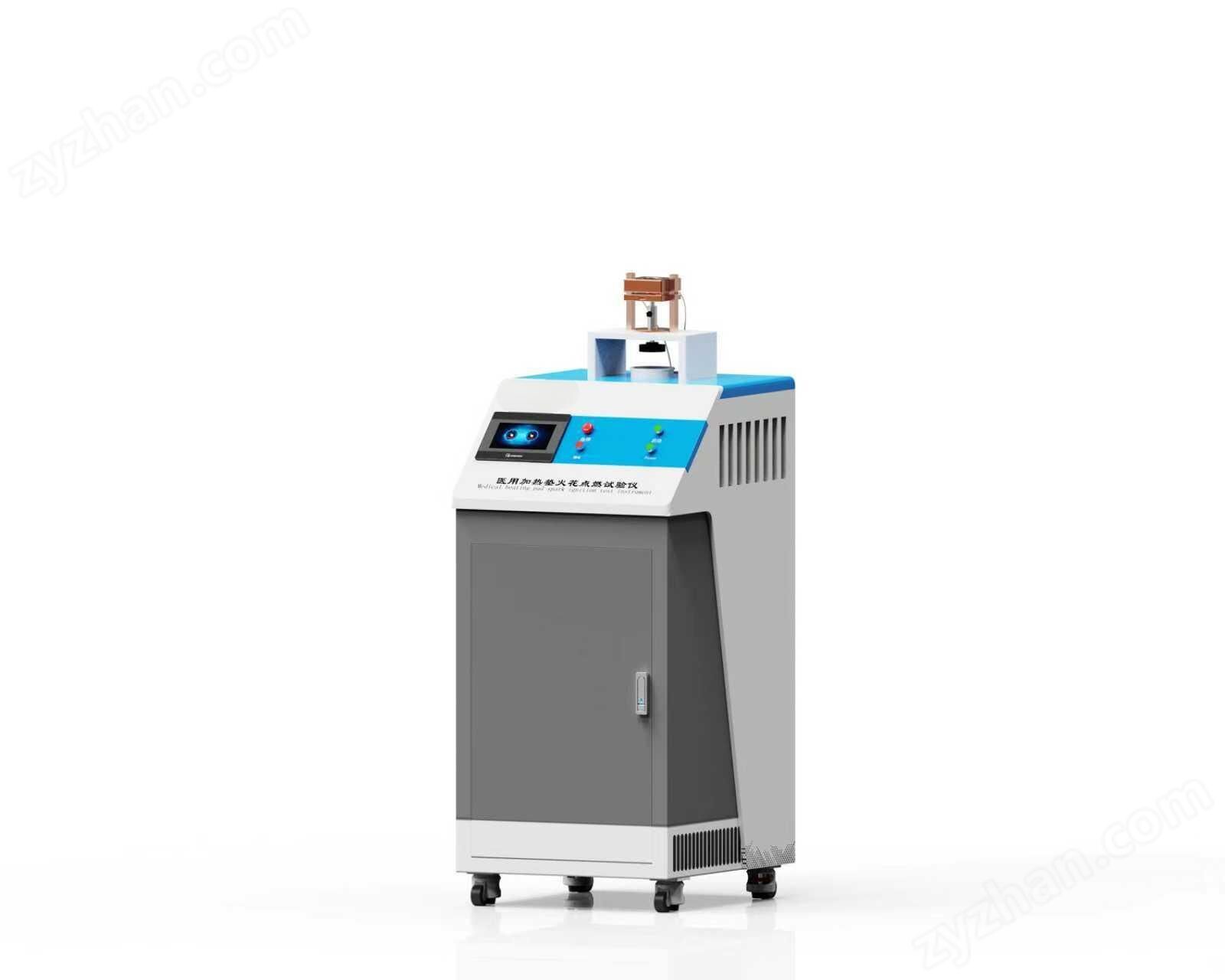

Medical heating pad spark ignition tester
