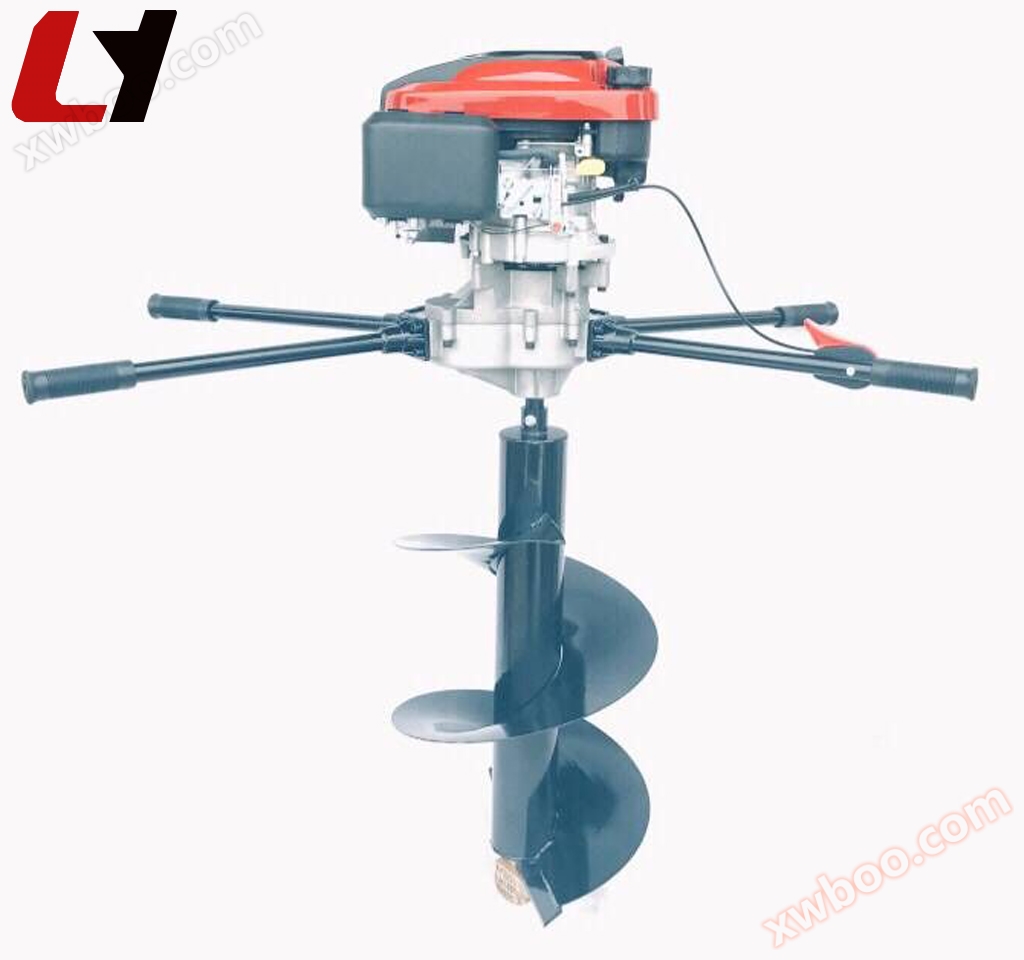

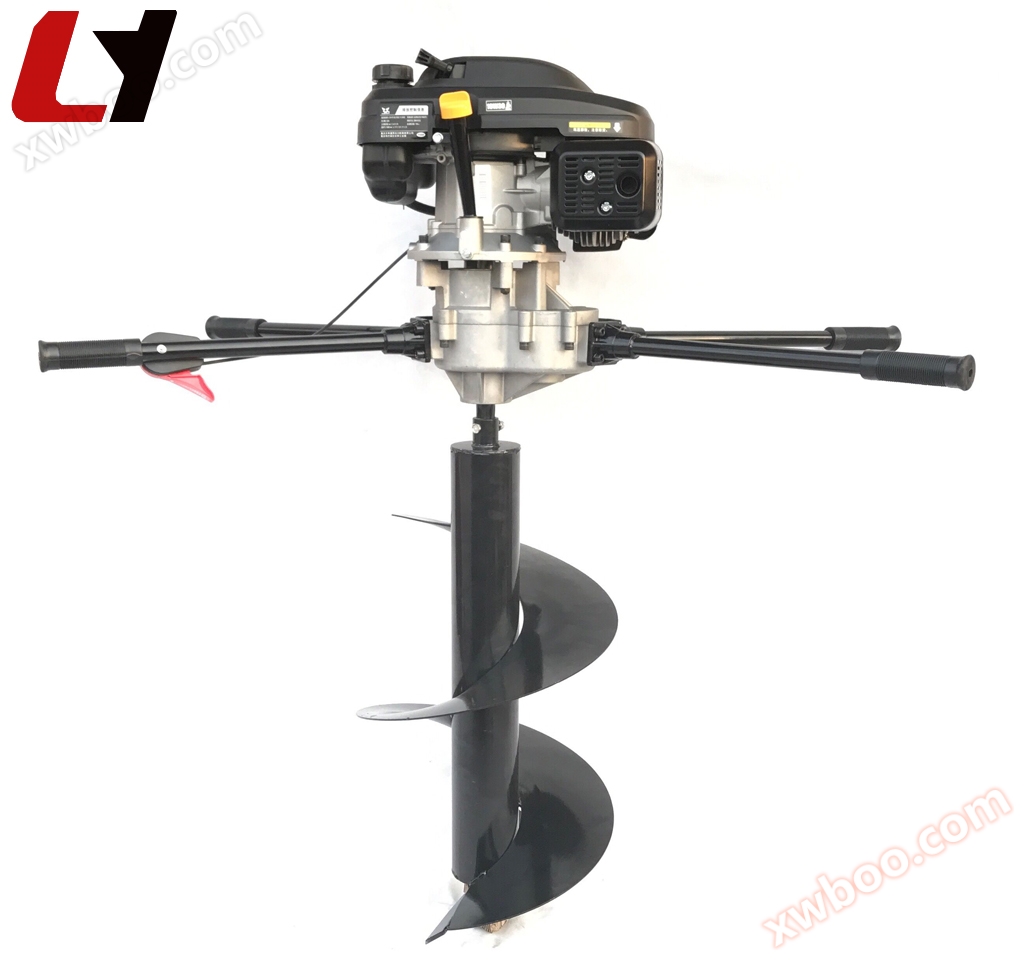

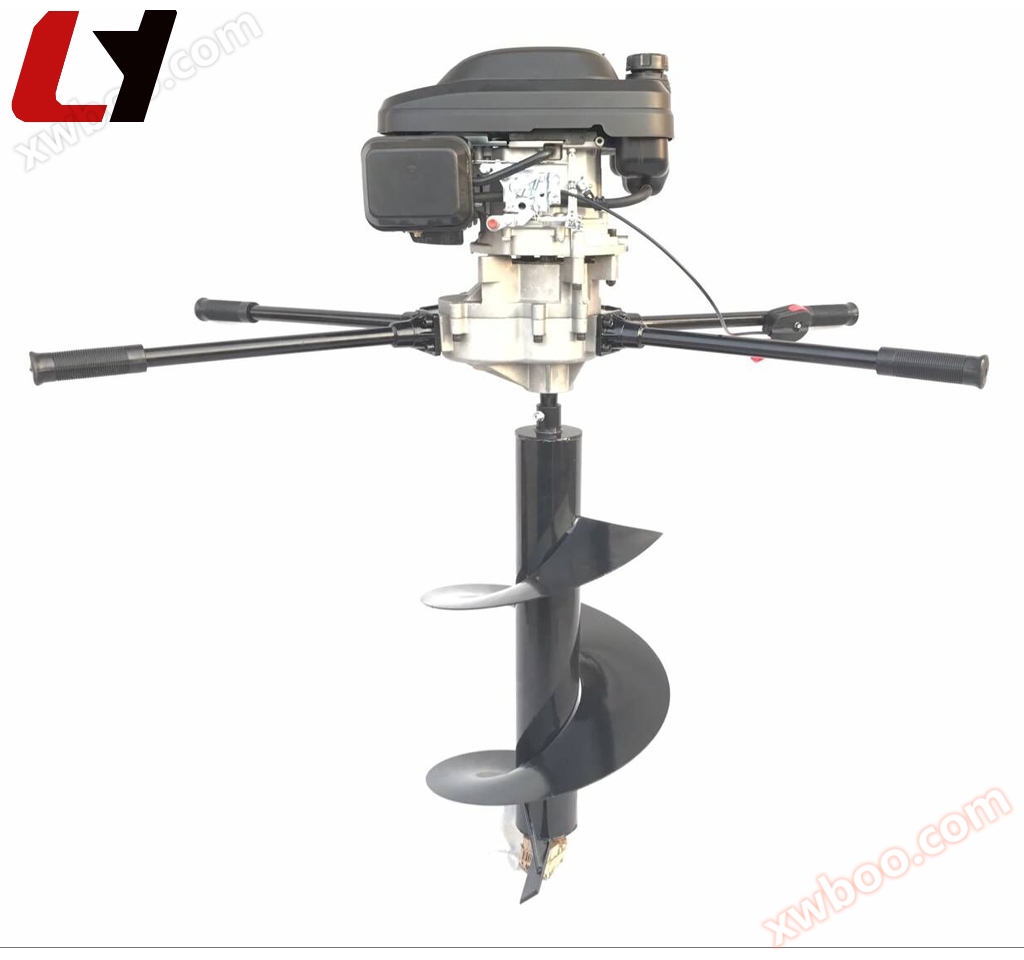

New LY-173 Double Person Operation Pile Drilling Machine Four Stroke Gasoline Tree Planting Excavator

Product Details

The efficient LY-173 tree planting and digging machine is suitable for tasks such as tree planting and digging, fruit and vegetable fertilization and digging, and bracket digging that require drilling

Single player operation:Easy and fast operation, high production efficiency.

Stable work:Continuous drilling, fuel-efficient, energy-saving, safe and reliable.

Durable and long-lasting:Steel structure components, with solid and reliable material selection, have a long service life.

Convenient and efficient:Low power, high efficiency, low failure, and easy maintenance.

The gasoline tree planting and digging machine, equipped with a high reduction ratio transmission gearbox and specially designed drilling tools, is suitable for afforestation or fruit tree planting on slopes, sandy areas, and hard soil below 20 degrees, as well as greening and planting trees on both sides of roads. Applied to seedling planting and digging holes, as well as burying piles and digging holes in livestock fences; Planting grape and pepper by burying stakes and digging holes; Fertilization and digging holes for fruit trees and trees is an ideal, effective, and economical equipment.

Fertilization of various fruit trees
Planting various types of trees
- Burial of greenhouse columns
- Grape, kiwi, banana and other crop supports, windproof frame holes
Winter ice fishing holes and winter aquaculture ventilation holes
- Fence pillar holes for highways, railways, etc

Design of safety handrails

The dual handle design of this device ensures the safety of users during use, guarantees smooth operation of machinery, and makes mechanical work more efficient

Split design of power gear

The gasoline engine and gearbox adopt a split design with clutch linkage, effectively increasing torque and reducing the probability of gear damage.

Spiral double blade design

This product's drill bit adopts a spiral double blade design, greatly reducing working time, and excavating faster and cleaner

You can find the product model you want here

52cc: Engine Type: Single Cylinder, Air Cooled, Two Stroke Displacement: 52cc Power: 1.9kw Starting Method: Hand Pull Backwash Fuel Method: Blended Fuel Ratio: (Gasoline+Two Stroke Engine Oil) 20:1 Weight: 13kg Transmission Method: Gear Two stage Transmission Fuel Tank Volume: 1200ml

82cc: Engine Type: Single Cylinder, Air Cooled, Two Stroke Displacement: 82cc Power: 3kw Starting Method: Hand Pull Backwash Fuel Method: Blended Fuel Ratio: (Gasoline+Two Stroke Engine Oil) 20:1 Weight: 18kg Transmission Method: Gear Two stage Transmission Fuel Tank Volume: 1000ml

159cc: Engine type: single cylinder, air-cooled, four stroke Displacement: 159cc Power: 4kw Starting method: manual recoil Fuel method: separate split fuel: 92 # gasoline Weight: 28kg Transmission method: gear two-stage variable transmission Fuel tank volume: 950ml

173cc: Engine type: single cylinder, air-cooled, four stroke Displacement: 173cc Power: 6.3kw Starting method: manual recoil Fuel method: separate split type Fuel: 92 # Gasoline Weight: 32kg Transmission method: gear two-stage variable transmission Fuel tank volume: 950ml

225cc: Engine Type: Single Cylinder, Air Cooled, Four Stroke Displacement: 225cc Power: 8.3kw Starting Method: Hand Pull Backwash Fuel Method: Separate Split Fuel: 92 # Gasoline Weight: 38kg Transmission Method: Gear Two stage Transmission Fuel Tank Volume: 950ml
