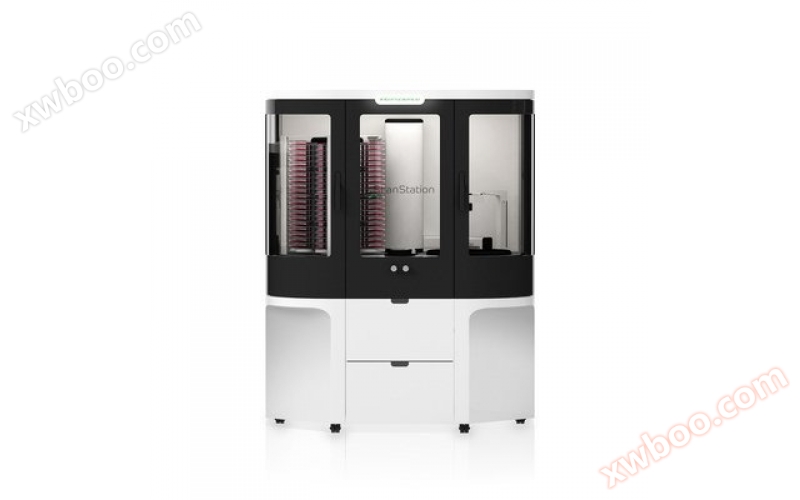

ScanStation 200

Start the transformation of real-time monitoring!

FORUM LABO 2017 Public Award FORUM LABO 2017, Paris, France Innovation Award (Productivity/R.O.I Category)	France La Montagne 2017 Innovation Company Award	2018 Design in Paris, France Observer Label Award

1. Incubator&Automatic Colony Counter
ScanStation:
1 incubator capable of holding 200 culture dishes
+1 robotic arm transfers culture dish
+1 fully automatic ultra high definition colony counter

2. Working principle
Count 200 culture dishes every 30 minutes or every hour, and once colonies appear, they will be detected and counted.

3. Counting results
earlierPerform colony counting during the early stages of colony growth. The time for counting results is three times earlier than traditional methods, such as shortening from 24 hours to 8 hours.
fasterSimultaneously process 200 culture dishes: automatically count colonies while culturing
more accurateColonies have already been detected before contiguous or overlapping, making it easy to distinguish between text and impurities.

4. Real time monitoring of bacterial growth

expected resultAutomatically count colonies while cultivating, saving time and allowing for earlier confirmation of production batches.
real-time controlObserve the hourly bacterial growth during and after the cultivation period in the video through functions such as zoom, pause, and playback.
zoomZoom directly on the image to check the status of the colonies and further analyze their growth.

Complete traceabilityThroughout the entire cultivation process, data will be saved. Can be used to verify the final results.

5. Innovative features - patent application in progress
Robot ArchitectureThe incubator includes a robot architecture with 200 dish conveyors; A super stable robotic arm, more precise and durable; There is also an ultra high definition automatic colony counter.
Pressure sensitive gripperHigh precision pressure-sensitive gripper, suitable for right or inverted culture dishes, taken off from the conveyor belt, captured and moved to the image acquisition area every 30 minutes or 1 hour.
Peltier effect in incubatorThe Peltier module can achieve temperature regulation of ± 1 ° C, low energy consumption, and no fluid or compressor.
Ultra high definition imageWhite LED lights and a 5-megapixel ultra high definition camera can accurately detect and count bacterial growth in the early stages.
Touch screen displayEasy to operate through software, real-time viewing of culture dish data.
Multi batch processingLoading culture dishes can be done at the beginning or during the cultivation process. During this process, the culture dish can be added at any time.

Traceability and high performance

certificate

Interdisciplinary instrumentsfrominterlabThe company manufactures and passes throughISO9001authentication.
