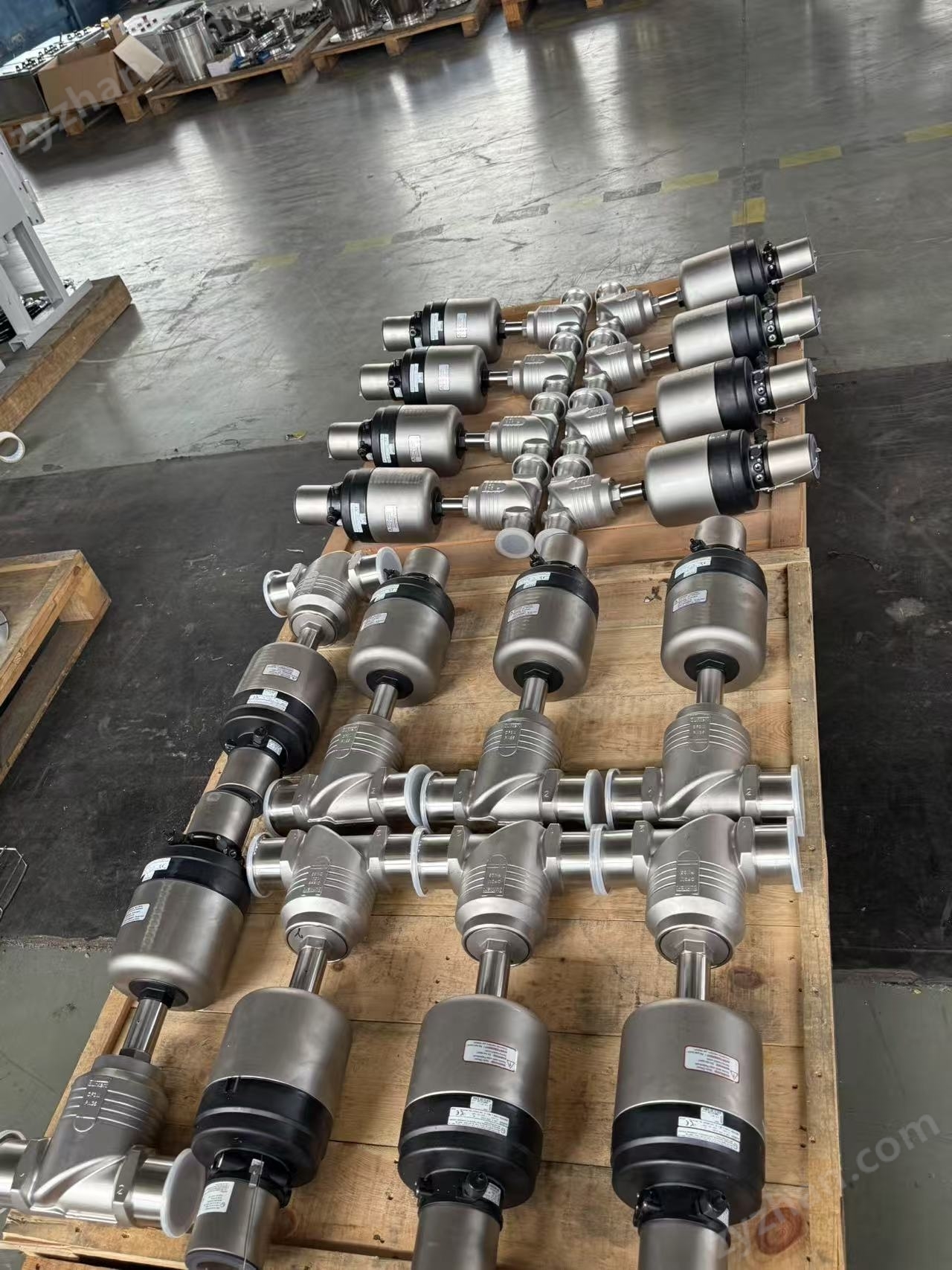

Supply Baode 8802 type globe type regulating valve 8694 control head steam

NegotiableUpdate on 01/08

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

The design of the 8802 continuous Element system series allows for easy integration of digital automation equipment in all expansion stages. From simple Basic locators to powerful locators with optional fieldbus interfaces, to fully functional digital process controllers that can be operated through backlit graphic displays. The highly integrated control valve and automation unit system are characterized by a compact and smooth design, integrated with control air ducts, protection level IP65/67/NEMA 4X, and high chemical resistance.

Product Details

Shanghai Donggeng Equipment Engineering Technology Co., Ltd. is a long-term authorized service provider of German company BURKERT, responsible for the sales of Burkert products in China and providing technical services. Burkert's products include solenoid valves, process control valves, instrumentation, micro flow valves, and pneumatic products, which are widely used in water treatment, pharmaceutical and chemical industries, food and beverage production, gas applications, medical devices, and laboratory equipment. Burkert is a global leader in Fluid Control Systems, and B ü rkert is not only a fluid technology developer, but also an expert in mechanical production, pump technology, coil production, plastic technology, and welding technology. And they are also tool manufacturers, software and hardware developers, power distribution and equipment manufacturers, project managers, and so on. In addition, Burkert is also responsible for global licensing. Customized services for customers are not only about developing individual products, but also include their related production processes and logistics operations. Customize personalized solutions for customers

Product Features

Product features

•Integrated automation using technology

•Long service life

•Excellent adjustment quality, especially for tilt valves and straight seat valves

•Excellent control performance, especially for angle seat valves and globe valves

•......

•......

name	Technical Specifications
The following is a detailed introduction about the 8802 regulating valve: # # # Basic Structure - * * Valve Body * : It is usually made of stainless steel material, which has good corrosion resistance and strength, and can adapt to various working environments and media. - * Executive mechanism * : Generally a pneumatic actuator that uses compressed air as a power source and has the advantages of simple structure and fast response speed. -Positioner: Positioners such as 8692, 8693, 8694, etc. can accurately control the opening of valves and achieve precise adjustment of fluid flow rate, pressure and other parameters. ###The working principle control system outputs a signal according to the process requirements, and the locator converts the input signal into mechanical displacement, driving the valve core to move up and down inside the valve seat, changing the cross-sectional area of the fluid channel, thereby achieving the adjustment of fluid flow rate, pressure, temperature and other parameters. ###Technical Parameters - * Caliber * : Common specifications include DN20, DN50, etc., which can meet different flow requirements. - * Medium * : Suitable for neutral media such as compressed air, water, hydraulic oil, etc. -Medium temperature: generally between -10 ℃ and+185 ℃, with slight differences among different models. - * Environmental temperature * : up to+55 ℃. - * Load cycle * : Can work continuously for 100% and adapt to the requirements of long-term stable operation. -Power supply voltage: usually 24V DC. -Control signal: Common signals include 4-20mA current signal, 0-10V or 0-5V voltage signal, etc., which can be compatible with various control systems. -Protection level: up to IP65/67/NEMA 4X, with good dust, water, and corrosion resistance performance. ###Product Features - * Integrated Design * : Highly integrated regulating valve and automation unit system, compact and smooth design, integrated with control air ducts, reducing installation space and pipeline connections, improving system reliability and stability. -High Control Accuracy: Utilizing advanced locator technology, it can precisely control the opening of valves, achieve high-precision adjustment of fluid parameters, and meet the control requirements of various complex processes. - * Multiple optional functions * : From simple Basic locators to powerful locators with optional fieldbus interfaces, to fully functional digital process controllers that can be operated through backlit graphic displays, users can choose the appropriate functional configuration according to their actual needs. -High chemical resistance: The valve body and seals are made of stainless steel and other materials, which have good chemical corrosion resistance and can be used for controlling various corrosive media. -Easy to install: It can be installed as needed, preferably with the actuator facing upwards. The installation orientation is flexible, and multiple port connection forms are provided for easy connection with pipeline systems. ###Application Fields - Food and Beverage Industry: Used to control the flow rate of various fluid materials, such as milk, juice, syrup, etc., to ensure the stability of product quality. - * Pharmaceutical industry * : In the pharmaceutical production process, precise control of the flow rate and pressure of various pharmaceutical liquids ensures the accuracy and consistency of drug production, while meeting hygiene and cleanliness requirements. -Chemical industry: Widely used in the transportation of chemical raw materials, fluid control in chemical reaction processes, etc., it can accurately adjust the flow rate of various chemical substances, ensuring the safe and stable operation of chemical production. - * Water treatment industry * *: It is used in the sewage treatment system to control the flow direction, flow and treatment process of sewage, and adjust the flow and pressure of water in the water supply system to ensure the stability of water quality and supply. -Textile printing and dyeing industry: In the printing and dyeing process, controlling the flow of dyes, auxiliaries and other fluids to achieve precise dyeing process control, improve printing and dyeing quality and product consistency.medium temperature	Reference materials
ambient temperature	Reference materials
Valve body material	Reference materials
sealing material	Reference materials
Material of actuator	Reference materials
Control medium	Reference materials
connection interface	Reference materials
