TPU crystallization stirring dehumidification dryer

Names

-----------------------------------------------------------------------------------------------------------------------------
Application scope
The OCR series closed cycle drying and crystallization machine is used for continuous crystallization of amorphous materials, crystallizing PET raw materials or recycled materials that have not yet crystallized into crystalline raw materials that can be directly dehumidified and dried. The system includes a heating device, insulation material bucket, and mixing components. When PET raw materials or crushed materials that have not undergone crystallization enter the hopper, crystallization treatment is carried out while stirring to prevent raw material agglomeration and reduce product defect rate. The crystallized plastic can be transported from the bottom of the hopper to the storage bin or directly to the drying bin for drying and use.


-----------------------------------------------------------------------------------------------------------------------------
Working principle
After starting the suction process, the electric hot air blower starts and the raw materials begin to heat up. When the raw materials pile up above the level switch position, the main control box stops outputting signals to the suction machine. Heating the raw materials for a period of time, when the temperature sensing probe of the material barrel reaches the set crystallization temperature value, the raw materials are sent out by the feeding device; At this point, as the material level in the hopper gradually decreases, the suction device begins to replenish the uncrystallized raw materials, achieving continuous crystallization operation.

-----------------------------------------------------------------------------------------------------------------------------

Product Features

1. Simplify and improve the drying efficiency of raw materials;

2. The constant speed mixing design prevents the uncrystallized plastic from sticking and forming lumps during the crystallization process temperature;

3. Raw material drying operations can be carried out at high temperatures, greatly improving work efficiency;

4. Equipped with a standard cyclone dust collector, it is applied in places with high dust levels, which can effectively reduce the load on the filter bag, extend the service life of the filter bag, and reduce the number of cleaning times for the filter bag;

5. There is a dual filtering protection device that can reduce accidents caused by human or mechanical failures;

6. Equipped with a rotary discharge valve with good sealing to ensure precise and stable output of crystalline raw materials;

7. Equipped with level switch, accurate level detection, safe and reliable machine operation;

8. Equipped with a negative pressure detector, it can instantly detect the ventilation status of the filter. When the load exceeds the set value, it will promptly sound an alarm and prompt for cleaning to avoid filter blockage.

-----------------------------------------------------------------------------------------------------------------------------

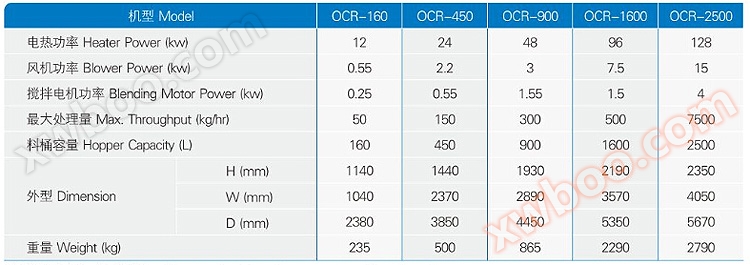

Technical Parameter

-----------------------------------------------------------------------------------------------------------------------------
characteristic
→PET resin raw materials are widely used in high polymer products such as textile fibers, food and pharmaceutical packaging materials, magnetic tape films, industrial silk, and high-temperature resistant tableware. Its moisture content is relatively high, and during high-temperature extrusion melting, defects such as bubbles, cracks, and yellowing of color may occur.
→Due to the need for special drying treatment and the rapid development in the packaging field, Aoshide Machinery provides reliable dehumidification and drying technology support for PET injection molding equipment and product manufacturers, widely used in the crystallization, drying, and complete dehumidification and drying crystallization process equipment of PET raw materials.
→Oshide Machinery's advanced technology in the field of PET forming system auxiliary equipment is suitable for various application areas, including bottle making, embryo making, thermoforming film and sheet production, packaging tape, industrial silk production, pipe production, waste recycling production, and other similar fields.
