Transmission light microscope

NegotiableUpdate on 01/06

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

This is a high-quality inverted machine vision microscope that is highly suitable for machine integration, pathological section scanning, microfluidics, flow cytometry, and more.

Product Details

Compact for biomedical applicationsTransmission light microscopeIM-profile M

Microscope as a visual sensor. Our IM ultra small microscope has a width of only 40mm and uses GigE or USB 3.1 standard interfaces to provide monochrome or color microscopes with 5x, 10x, or 20x magnification.

This is a high-quality inverted machine vision microscope that is highly suitable for machine integration, pathological section scanning, microfluidics, flow cytometry, and more.

Use the free OptoViewer provided in the software package - you can choose the software integration that suits your application.

Transmission light digital microscope for transparent samples
A profilometer equipped with a telecentric optical system for process integrated contour measurement

透射光显微镜

Digital microscope IM profile M for research and development

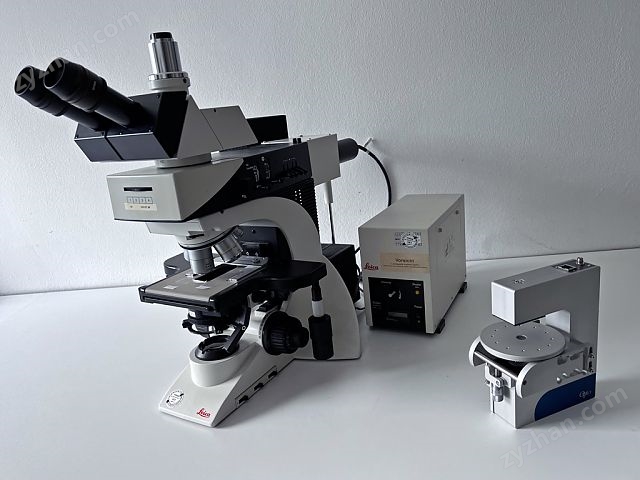

Compared to standard microscopes, the difference in size is very significant.

When displayed on the monitor, which is the camera image, there is no difference in quality.

IM profile M only has a fixed magnification, but the fixed optical parameters ensure higher image quality reproducibility and measurement repeatability.

In addition, two imaging modules can be provided based on the budget of large standard microscopes - these two modules have been optimized for corresponding detection tasks.

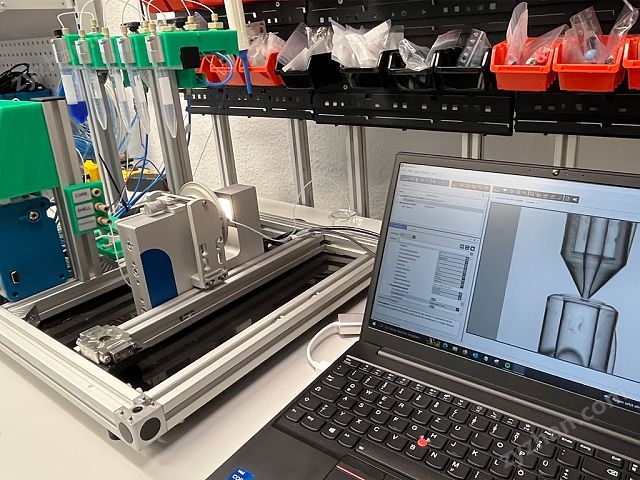

IM profile M as a flow measurement module in microfluidics

The IM profile M transmission light digital microscope in the optical imaging module series is very suitable for microfluidic experiments.

By using the accompanying OptoViewer software, it is possible to automatically detect and track individual cells or droplets, measure their velocity, and determine or read their volume online.

Plug and play, embedded, integrated.

20x digital microscope IM profile M for automatic blood analysis

The color fidelity and 20x magnification of IM profile M are highly suitable for automated blood analysis systems.

By integrating transmitted light and adapting the condenser, we can achieve the best contrast for detailed imaging of microorganisms.

Based on the quantity and morphology of red blood cells, white blood cells, and platelets present, conclusions can be drawn regarding iron deficiency and leukemia.

IM profile M as part of the chip laboratory solution

This compact and robust design can be integrated into the entire system in a space saving manner, such as the chip laboratory solution here.

Based on the droplet separation device with Secoya RayDrop module and Fluigent pump device, IM profile M (5x magnification) was integrated into a complete microfluidic experiment as a recording tool with counting function.
