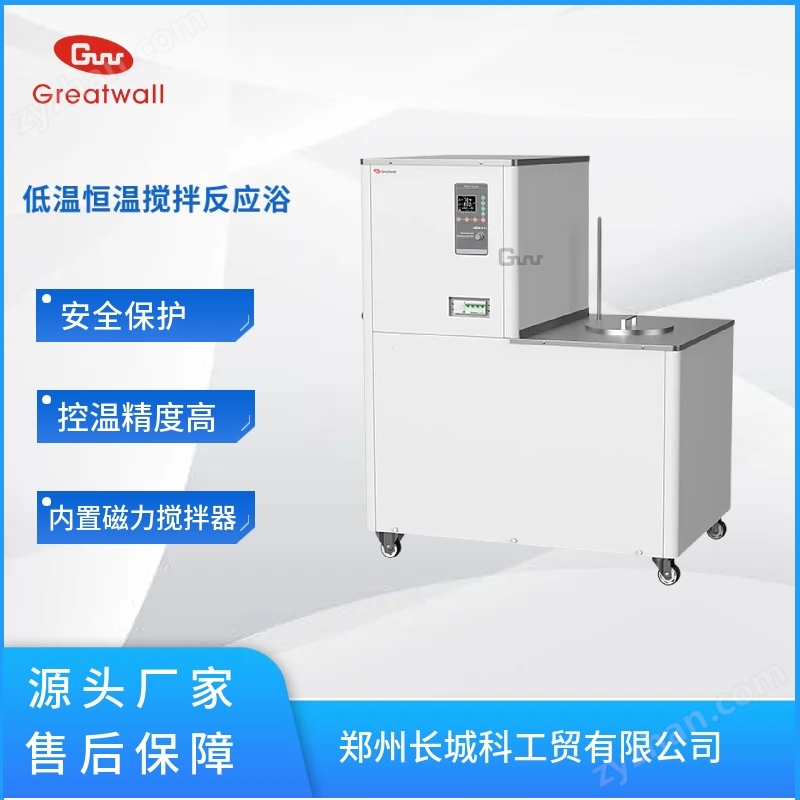

Ultra low temperature constant temperature stirring reaction bath
NegotiableUpdate on 02/11
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
The ultra-low temperature constant temperature stirring reaction bath provides a constant temperature cold source to the outside or is used as a constant temperature bath, suitable for chemical, biological, physical testing and other industry laboratories, as well as university and research institute laboratories. It is used to cool and heat reaction vessels such as flasks and test tubes, and can also provide cold and heat sources to other equipment.
Product Details
Ultra low temperature constant temperature stirring reaction bathSuitable for chemical, biological, physical testing and other industry laboratories, as well as university and research institute laboratories, used for cooling, heating reaction vessels such as flasks and test tubes.
● Temperature can reach-120℃；
Single stage compression separation technology, with fewer welding points, reliable system, and stable operation;
The built-in magnetic stirrer can drive the agitator in the tank and the agitator in the reaction vessel to rotate, maintaining uniform temperature of the sample;
Configure a fixed bracket for easy installation of burettes, external sensors, etc.
Ultra low temperature constant temperature stirring reaction bathMain technical parameters
name |
Ultra low temperature stirring reaction bath |
|
model |
DHJF-1220 |
|
Storage tank capacity（L） |
20 |
|
temperature stability(℃） |
±2 |
|
Temperature range for use(℃) |
-120～-60 |
|
safety protection |
Delay, overcurrent, overheating, phase sequence protection |
|
Total machine power(W) |
4000 |
|
display screen |
LCD screen display, button operation |
|
refrigerant |
mixed refrigerant |
|
refrigeration capacity(W) |
-60℃ |
600 |
-80℃ |
480 |
|
-100℃ |
180 |
|
-120℃ |
40 |
|
circulation pump |
power(W) |
100 |
traffic(L/min) |
20 |
|
pressure(bar) |
0.4 |
|
Z optimal ambient temperature(℃) |
5～35 |
|
Z optimal environmental humidity |
≤70% |
|
power supply |
3～，380V，50HZ |
|
External loop interface size |
1/2ʺ |
|
Opening size（mm） |
Ø280 |
|
Size of storage tank（mm） |
Ø300×300 |
|
Z can accommodate a large volume of flask（ml） |
5000 |
|
Material of storage tank |
304 |
|
The refrigeration host occupies space(mm) |
810W×1160D×1310H |
|
Weight（kg） |
190 |
|
Note: Temperature of refrigerant<-90℃The loop function is disabled. | ||
