203KA quick installation peristaltic pump ≤ 895mL/min

Motor type	DC planetary motor		DC motor			stepping motor
motor speed	150rpm	300rpm	135rpm	166rpm		0～300rpm
15#（4.8×2.4）	225	485	220	285		0~485
24#（6.4×2.4）	400	870	380	470		0~895
Attention	The flow data in the above table was measured using clean water at room temperature in Jieheng Laboratory and is for reference only 2. The material of the hose, the tolerance of the hose size, the viscosity of the conveying medium, the suction and head can all affect the flow rate 3. When transporting different liquids, it is necessary to consider the compatibility between the liquid and the hose. Please provide specific detailsclickreference resources:Chemical Compatibility Table 4. The lifespan requirements for hoses vary depending on the application scenario. Please refer to the specific requirementsclickreference resources:Hose life table

Detergent delivery: such as washing machines, dishwashers	Analytical instruments: Sample injection for analytical testing instruments
Printing equipment: Ink conveying	Food machinery: such as beverage machines
Kitchen Equipment Warewashing Equipment	Laundry Equipment

Jieheng Company's 203K OEM upgraded version has been completely upgraded, with a conveying flow rate of up to 875ml/min and multiple technological improvements in design
Suitable for installing 15 # and 24 # pump tubes, and the pump tubes are completely fixed on the pump head by joints to ensure the reproducibility of flow rate
The pump body has been further optimized based on 203K, with no dead corners and a smooth surface that is easy to clean
The pump casing and impeller are made of high-performance materials, with excellent structural performance and high reliability

Project	203KA/ZLX		203KA/ZL			203KA/BT
speed range	150r、300rpm		135r、166rpm			0.1～300rpm

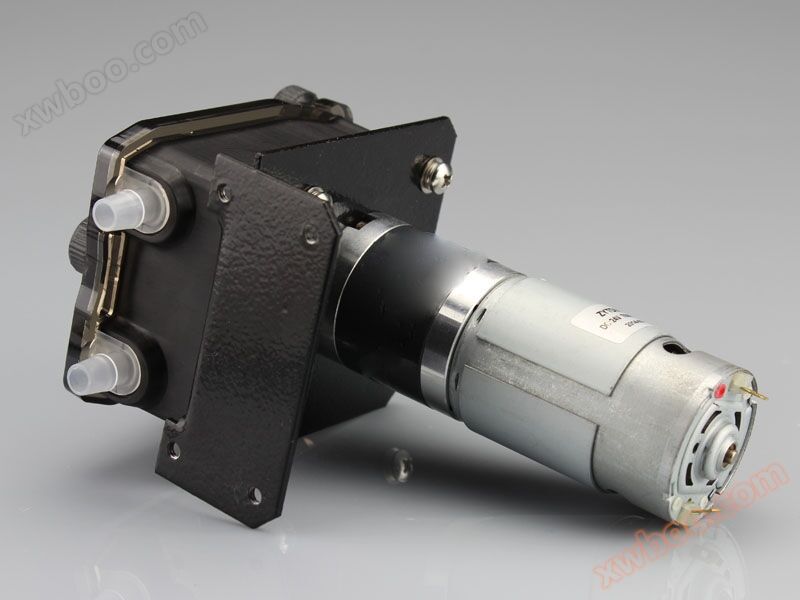

Product images
Card tube model	Can be assembled with inner diameters of 15 # and 24 #.
Flow range	≤870ml/min		≤470ml/min			≤895ml/min
MOTOR	≤36W		≤36W			≤36W
Motor Model	DC planetary gear reduction motor		Ordinary DC deceleration motor			57 type stepper motor
Driver Description	Can be equipped with a DC speed control board for fine adjustment of speed (using pulse width speed regulation method)					The driver is optional and can be selected from any speed control board of Jieheng
Optional voltage	24V (optional 12V)		24V (optional 12V)			12～36V
Product weight	552g		808g			837g
