304 stainless steel buckle chuck joint

Mainly used in food grade and hygiene grade work environments, the joint surface is subjected to high-end precision polishing treatment, and the material is all made of acid and alkali resistant stainless steel. The matching seal is made of food grade silicone rubber, which meets the requirements of food hygiene standards. The joint is mainly suitable for industries such as beverages, beer, dairy, pharmaceuticals, and biology.

Production standard: DIN 11851, material: stainless steel SS304, SS316, SS316L, connection method: welding type, pipe tail type

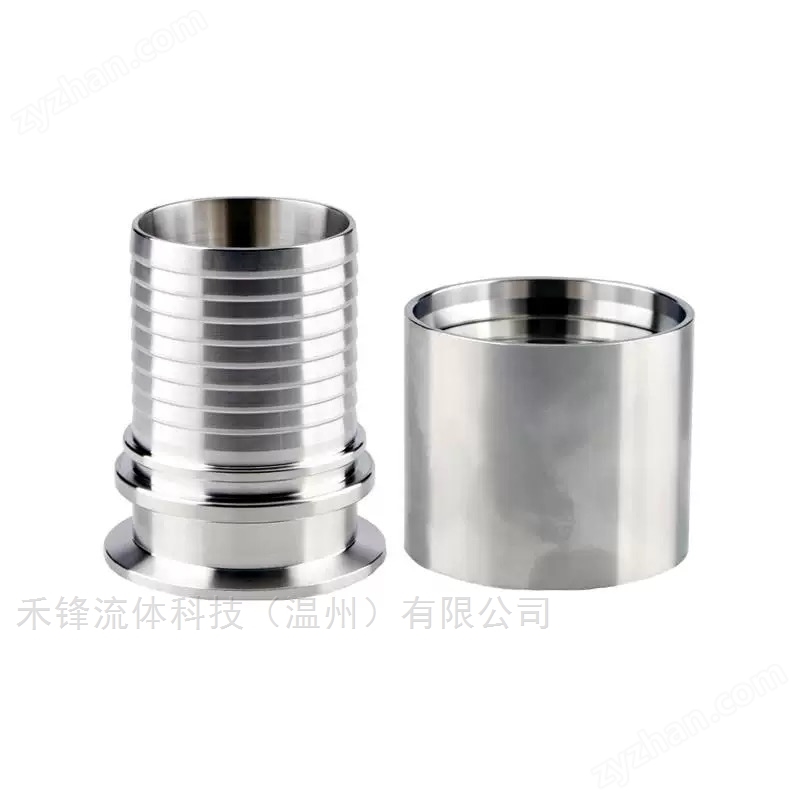

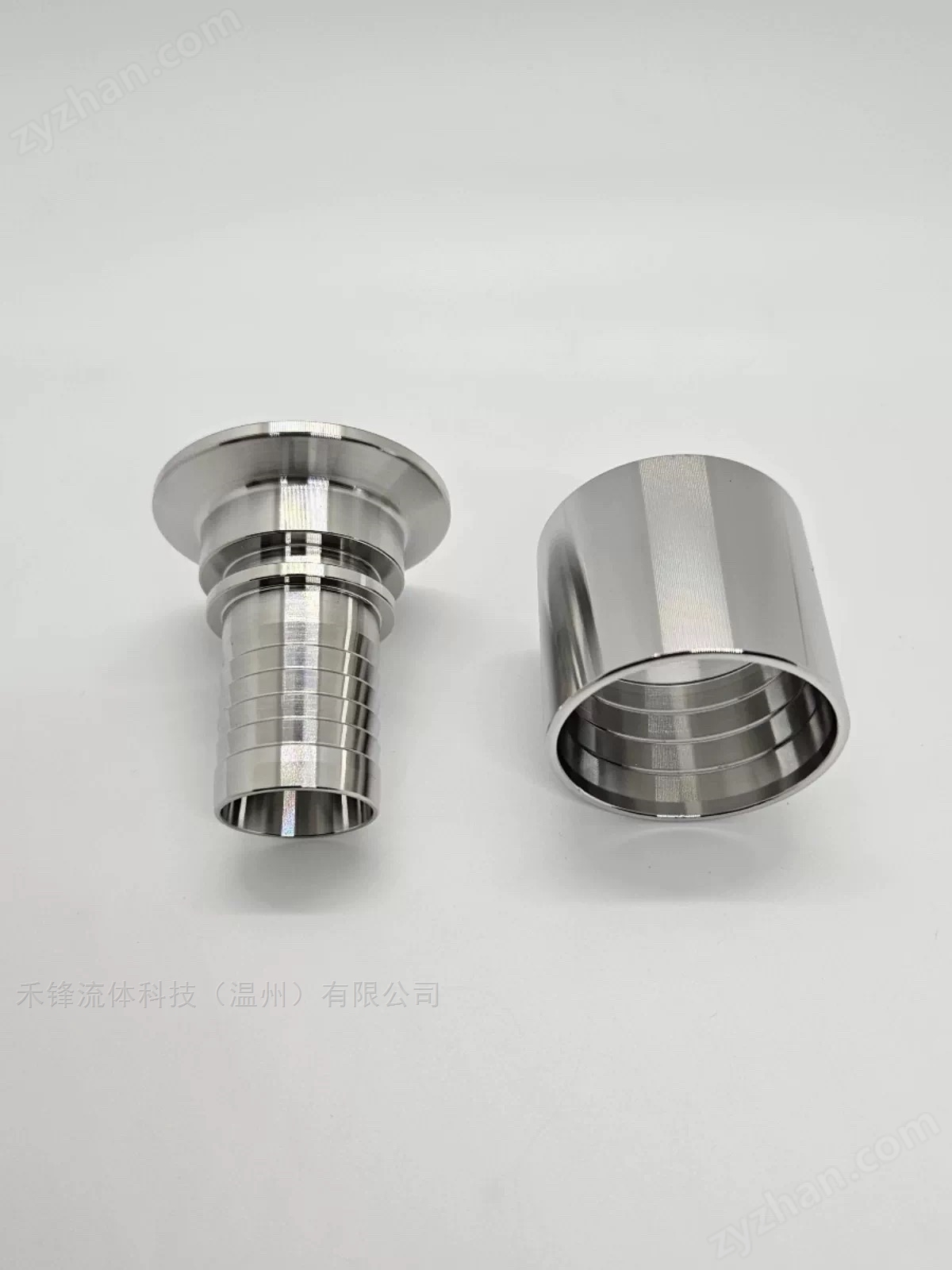

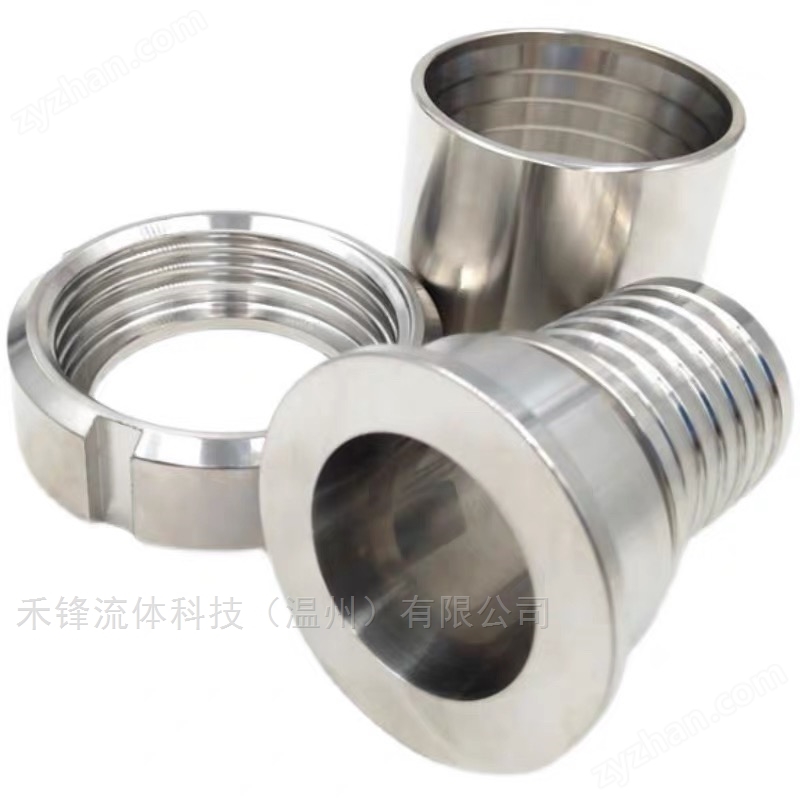

Stainless steel DIN chuck joint TC-DIN

Quick fit fittings, also known as chuck fittings, cup mouth fittings, TC fittings, can achieve a mechanical polishing roughness of up to 0.4 μ m and electrolytic polishing roughness of up to 0.2 μ m.
There are also the following standards and materials to choose from:
1. The chuck can provide multiple standards such as 3A, BPE, SMS, DIN, ISO, etc;
2. The material of the joint body can be selected from SS304, SS316 and other materials;
