Campus meteorological station automatic observation: It is equipped with various X-ray sensors that can continuously collect meteorological data such as wind speed, direction, temperature, humidity, rainfall, etc. Without frequent manual operation, data can be accurately and real-time transmitted to the display terminal. Students only need to tap the screen to clearly view various weather information.

Product Details

　　Automatic observation by campus meteorological stationIt is equipped with various types of sensors that can automatically collect meteorological data such as wind speed, direction, temperature, humidity, and rainfall without interruption. Without frequent manual operation, data can be accurately and real-time transmitted to the display terminal. Students only need to tap the screen to clearly view various weather information.

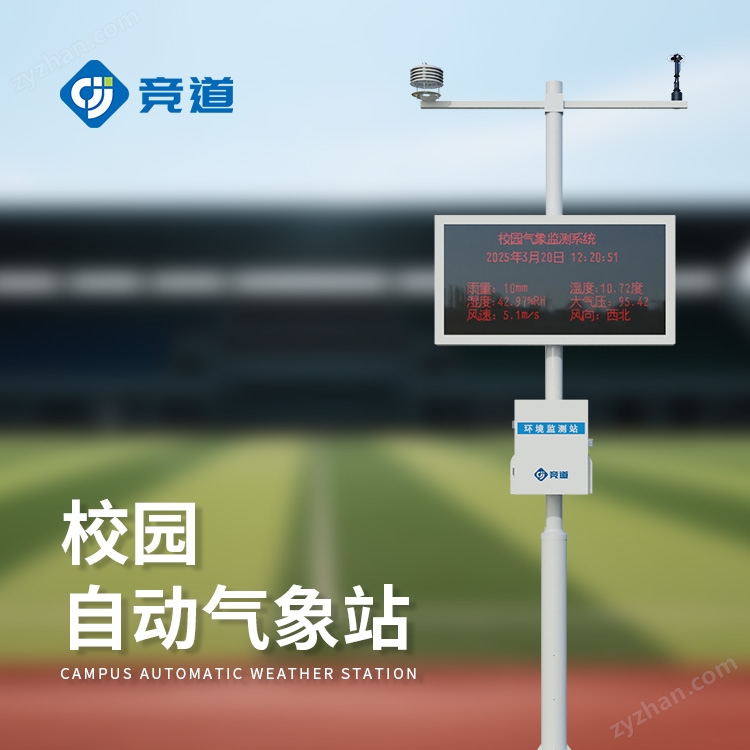

校园气象站自动观测

1Automatic observation by campus meteorological stationProduct Introduction

The XQ2 campus weather station is a highly integrated, low-power, quick to install, and easy to use scientific research grade weather station for teaching purposes.

2、 Product Features

1. Transmission method: GPRS, optional wired transmission;

2. Power supply mode: mains power;

3. Display mode: 1 meter * 0.5 meter LED screen;

4. Hardware components: sensors, pole supports, equipment boxes, LED screens, collectors, cloud platforms, fiberglass louver boxes (including wet and dry bulb thermometers)

3、 Technical parameters

1. Sensor parameters

name	measurement range	resolution	Accuracy
ambient temperature	-40～+80℃	0.01℃	±0.3℃（25℃）
relative humidity	0～100%RH	0.01%RH	±3%RH（20%~80%）
illuminance	0-157286LUX	1Lux	＜±3%
atmospheric pressure	300-1100hpa	0.1hPa	±0.25%
dew point temperature	0~+70℃	0.1℃	±1℃
soil temperature	-30～+70℃	0.01℃	±0.3（-10~70℃）
soil moisture	0～100%	0.1%	±3%
soil salinity	0~20000us/cm	1us/cm	± 3 (0~10000us/cm) ± 5% (full range)
Soil pH	0-14PH	0.01	±0.1PH
Wind direction	0-360 degrees	0.1 degrees	± 1 degree
Wind speed	0-60m/s	0.01m/s	±0.2m/s
Average wind speed ☆	0-60m/s	0.01m/s	±0.2m/s
Rainfall	≦4mm/min	0.2mm	≤±2%
Ultraviolet radiation	0～500W/ ㎡	0.01W/ ㎡	≤±3%
sunshine duration	0～6500h	0.1 h	＜0.2 h
Total photoelectric radiation	0-2000W/m2	1W/m2	＜±3%
Photosynthetically active radiation	0-2000W/m2	1W/m2	≤±5%
PM2.5	0-1000ug/m³	1ug/m³	± 10% (<500 micrograms)
PM10	0-1000ug/m³	1ug/m³	± 10% (<500 micrograms)
carbon monoxide	0-1000ppm	1PPM	±2PPM
sulfur dioxide	0-20PPM	0.1PPM	±1PPM
nitrogen dioxide	0-20PPM	0.1PPM	±1PPM
ozone	0-20PPM	0.1PPM	±1PPM
negative oxygen ion	0-100000 pieces/cm3	1 piece/cm3	Reading ± 10%; Ionic mobility ≤± 20%
oxygen content	0~25%Vol	0.1%	±3%FS
carbon dioxide	400-5000ppm	1PPM	± (50ppm+5% reading value)
evaporation	0-190mm	0.01mm	±1%
