Brazing tail

Product Details

Brazing tailMainly used in mining operations, high-quality alloy steel is selected as raw material and undergoes overall carburizing treatment. Using specialized CNC machining equipment and processing technology to ensure the quality of tail details, internal water holes, and side water holes. The brazing tail undergoes uniform heat treatment and is scientifically straightened using precision instruments to ensure its flatness and resistance to noise.

Brazing tailUsed to transfer energy between the drilling rig and the drill rod, one end is connected to the drilling rig and the other end is connected to the drill rod, so that the energy of the drilling rig can be transmitted to the drill bit and ultimately achieve the purpose of excavation.

Our brazing tail is suitable for: Atlas Copco, Furukawa, Ingersoll rand, TAMROCK, etc

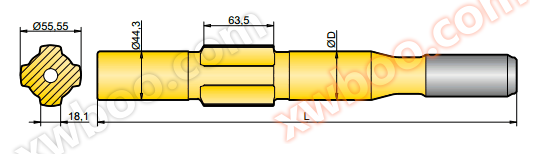

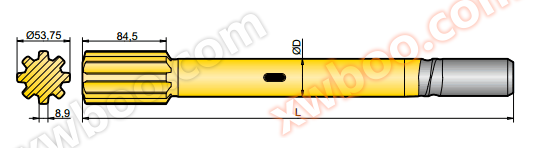

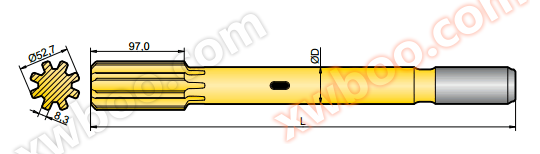

Rock drilling machine model	thread	Diameter D	Length L	weight	Water hole Diameter	code
Atlas Copco COP1440,COP1550, COP 1638 , COP 1838, COP 2238	R32(1 1/4') R38(1 1/2') T38(1 1/2')	38mm 38mm 38mm	525mm 525mm 525mm	4.2kg 4.3kg 4.3kg	— — —	AMDR323852-8 AMDR383852-8 AMDT383852-8
Atlas Copco BBC54,BBC120	R32(11/4') T38(11/2')	38mm 38mm	380mm 390mm	2.6kg 3.1kg	10mm 10 mm	AMDR323838-2 AMDT383839-2
Furukawa PD200	R32 1-1/4' T38 1-1/2' T38 1-1/2'	44 mm 44 mm 44 mm	330mm 380mm 446mm	3.0 kg 3.6 kg 4.0 kg	14 mm 14 mm 14 mm	FMDR324433-4 FMDT384438-4 FMDT384444-4
Furukawa HD 609	T38 1-1/2' T38 1-1/2' T45 1-3/4'	45mm 45mm 45 mm	620mm 690mm 620mm	6.0kg 6.3 kg 6.3 kg	— — —	FMDT384562-8 FMDT384569-8 FMDT454562-8
Sandvik / Tamrock HLX 5,HFX 5	R32 1-1/2 T38 1-1/2 T38 1-1/2 T45 1-3/4	45 mm 45 mm 45 mm 45 mm	500mm 500mm 575mm 575mm	5.2 kg 5.1kg 5.7 kg 6.2kg	— — — —	SMDR324550-10 SMDT384550-10 SMDT384557-10 SMDT454557-10
Montabert HC80, HC90, HC105, HC120	R32 1-1/4' R38 1/2' T38 1/2'	38mm 38mm 38mm	440mm 440mm 440mm	3.6kg 3.9kg 3.9kg	— — —	MMDR323844-8 MMDR383844-8 MMDT383844-8
Ingersoll Rand VL120, VL140	R32 1-1/2 R38 1-1/2 T38 1-1/2 T45 1-3/4	44mm 44mm 44mm 44mm	381mm 381mm 381mm 381mm	3.4kg 3.6kg 3.7kg 3.9kg		IMDR324438-4 IMDR384438-4 IMDT384438-4 IMDT454438-4

Jining Zhuoli Rock Drilling Equipment Co., Ltd. has always won customers' favor with its four point after-sales commitment.
1、 Product Quality Commitment:
1. The manufacturing and testing of the product have quality records and testing data.
2. For the testing of product performance, we sincerely invite users to personally inspect the entire process and performance of the product. After the product is confirmed to be qualified, it will be packed and shipped.
2、 Product price commitment:
1. In order to ensure the high reliability and progressiveness of the products, the materials of the system are selected from domestic or international high-quality brand-name products.
2. Under equal competitive conditions, our company sincerely offers you the most favorable price without sacrificing product technical performance or changing product components.
3、 Delivery time commitment:
1. Product delivery time: Try to meet user requirements as much as possible. If there are special requirements that need to be completed in advance, our company can organize special production and installation to strive to meet user needs. ① Technical Maintenance and Repair Manual
② Installation diagram
③ Outsourced parts manual and manufacturer
④ Provide a list of vulnerable parts and spare parts, and attach a certain amount of spare parts
4、 After sales service commitment:
1. Service tenet: fast, decisive, accurate, thoughtful
2. When delivering the product, our company provides the following documents to the user:;
3. Service objective: To achieve customer satisfaction through high-quality service
4. Service efficiency: If the equipment malfunctions during or outside the warranty period, the supplier will notify the maintenance personnel to arrive at the site within 24 hours and start the repair.
5. Service principle: The product warranty period is 12 months. During the warranty period, the supplier will provide free repair and replacement of parts damaged due to quality reasons. For parts damaged outside the warranty period, only the cost fee will be charged for the provided parts. For equipment damage caused by human factors of the purchaser, the supplier's repair or provided parts will be calculated at cost price.
