Shanghai Laole Machinery Equipment Co., Ltd
Circular 17 punch stainless steel fully automatic rotary tablet press
NegotiableUpdate on 01/10
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
01. Outsourced stainless steel, machine weight, motor 3KW, high pressure $r $n $r $n02. Continuous feeding, continuous sheet output, adjustable pressure and weight $r $n $r $n03. Mold can be customized and replaced
Product Details

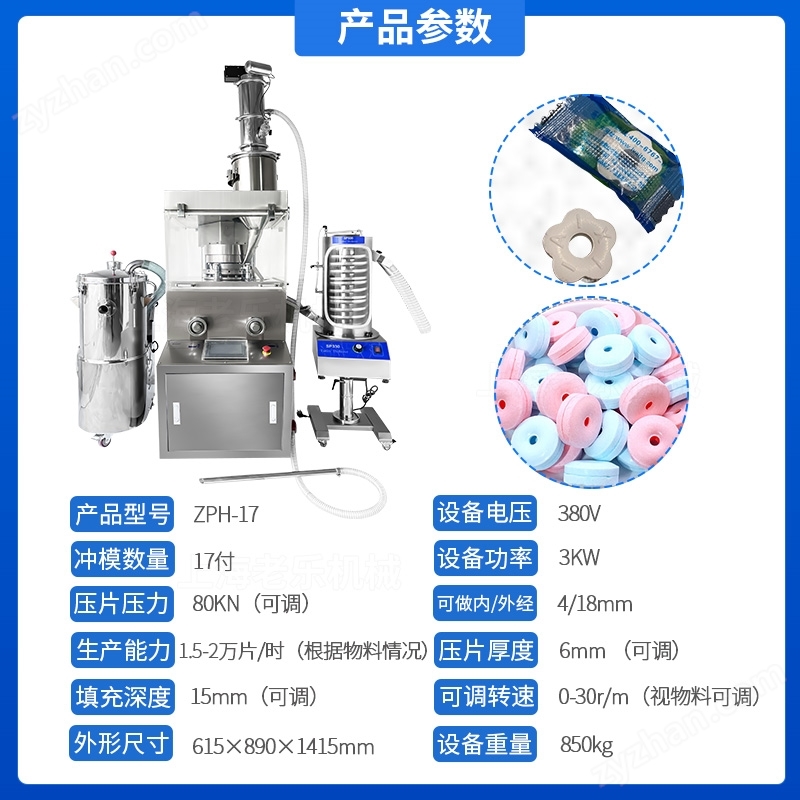

ring-shapedZPH-17rotate17Stainless steel stamping-parameter
01Outsourcing stainless steel, heavy machinery, motor3KWThe pressure is high
02Continuous feeding, continuous discharging, adjustable pressure and weight

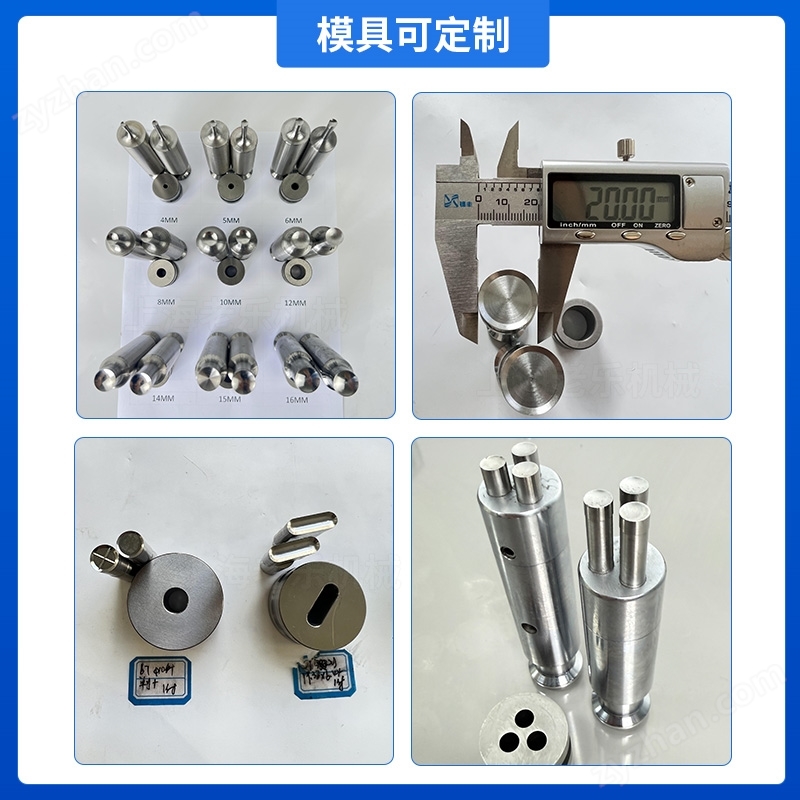

03The mold can be customized and replaced
Main technical parameters:
Device Model |
ZPH-579series |
ZPH-17series |
ZPH-31Dseries |
voltage/power |
220V/2.2kw |
380V/3KW |
380V/5.5KW |
Production (pieces)/Hour) |
6000-10000 |
15000-20000 |
70000-90000 |
Can be done inside/Outer diameter（mm） |
4/14 |
4/18 |
3/18 |
Adjustable pressure（KN） |
60 |
80 |
100/120 |
Adjustable thickness（mm） |
6 |
6 |
6 |
Adjustable speed（r/m）Adjustable according to the material |
0-30 |
0-30 |
0-30 |
Fill depth（mm） |
15 |
15 |
15 |
Dimensions (millimeters) |
680*460*1150 |
615×890×1415 |
1120*1000*1670 |
Host weight (kg) |
300 |
850 |
1550 |
Packaging weight（kg） |
320 |
900 |
1650 |
Packaging size（mm） |
950*650*1280 |
1010*955*1755 |
1180*1380*1990 |
