Dish block large rotating tablet press with multiple punch presses

NegotiableUpdate on 05/12

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

01. Large tablet press, wrapped in stainless steel, with a rotary table plated with $r $n $r $n02. Continuous feeding, can be equipped with feeding machines, vacuum cleaners and other accessories $r $n $r $n03. Can install circular and irregular molds, customizable molds, replaceable $r $n $r $n04. Can be modified as needed, double-layer sheets, thick sheets, dishwashing blocks, etc

Product Details

ZPD-15EA large piece can be used as a double-layer dishwasher block-parameter

01Large tablet press machine, wrapped in stainless steel, rotary table electroplated

02Continuous feeding, can be equipped with accessories such as feeding machine, vacuum cleaner, etc

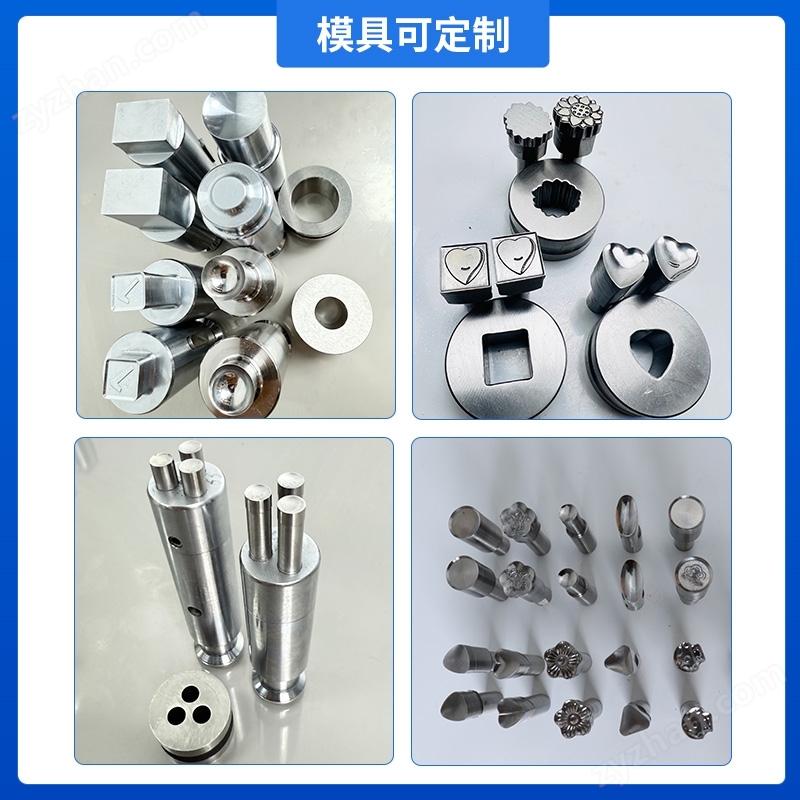

03Can install circular and irregular molds, molds can be customized and replaced

04Can be modified as needed, including double-layer, thick plate, dishwashing sink, etc

Main technical parameters:

working power supply：380V three-phase five wire

Equipment motor:7.5KW

Number of stamping dies:15-19 payment (customized purchase of molds as needed)

production capacity 3Ten thousand pieces/h（As usualCalculated at 25 revolutions per minute, the speed can be adjusted to 15-35 revolutions per minute）

Adjustable tablet pressure:80-120KN(Adjustable,upgrade to7.5KW）

Compression diameter range:40mm （Customizable in larger sizes as needed）

Adjustable tablet thickness:6-10Mm (thickness can be adjusted according to actual needs,Customizable thicker sizes）

Fill depth:25mm (can be customized deeper as needed)

equipmentWeight:1650kg

Overall dimensions:1120*1000*1670mm

Package dimensions:1180*1380*2070mm

Package weight:1750kg

Material:Cast iron, steelStainless steel (material contact, mold is made of mold steel, stainless steel hardness is not enough,Mold electroplating coating）

Optional supporting equipment:

Screening machine: Remove dust from the surface of tablets

vacuum cleanerConnect the vacuum interface on the turntable and clean the fine powder on the surface of the turntable

Feeding MachineAutomatic feeding, if not selected, manual feeding is required
