Compression biscuit rotary tablet press

1Machine Introduction

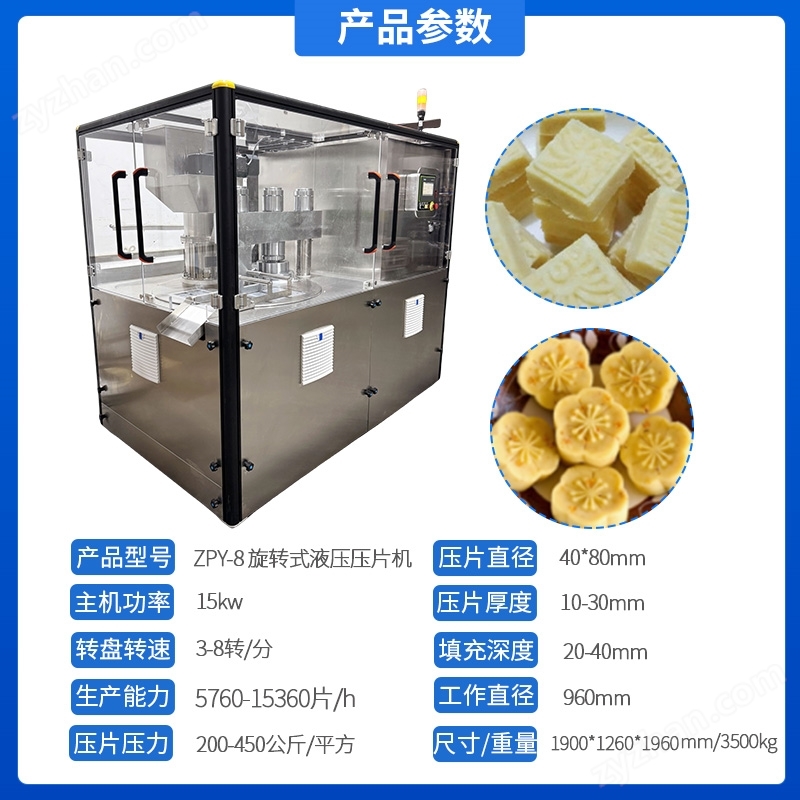

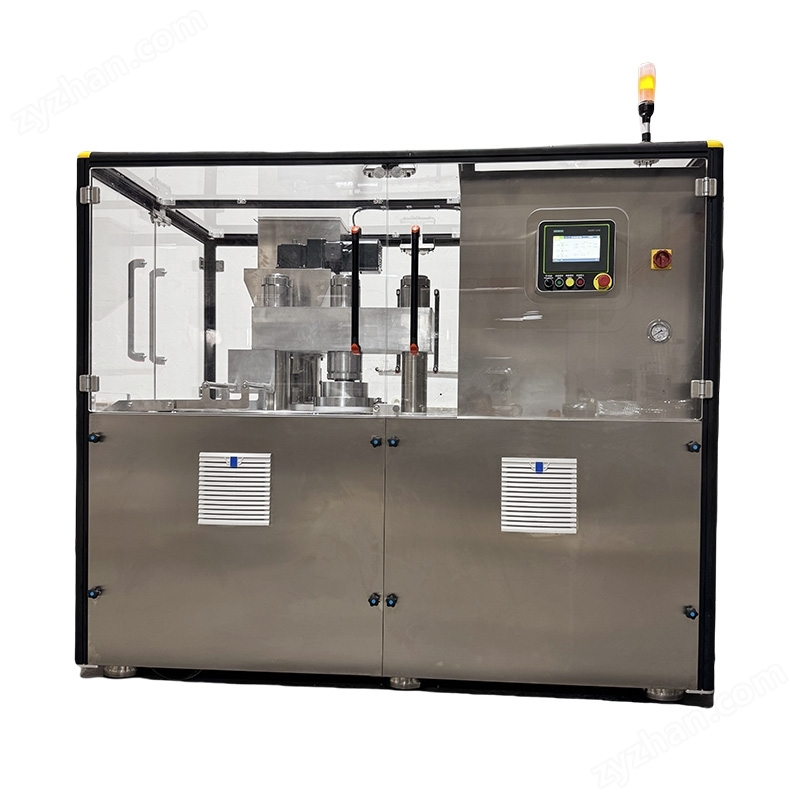

This machine is a servo driven rotary hydraulic tablet press, which can compress biscuits, chicken essence, Bean paste cake, etc. Products that can be pressed into the shape and size of molds by adding materials in powder or granular form. Especially for materials that are difficult to form with other forms of rotary presses, the high pressure and pressure holding function of hydraulic pressure are used to press and form materials that are not prone to rebound, and the size of the pressed products can reach40ｍｍ＊８０mm.

IIMain purpose and characteristics

Production process of compressed biscuits:1Biscuit baking2 smash3Mixing materials4 suppress5 Five parts including packaging. Among them, suppression is a key component of the production process. This machine consists of several parts such as servo drive, hydraulic compression, and touch screen control. This machine can achieve automatic feeding through optional selection, and can be automatically controlled by combining with the material handling machine, conveyor belt, and packaging equipment.
