Overview
Fingerprint module chip camera cutting machine
Product Details
Welcome to personalized customization
A professional customization team can provide personalized customization services according to the needs of customers. If you have such needs, please feel free to consult the customer service hotline: 13751030658.
Welcome to free sampling
Yunteng Laser can provide free sampling services. For technical consultation, process consultation, product consultation, and transportation consultation, please call directly!
Welcome to visit in person
Yunteng Laser's product quality is industry-leading. Welcome to visit and inspect the company on site! Multiple companies designated laser brands and witnessed together.
Industry Applications：
1. Fingerprint recognition chip cutting, camera cutting.
2. FPC soft board cutting and drilling.
3. PCB circuit board slicing and cutting.
Advantages of the machine:
1. Using nanosecond ultraviolet laser and cold light source, the laser cutting heat affected zone is particularly small as 10 μ m
2. The minimum focused spot can reach 10 μ m, suitable for micro cutting and drilling of any organic and inorganic material.
3. CCD visual pre scanning&automatic target positioning, maximum processing range of 500mm × 350mm, XY platform splicing accuracy of ≤± 5 μ m
4. Support multiple visual positioning features, such as cross, solid circle, hollow circle, L-shaped right angle edge, image feature points, etc.
5. The robot automatically loads and unloads materials, cuts IC fingerprint recognition chips, and takes 3 seconds per chip.
6. 6 years of research and design technology accumulation in laser microfabrication systems, stable performance, and no consumables.
Technical specifications and parameters
| serial number | project | Technical Specifications |
| Optical unit | ||
| 1 | Laser type | 355nm |
| 2 | cooling method | Constant temperature water cooling |
| 3 | laser power | 15W |
| 4 | Beam quality | M²<1.3 |
| 5 | Focusing method&Number of processing heads | Flat field focusing lens, single or double head optional |
| 6 | Minimum focused spot diameter | F10Mm |
| Laser processing performance | ||
| 7 | processing speed | Adjustable from 100 to 1500mm/s |
| 8 | Minimum collapse edge | 10Mm |
| 9 | Maximum processing material thickness | 1mm |
| 10 | Maximum processing size&Accuracy | 500mm×350mm, ±5μm |
| Mechanical unit | ||
| 11 | Machine tool structure | gantry type |
| 12 | Number of machine tool motion axes&Types | most8轴, X，Y, Z, & Θ 轴 |
| 13 | Maximum itinerary on the platform&Speed | 500mm×350mm,800mm/s |
| 14 | Repetitive accuracy of motion platform | ≤±1μm |
| 15 | Positioning accuracy of sports platform | ≤±3μm |
| Software control unit | ||
| 16 | Laser processing&Platform control | Strongsoft, Strongsmart |
| 17 | Processing file import format | Dxf, Plt, DWG, Gebar |
| 18 | CCDVisual positioning software | AISYS Vision |
| 19 | CCDVisual positioning accuracy | ≤±3μm |
| Electrical unit | ||
| 20 | PLC controller | Panasonic |
| 21 | vacuum system | vacuum generator |
| 22 | dust removal&Dust collection system | Centrifugal fan |
| Automation unit | ||
| 23 | Automatic loading and unloading system | XZAxis+movable loading and unloading platform |
| Advanced optional units | ||
| 24 | AOI Visual Inspection | 60Grain/min |
| 25 | Automatic cleaning and sorting | 60Grain/min |
| Installation environment | ||
| 26 | Whole machine power supply&voltage regulator power | 220V380V,5KW |
| 27 | Compressed air pressure | ≥0.6MPa |
| 28 | Cleanroom level | 10000 |
| 29 | Ground bearing capacity | 1.5T/m² |

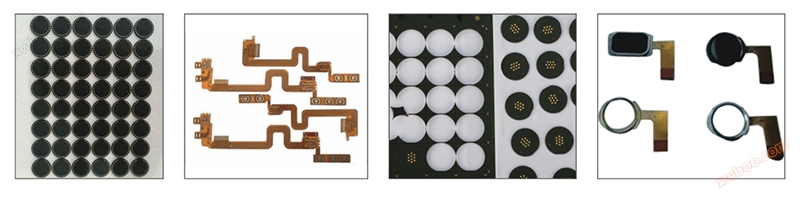

Cutting samples:
