Jenoptik Germany Jenoptik Opticline Axis Optical Measuring Instrument CS Series

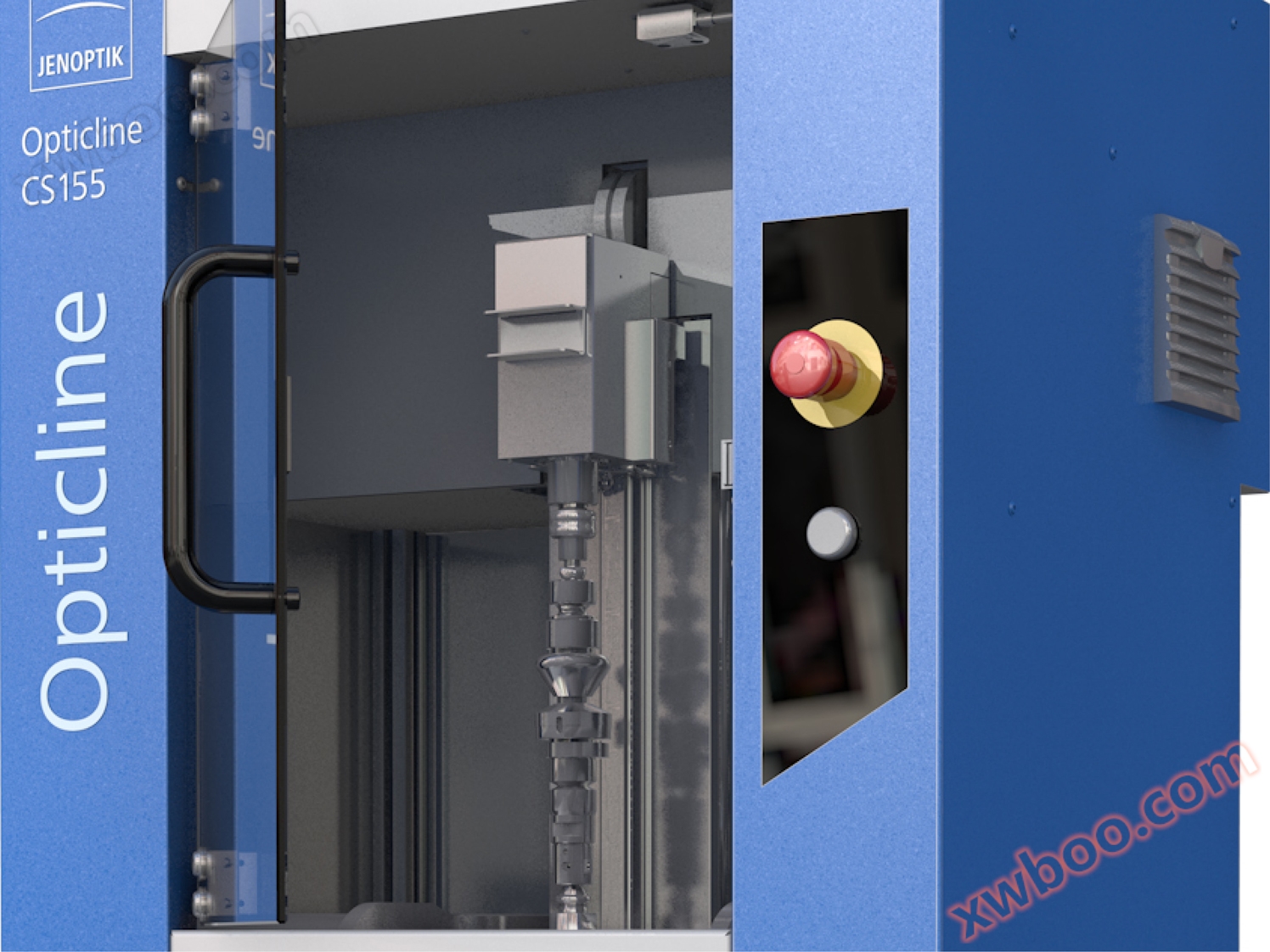

Opticline CS measurement system is an optical measuring instrument specifically designed for shaft components

ourOpticlineMeasurement solutions can be used to measure various types of shaft workpieces, with a variety of analysis options and numerous application areas. Using fast, non-contact optical measurement principles, the measurement is particularly flexible, reproducible, and accurate.

In 1986, Jena developed the first axial optical measuring machine, which passed30With years of technical accumulation, we have the most comprehensive solutions and specifications of equipment in the industry, and our customer base covers various industries.

CS series optical machines have successfully implemented solutions around the world

Turning parts and precision turning parts

Components in the automotive industry, such as camshafts, motor shafts, drivetrains, steering components, and turbochargers

Blanks and stamped parts in the field of metal processing

Fine workpieces in the field of medical technology, such as implants, bone screws and medical tools, syringes, etc

Nozzle and Spray Technology

Components in the bearing industry

Turbine and emergency generator set

Parts for the textile and printing industry

Applications in the Aerospace Field

Pneumatic and hydraulic components, such as pumps and valve cores

Various types of motors, such as those used for fans, household appliances, servo or drive systems

Industry applications:

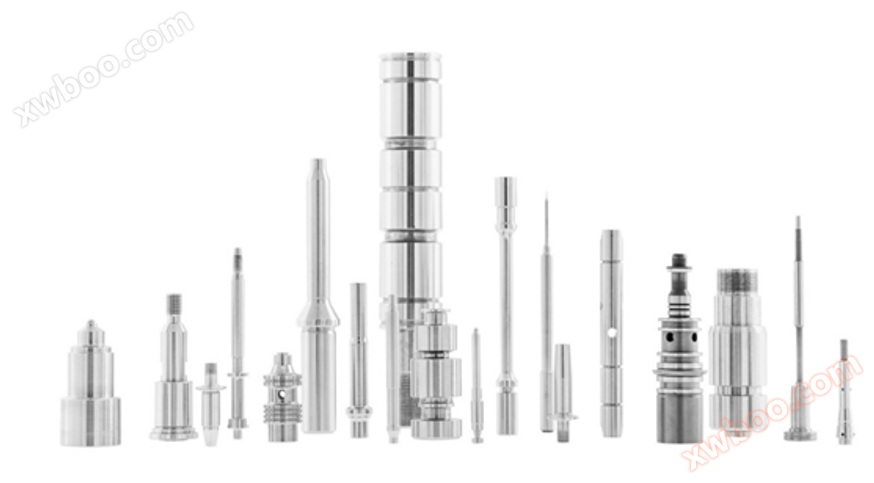

Turning of shaft components and other shaft components

Product advantages:

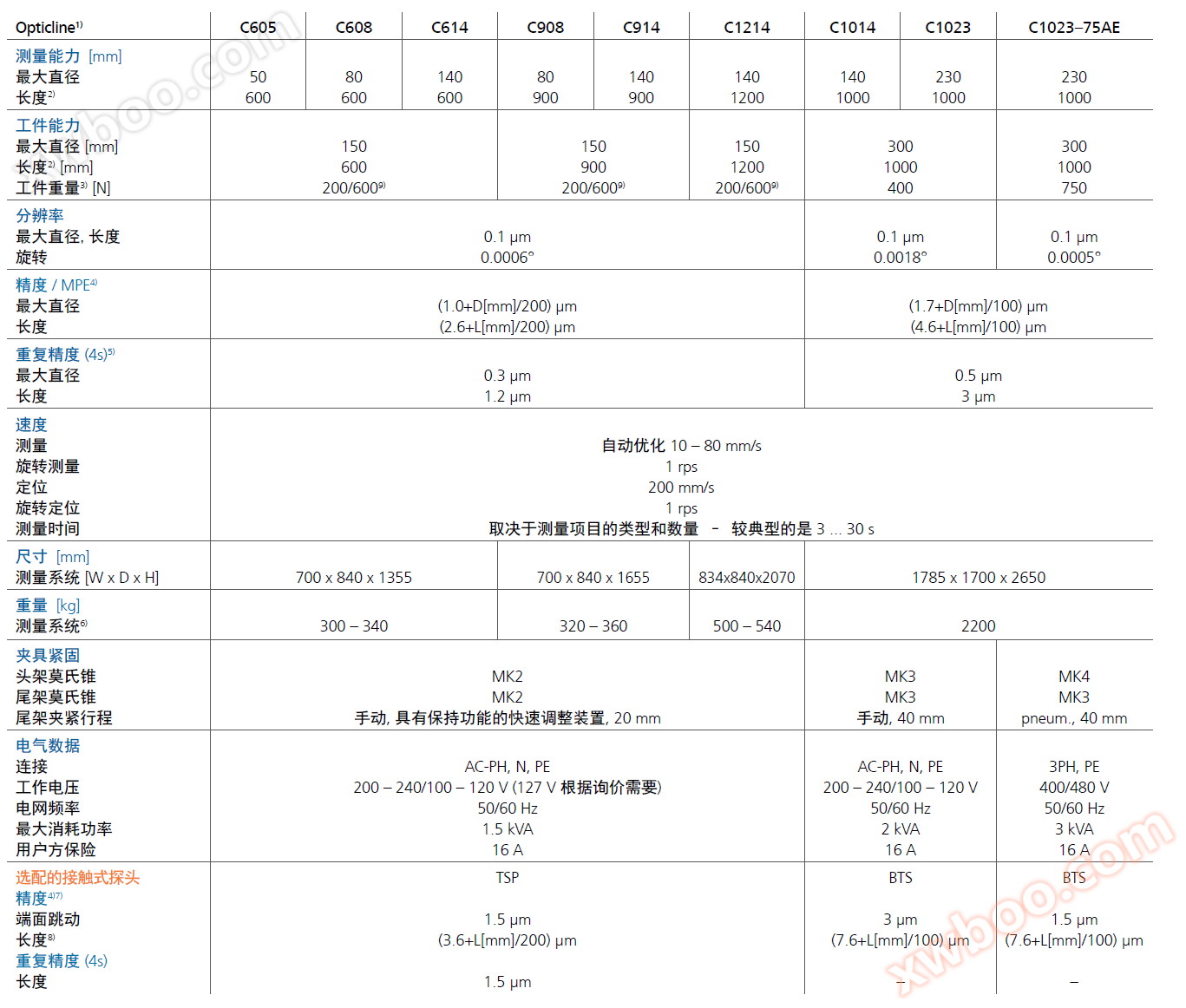

Technical parameter table:
