Jenoptik Germany has developed a new generation of optical measurement systems, including the CS155/CS305/CS308, Jenoptik Axis Optical Measuring Instruments for Jenoptik and JENOPTIK Axis Optical Measuring Equipment. These systems make quality control in the production process easier

Product Details

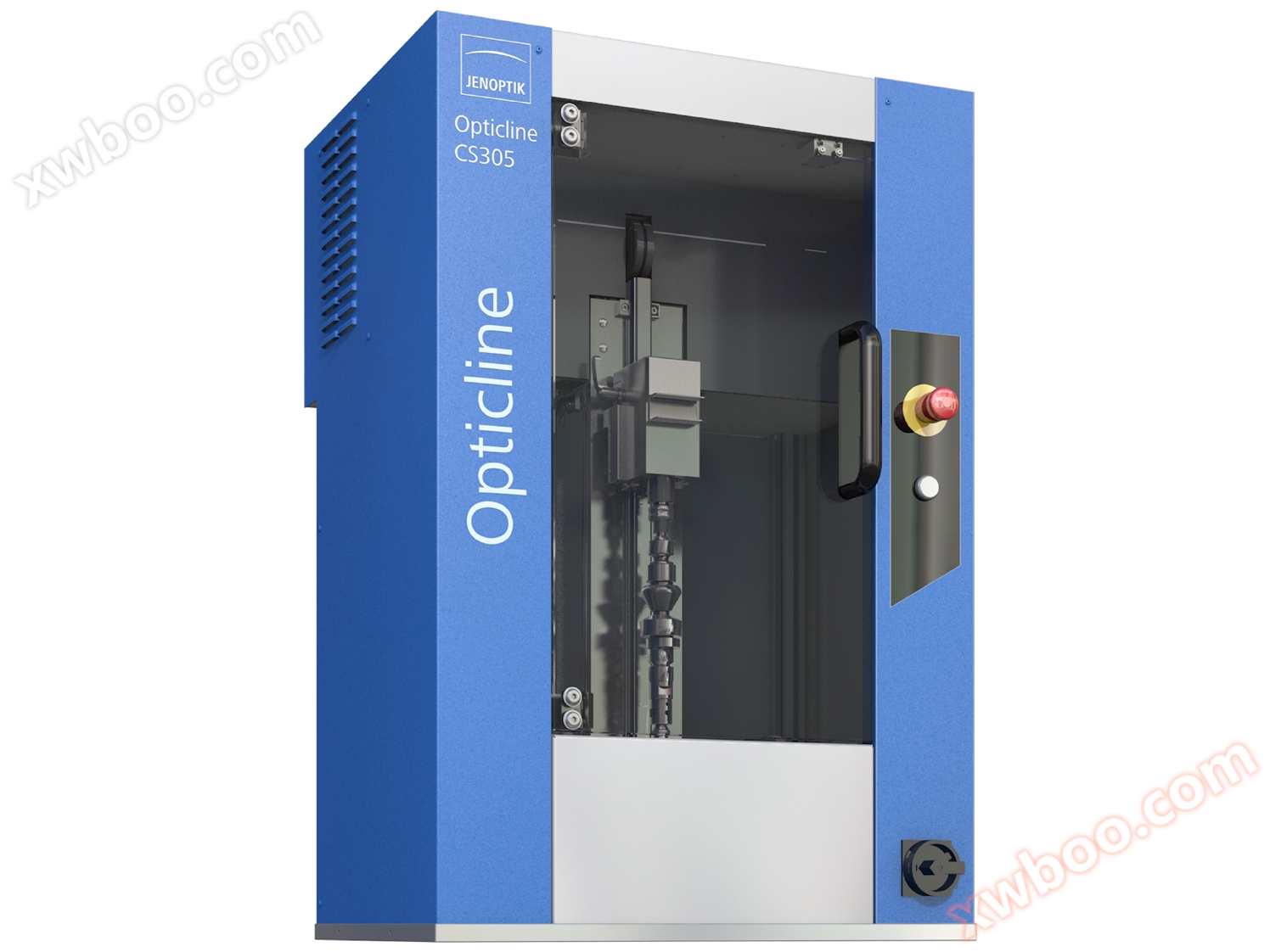

Jenoptik Germany Jenoptik Opticline Axis Optical Measuring Instrument CS155/CS305/CS308, Jenoptik Axis Component Optical Measuring Instrument, JENOPTIK Axis Optical Measuring Equipment Optical Axis Measuring Instrument:

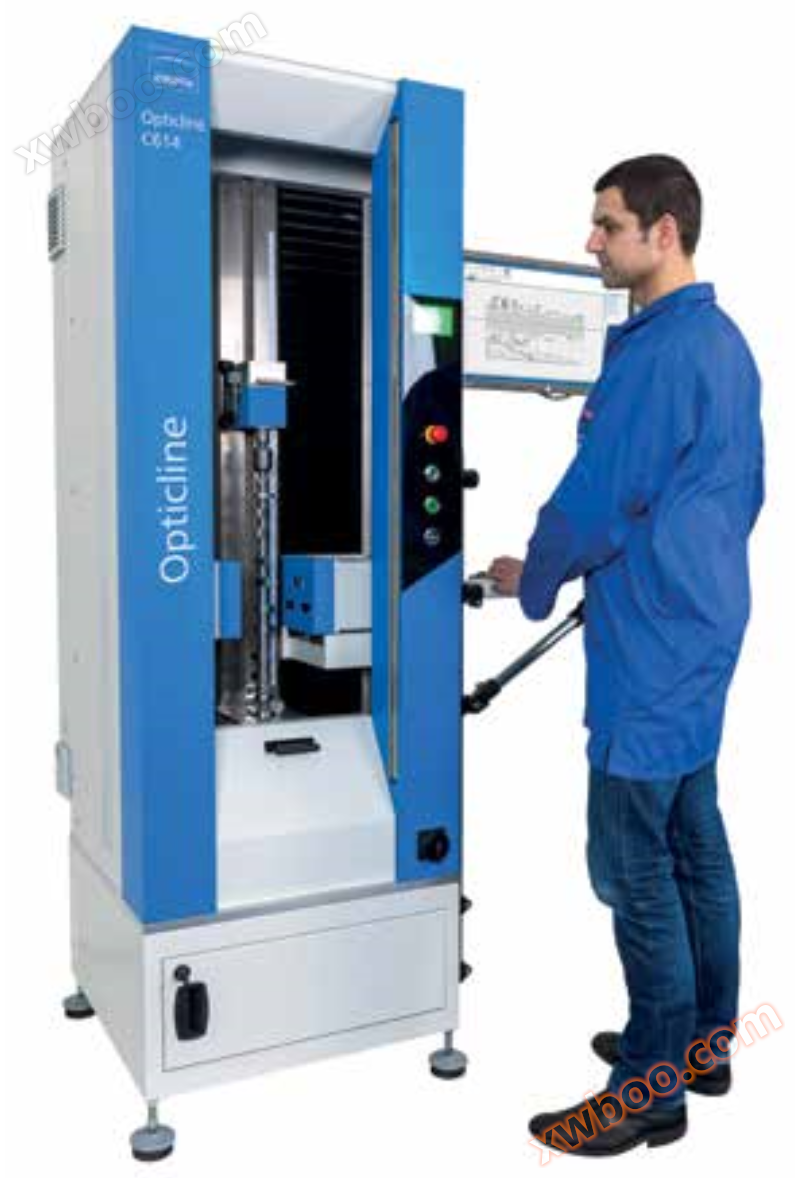

Jenoptik has developed a new generation of optical measurement systems for the Opticline series, making quality control in the production process easier.

The Yena axis optical measuring instrument is a specialized testing equipment for measuring axis components. Using opticsThe principle is to directly measure the contour of components on the production site within seconds. because

This single tool can comprehensively and accurately complete measurement tasks, saving time and effortHuman resources can improve production efficiency.

For many years, the Opticline series measurement system has set a benchmark in optical axis measurement technology. These measurement systems have impressive high measurement speed and precision, as well as optimal usability.

The company launched a new generation system in 2015, achieving multiple technological innovations and optimizations. Our system enables efficient and transparent quality control in production.

Closer range measurement: The Opticline measurement system is designed specifically for use in harsh production environments. These measurement systems are very robust and durable, and are not affected by external factors. They can also provide integrated automatic monitoring,

Ensure the highest system availability.

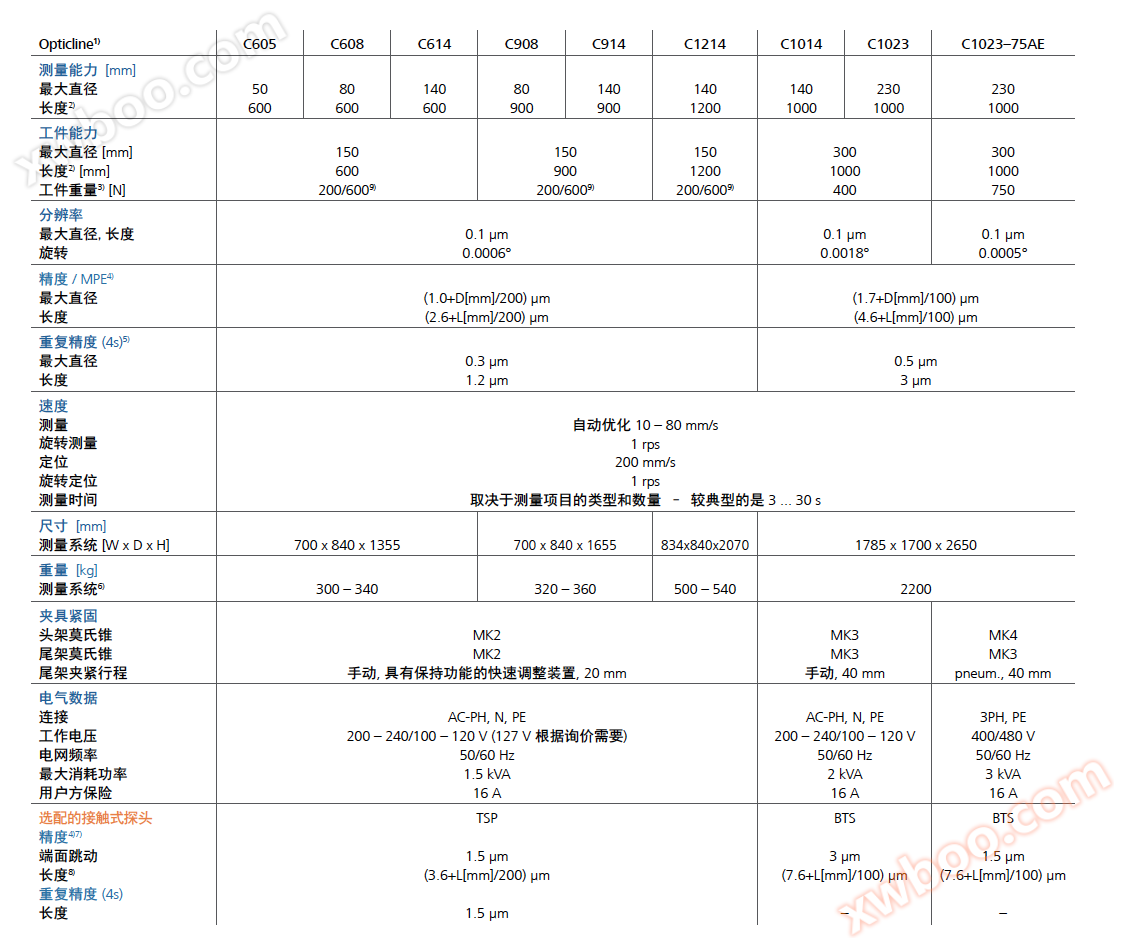

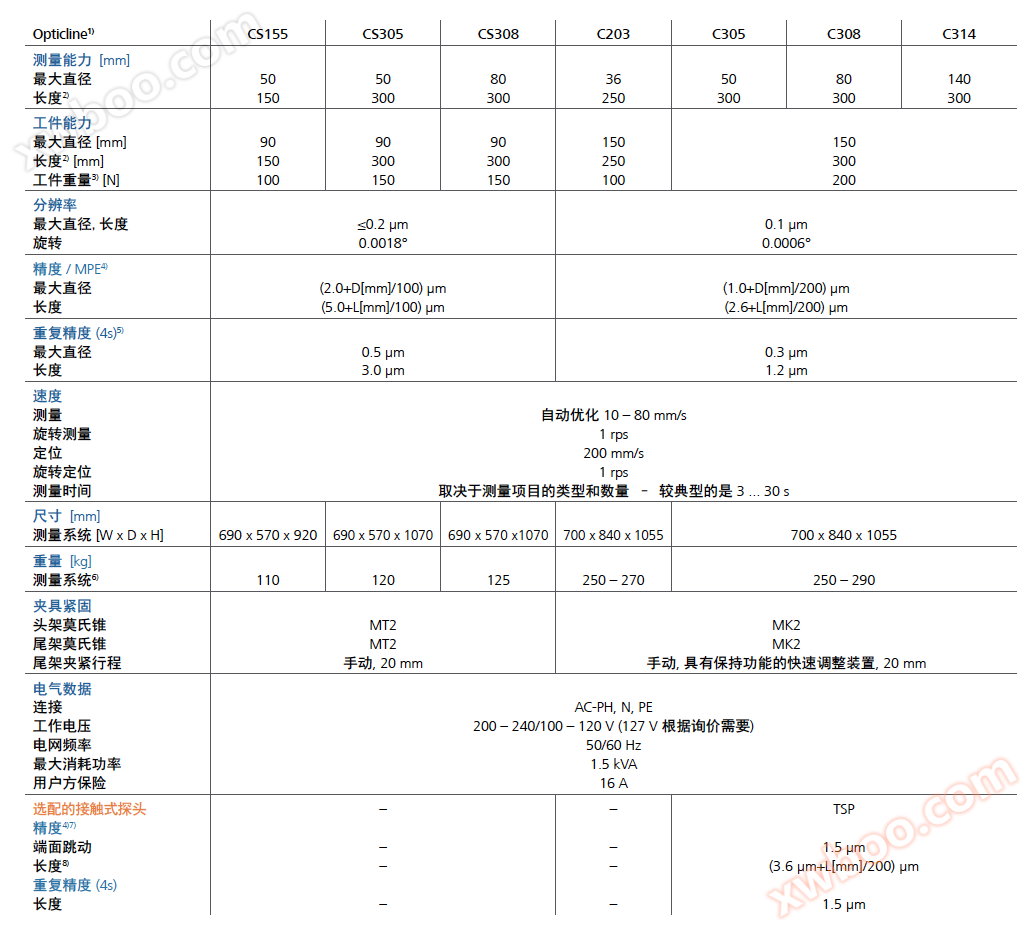

Jenoptik Germany Jenoptik Opticline axis optical measuring instrument CS155/CS305/CS308, original imported model:Jenoptik Germany Jenoptik Opticline Axis Optical Measuring Instrument C305/C308/C203/C314/C605/C608/C609

Our optical system can perform the following measurements on your workpiece:

Dimensional measurement (length and diameter, radius and angle)
Thread measurement (size, shape)
Shape measurement (straightness, roundness, cylindricity)
Contour shape (free-form, tolerance range, cam shape)
Position measurement (radial and axial runout, straightness, symmetry and parallelism, concentricity and coaxiality)

Faster measurement speed

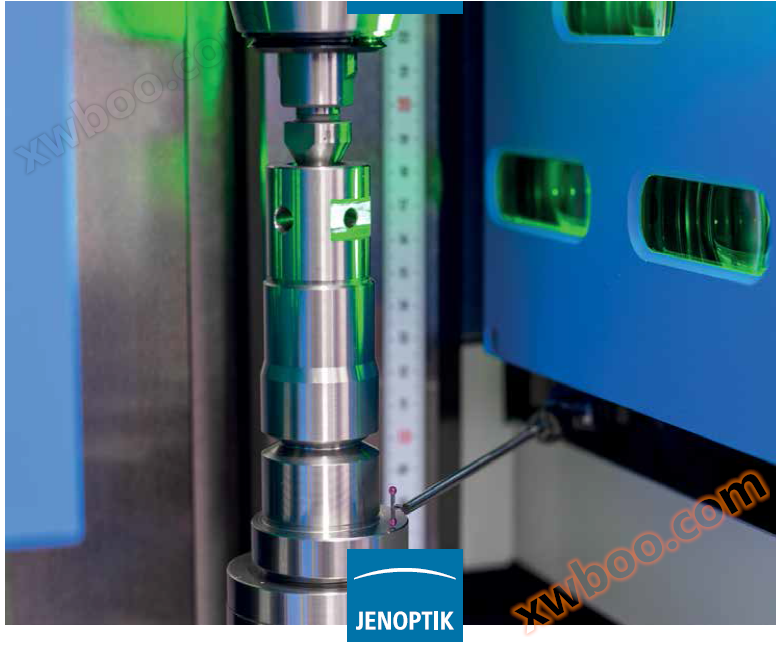

The Opticline system detects your workpiece through a fully automated (therefore non-contact) process and analyzes the contours of complex workpieces in a very short amount of time. Due to the use of these systems in actual production processes,

Therefore, not only can it shorten the operator's operating route, but it can also reduce costs, waste, and sources of error. Therefore, it can save you costs, time, and resources.

Our measurement and evaluation software can help you complete measurement tasks - from creating test plans to running complex measurements. This software is easy to understand and use.

This software can quickly adjust according to the prescribed workflow and can clearly draw complex testing characteristics. High level ability and over 25 years of experience.

These optical measurement systems reflect our rich professional knowledge and long-term experience accumulated in the field of industrial measurement. More than 2500 OPTICLINE measurement systems are being used worldwide with a successful operating record.

advantage

Precision: Thanks to the improvement of gauge repeatability and reproducibility, as well as the optimization of the camera system, the measurement resolution is extremely high and very precise.
Fast: Precisely and fully automatically detect workpieces within seconds.
Not dependent on the operator: The operator cannot have a negative impact on the measurement results.
Flexibility: Due to the support between clamping devices, the basic principle of the measuring instrument ensures maximum flexibility. The required setup time is very short, even for frequently replaced workpieces.
Durable and almost wear free: optimized for use in production; Has the highest system availability.
Efficient: It can reduce costs, waste, and material consumption.
Customer customization: If necessary, the measurement system can be modified to meet your integration requirements.
Easy to use: Based on the latest ergonomic research results, the user-friendly operation includes easy access to the loading area and the use of a light barrier for safe and efficient loading.
The evaluation software is easy to understand: the operation is simple and intuitive, and requires very little training.

application

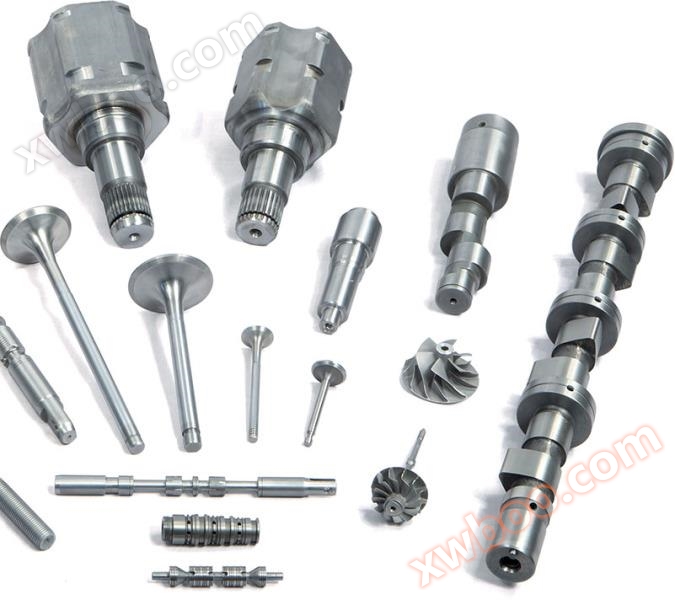

Automotive industry: measuring turbochargers, engine valves, pistons, camshafts, crankshafts, gear shafts, and drive shafts.
Manufacturers of turning and grinding parts: measure axial (mainly axisymmetric) workpieces.
Medical technology: measuring implants, bone screws, and rotating instruments. Our business scope covers different solutions for various measurement tasks
Case. We will work with you to determine the best measurement plan and match it according to your requirements
Set up an appropriate system. In addition, we will also consider all important factors, such as
The required level of automation or integration with the production process.


Waveline - Roughness and Profile Measurement Technology
Measuring roughness, contour, surface morphology, or spiral patterns
Portable mobile roughness measuring instrument and manual or automatic surface measurement
Measuring instrument; Combination measurement system for roughness and contour; Cylinder hole table
Facial examination and personalized measurement plan.

Formline - Shape Measurement Technology
CNC control system for measuring shape, position, and torque, shape and
Roughness combination measuring instrument, cylinder bore shape measuring system, spindle
Measuring machines and specialized solutions for workpieces.

Opticline - Optical Measurement Technology for Shaft Components
Used for measuring the size, shape, positional accuracy, and geometric elements of shaft components
Optical measurement system; Connect to the production line for SPC station
Offline (after process) or automatic measurement; Or according to the actual needs of the workpiece
Personalized measurement plan.

Visionline - Optical Surface Inspection and Contour Measurement
Optical internal and external surface automatic inspection system, measuring cylinder bore structural elements
The optical measurement system of Su, as well as the creation suitable for the detection of complete components
New multi-sensor equipment.

Movoline - Online Measurement Technology
Digital measuring head with control, optional contact measuring accessories,
Used for online measurement of diameter, position, and length inside machine tools
Quantity is used to control the machining process of machine tools.

Gageline - Dimensional Measurement Technology
Used for pre process measurement, online measurement, and post process measurement
Quantity system; Principles of contact, pneumatic or optical measurement; Manual or
Automatic measuring device; Final measuring machine and personalized online measurement
Quantity system; Optical surface detector.

Serviceline - Global Technical Services
Our measurement technology services help customers make the best use of their measurements
The system ensures its availability and maximizes its performance.
