Jenoptik Germany Jenoptik Opticline axis online optical measurement system, axis online optical detection system, JENOPTIK axis optical measurement system

They provide precise measurement data of workpieces with repeated accuracy.

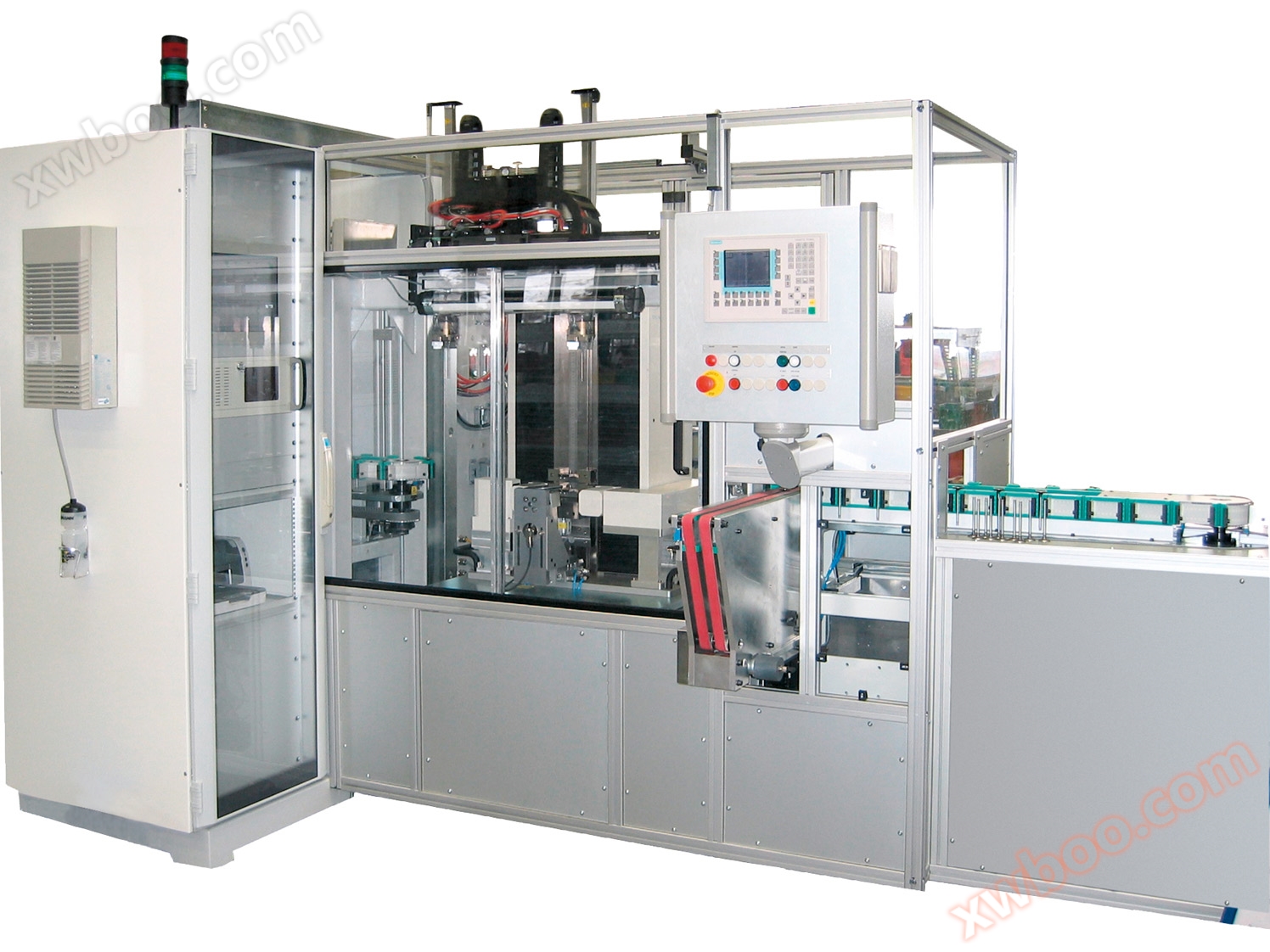

Suitable for automation applicationsThe Opticline CA, AMV, and WMS series optical measurement systems can meet extremely high automation requirements.

Jena has designed Opticline CA, AMV, and WMS series optical measurement systems specifically for automated application environments. Through intelligent hardware and software interfaces, these systems can be flexibly and seamlessly integrated into your automated production process.

Our system provides high-precision and reliable measurement results - even after long-term operation in harsh production environments.

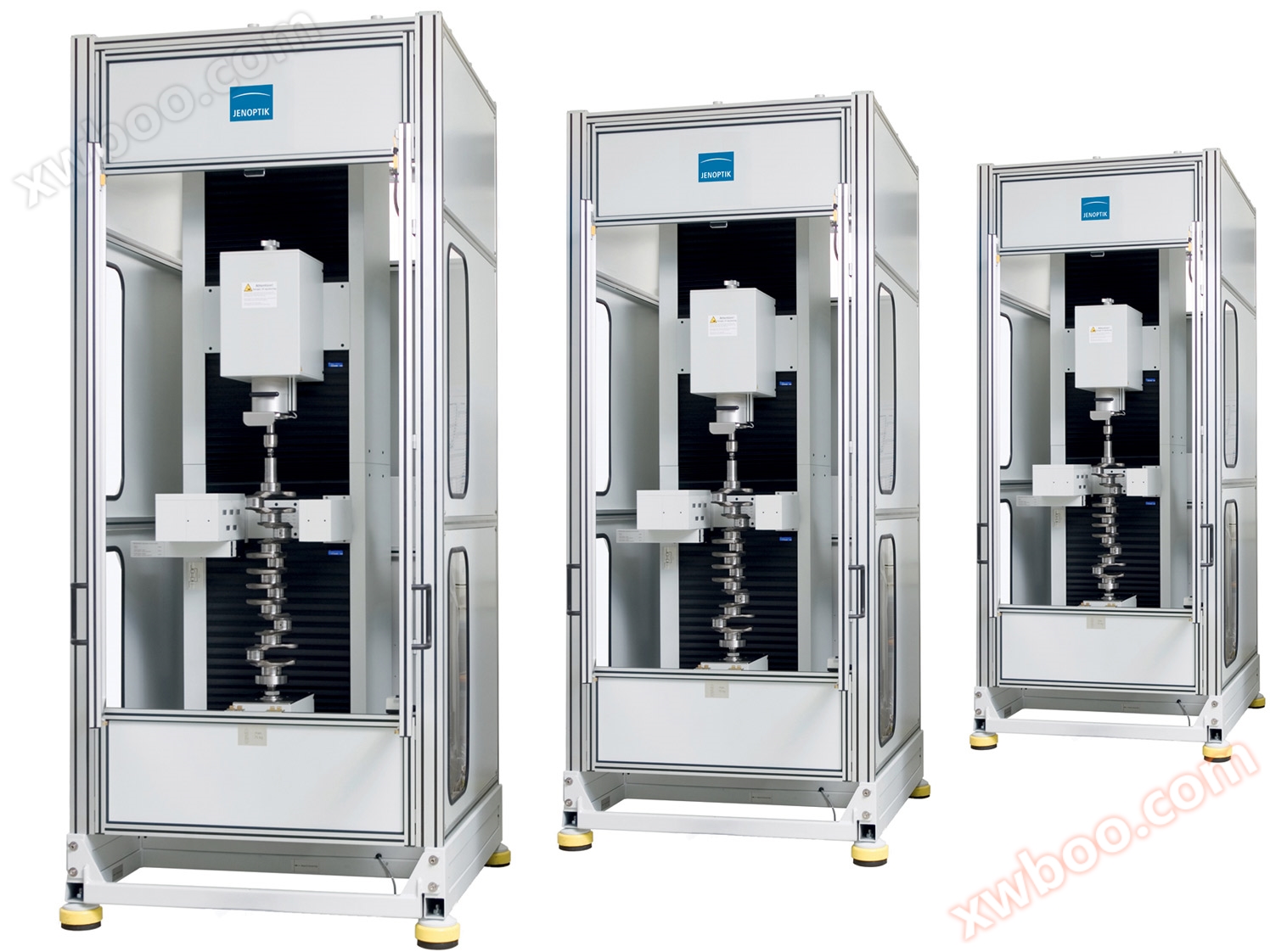

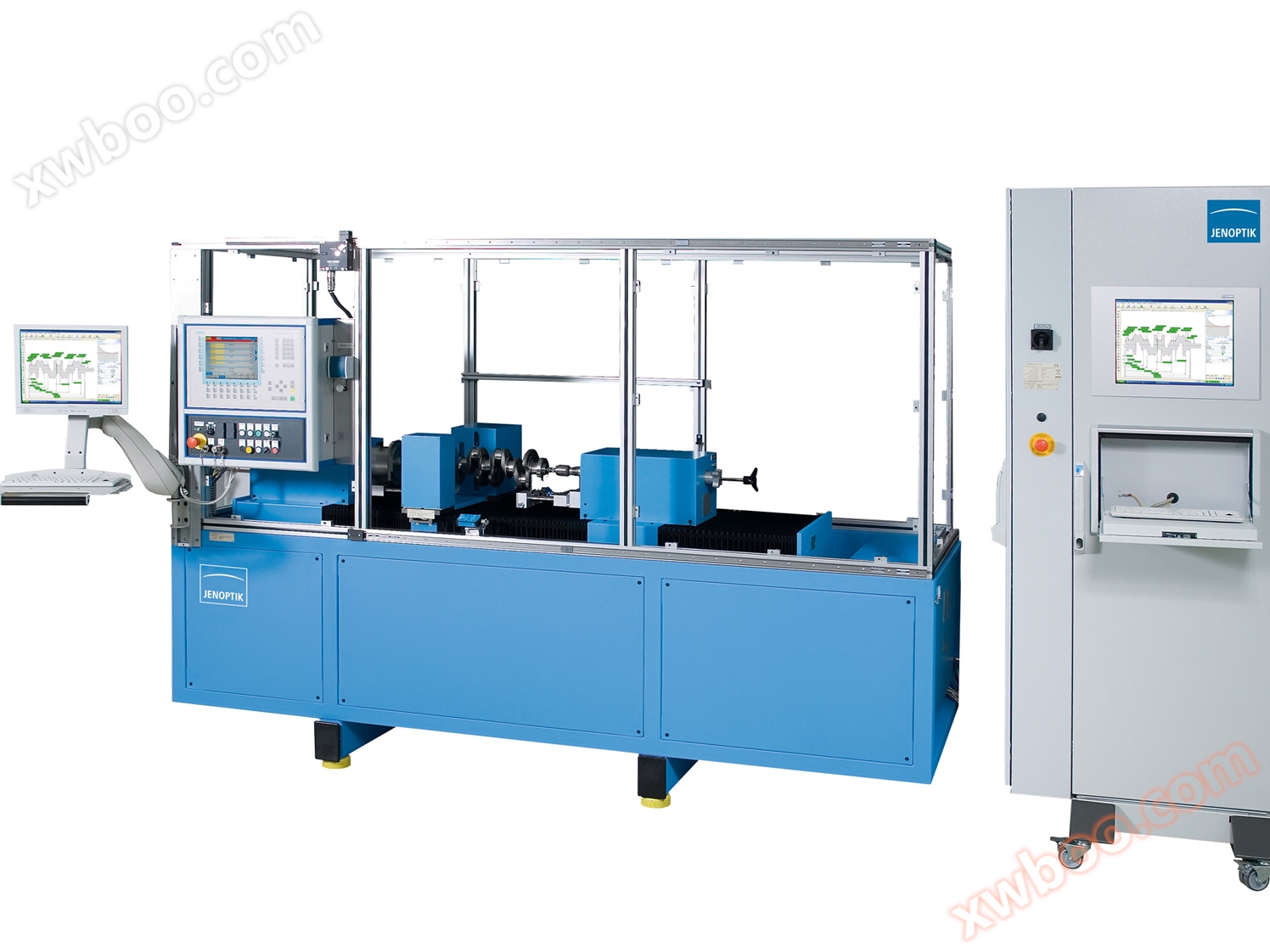

The measurement cycle of the axis measurement system is only a few seconds, which is impressive. This means that you can inspect production and reduce waste. These systems adopt multiple designs, so they can be loaded horizontally or vertically.

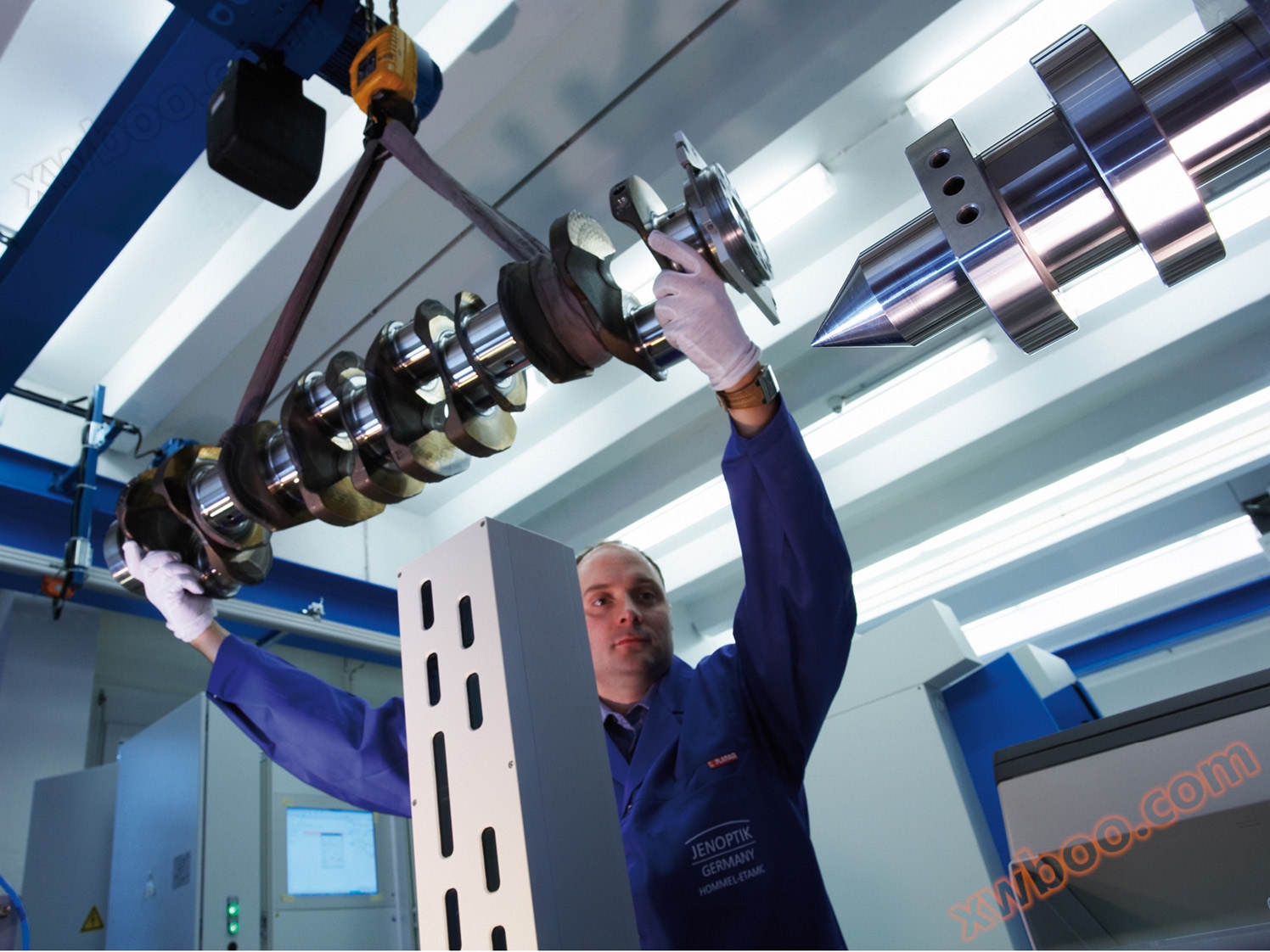

We also provide special measurement systems for particularly large and heavy shafts. If necessary, we can tailor our system to meet your specific needs.

Our measurement and evaluation software has comprehensive functionality and provides additional options for controlling calibration values, which can also be easily integrated into the manufacturing process.

This program is easy to understand and operate.

advantage

• Precision and speed: high measurement accuracy; The operator has no impact on the results. This measurement system can be integrated into the machining process.
• Ergonomic and safe: capable of automatic loading; Even heavy workpieces can be easily handled.
• Durable and almost wear free: optimized for use in production.
• Efficient: can reduce waste and material consumption.
• Customer customization: Horizontal and vertical systems can be designed, and the shell and cabinet can be customized according to the project. The system can be customized according to your workpiece and measurement task.
• Easy to understand operating software: training requirements, intuitive operation.

application

• Automotive industry: measuring turbochargers, engine valves, pistons, camshafts, crankshafts, gear shafts, and drive shafts.
• Manufacturers of turning and grinding parts: measure axial (mainly axisymmetric) workpieces.
• Medical technology: measuring implants, bone screws, and rotating instruments.
