Karlstorz German Karlstorz Industrial Endoscope Electronic Endoscope

NegotiableUpdate on 02/08

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Karlstorz, Germany Karlstorz Industrial Endoscope Electronic Endoscope Karlstorz, Germany Karlstorz, Electronic Endoscope, Industrial Endoscope Electronic Endoscope Electronic Endoscope has multiple names, it is a fiber endoscope with a video chip on the top of the endoscope

Product Details

Karlstorz German Karlstorz Industrial Endoscope Electronic Endoscope

Karlstorz, Karl Storz, Germany, electronic endoscope, electronic endoscope, industrial endoscope

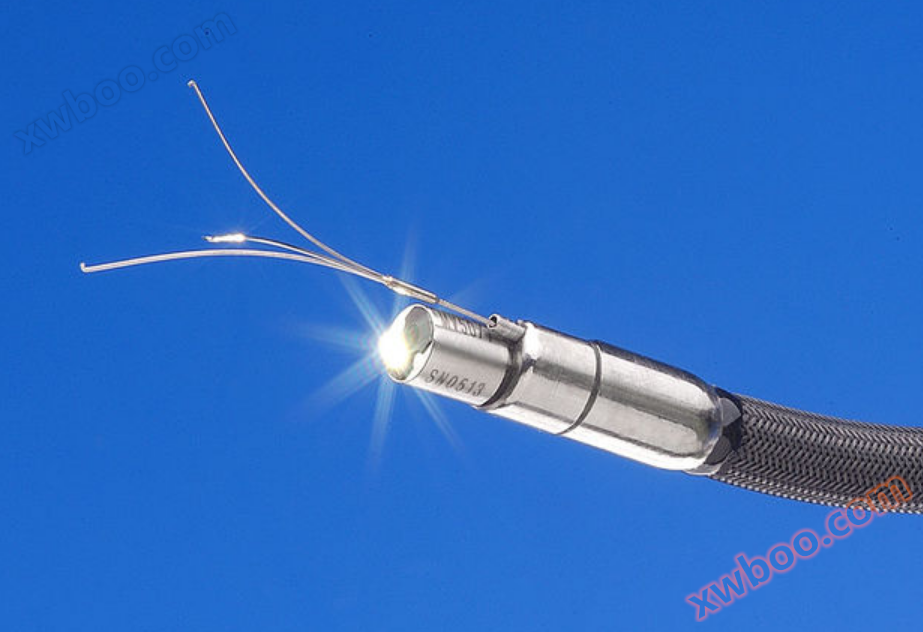

Electronic endoscope

Electronic endoscope has multiple names, it is a fiber endoscope with a video chip installed at the top of the endoscope. Based on advanced CCD/CMOS technology, we combine it with the excellent lens system of Karl Storz to produce a video endoscope that can provide clear and color realistic images. This electronic endoscope comes with a data disk that can store images and hours of video information without the need for additional cameras. Karlstorz Germany Karlstorz Industrial Endoscope, Electronic Endoscope, Industrial Endoscope, Karlstorz Germany Karlstorz

In addition, this electronic endoscope comes with a complete measurement system, which is both accurate and easy to use. The area that needs to be measured will be marked and immediately measured. The measured image results can be used for further analysis, such as measuring information such as height, distance, and area. In addition, you can edit the stored image results at any time, with support for text insertion and color labeling during editing.

Technical parameters-Electronic endoscope

Electronic endoscope	Ø 3.8 mm	Ø 4.2 mm*	Ø 4.4 mm*	Ø 5 mm	Ø 6 mm*	Ø 6.3 mm	Ø 8 mm
standard	PAL and NTSC
function key	TECHNO PACK ® Settings: Standard image, recorded video, manual shutter settings, measurement function, measurement laser settings or HighGain and focusing function
Integrated cable	T-shaped connector, integrated cable 2.3 m, video cable 0.7 m
Bending (± 10 °)		CLICK4MOVE ® *C4M Second Generation			CLICK4MOVE ® *C4M Second Generation
*Can be observed 360 °	Biaxial bending Up/Down 170°/90°	Four-way bending 4× 170° *	Four-way bending 4× 170° *	Four-way bending Up/Down 180°/180° Right/Left 150°/150°	Four-way bending Up/Down 180°/180° Right/left 150 °/150 ° Length 4.5 meters, Up/down 160 °/160 °; Right/left 130 °/130 ° Length 7.5 meters, 4x 90° *	Four-way bending Up/Down 180°/120° Right/left 120 °/120 ° Length 4.5 meters, Up/down 160 °/120 ° Right/left 120 °/120 ° Length 7.5 meters, 4x 90° *	Four-way bending Up/down 120 °/180 ° Right/left 90 °/90 ° Length 7.5 cm, 4x 90°
perspective	0 ° is the standard configuration. If you need other viewing angles, please replace the corresponding lens
Temperature sensor for MULTIPOINT electronic endoscope			The alarm signal starts at 80 ° C	The alarm signal starts at 80 ° C	The alarm signal starts at 80 ° C	The alarm signal starts at 80 ° C	The alarm signal starts at 80 ° C
Lens fixation method	bayonet-type	Threaded type	Threaded type	bayonet-type	Threaded type	bayonet-type	Threaded type
Safety thread	Triple insurance	Double insurance	Double insurance	Triple insurance	Double insurance	Double insurance	Double insurance
End diameter Outer sheath diameter	Ø 3.8 mm ± 0.1 Ø 3.8 mm	Ø 4.0 mm ± 0.2 Ø 4.2 mm - 0.04	Ø 4.0 mm ± 0.2 Ø 4.4 mm - 0.04	Ø 4.9 mm ± 0.05 Ø 4.9 mm ± 0.05	Ø 6.0 mm + 0.3 Ø 6.0 mm + 0.3	Ø 6.3 mm - 0.3 Ø 6.3 mm - 0.3	Ø 8.0 mm ± 0.2 Ø 8.0 mm ± 0.2
Working Length	1000 mm 2000 mm	2000 mm 3000 mm	2000 mm 3000 mm	2000 mm 3000 mm 4500 mm	2000 mm 3000 mm 4500 mm 7500 mm	3000 mm 7500 mm	2000 mm 3000 mm 4500 mm 7500 mm
Minimum curvature radius Outer sheath lens	40 mm 10 mm	60 mm 10 mm	60 mm 10 mm	35 mm 15 mm	35 mm 15 mm	35 mm 15 mm	80 mm 25 mm
temperature range	Outer sheath in water environment+10 ° C -+30 ° C Outer sheath in atmospheric environment -10 ° C -+80 ° C
Total weight	1000 mm 1 kg 2000 mm 1.1 kg	2000 mm 1.1 kg 3000 mm 1.2 kg	2000 mm 1.1 kg	2000 mm 1.1 kg 3000 mm 1.2 kg 4500 mm 1.55 kg	2000 mm 1.15kg 3000 mm 1.25 kg 4500 mm 1.6 kg 7500 mm 1.9 kg	3000 mm 1.2 kg 7500 mm 1.9 kg	2000 mm 1.25 kg 3000 mm 1.35 kg 4500 mm 1.7 kg 7500 mm 2 kg
sealing performance production batch	VP06X, VN04X, VP08X IPX7-DW EN60529: 1991 + A1 : 2000
stress resistance	Can withstand a water pressure of 1 bar

The KARL STORZ MULTI POINT measurement system is based on a miniature projector that can generate regular light spots on the measurement surface. The obtained data will be converted into 3D mode, which can cover and model the surface of the object being measured. Therefore, even if the measurement surface is extremely smooth or has no texture, this structured lighting can still be used for measurement. In addition, measurement software using proprietary algorithms can quickly calculate and process 3D data. For over 10 years, Karl Storz has consistently gained the trust of its users with fast and accurate measurements.
