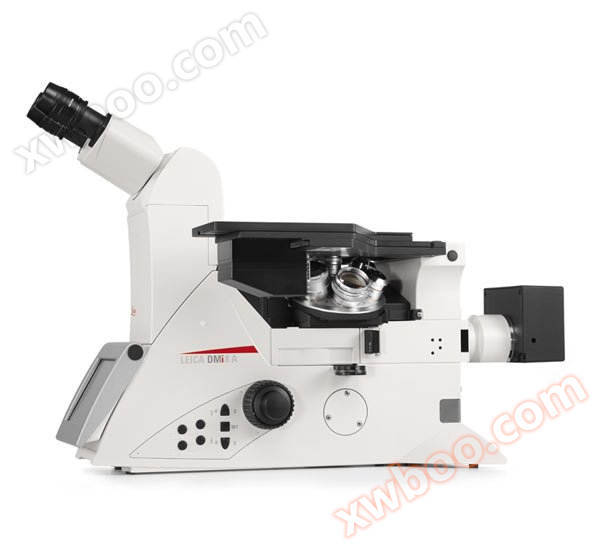

Leica inverted metallographic microscope Leica DMi8

Subvert the game and maintain a leading position

LeicaInverted metallographic microscopeLeica DMi8

Maintaining a leading position in competition is the driving force behind your career advancement. Whether you are engaged in metallography, medical equipment manufacturing, or microelectronics, speed is crucial. You can customize Leica's highly modular inverted microscope according to your own needs. It combines Leica's excellent optical quality, rich contrast modes, and user-friendly software to help accelerate your workflow.

Leica inverted microscope helps you accelerate workflow

Leica inverted microscope can save you time and money. Unlike upright microscopes, you can directly place the sample on the stage to focus its surface once, then focus at all magnifications, and operate on subsequent samples. Due to the objective lens being located below the stage, the risk of collision with the sample is greatly reduced.

save time

• You will switch samples four times faster

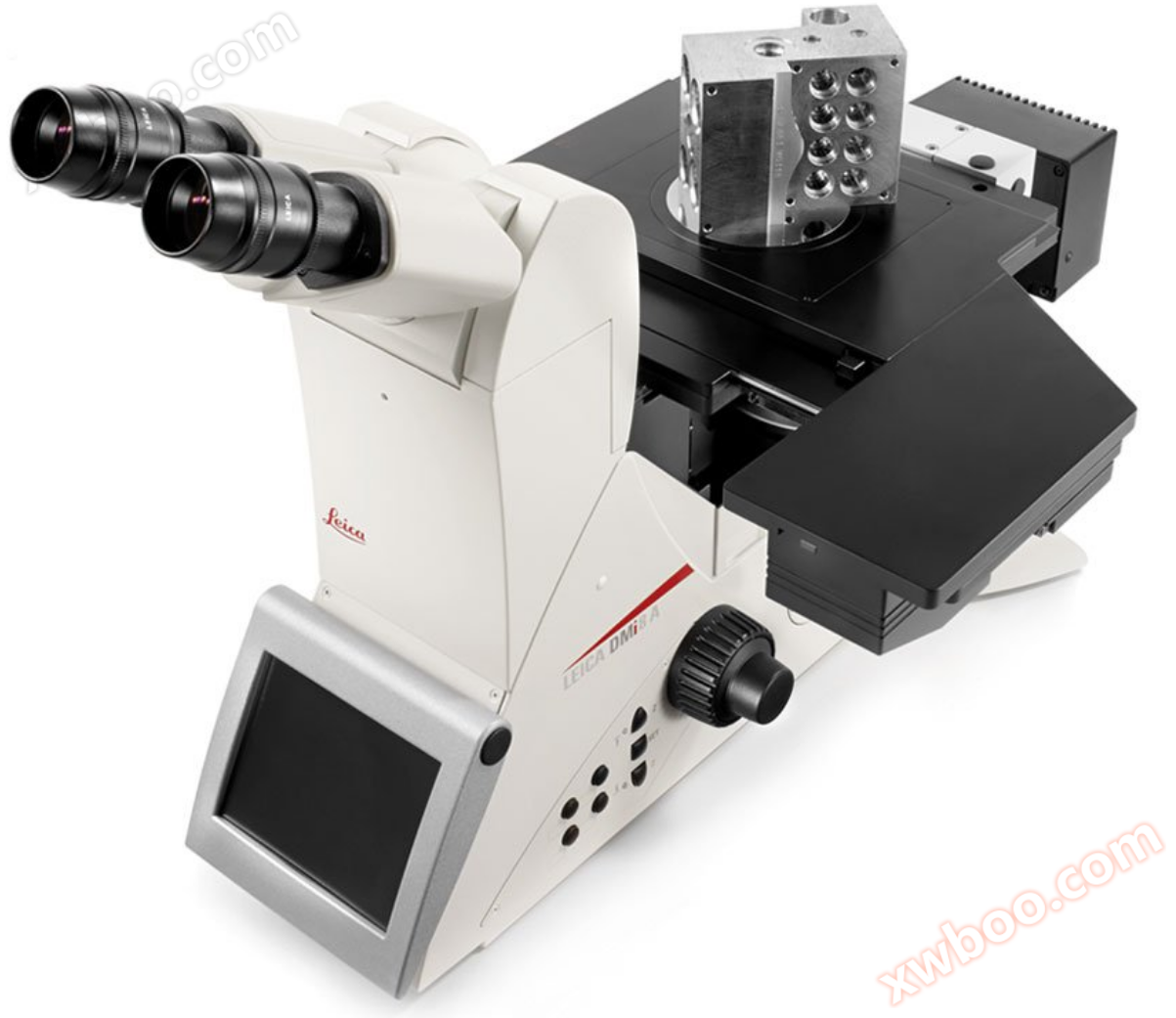

• You can get a more spacious workspace and easily place large and heavy samples
• Samples with a maximum observable weight of 30 kg

Observe the sample in detail

Do you need to observe large-sized samples and conduct detailed analysis? The macroscopic objective lens exclusively provided by Leica Microsystems allows you to observe more sample details in a shorter amount of time. With just one click, you can switch from macro mode (35 mm) to nano mode (200 nm).

• Leica macro lenses can provide a field of view four times that of standard lenses
• (Observe at 0.7x magnification)
• Overview of the 35.7mm sample.

You can switch between different magnification ratios: -0.7x -5x -10x -20x-

• 50x – 100x –， And illuminate the sample from different angles.
• The 3-speed focusing driver can achieve sensitive and adjustable focusing at different magnifications, thereby improving your sample detection efficiency.
• You can create the perfect tool for your work needs. Tailor the system to fit your budget, application needs, and preferences. Invest in the features you need for your work now - and prepare for future needs. Greater degrees of freedom

You can upgrade your system to meet future needs

Choose between manual, coding, and automatic functions

• You can use a variety of contrast modes to meet all application needs
• Easily reproduce and save with just one keystroke

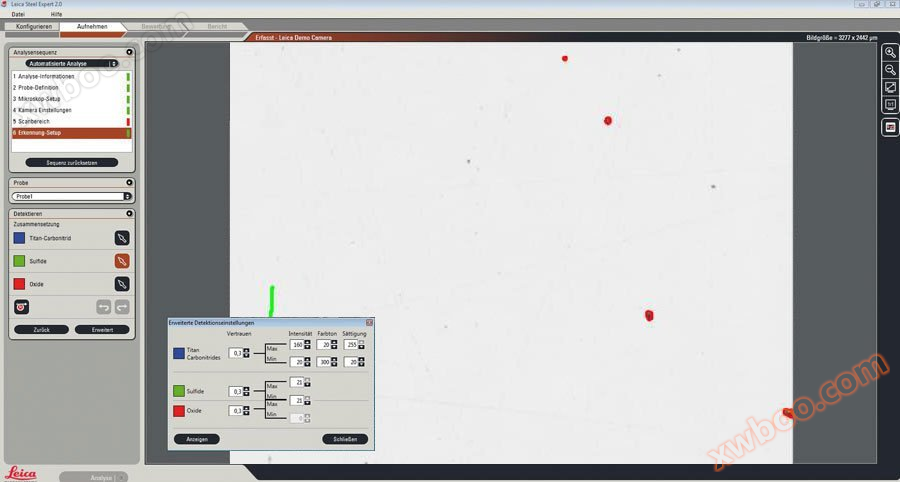

• Leica Application Suite (LAS) software provides a range of expert level modules to reduce your workload, such as:

Steel Expert

Phase Expert

Grain Expert

Regularly updating and upgrading LAS software ensures that you always stay ahead of the competition.

• Use the unique UC-3D lighting device to observe more details
• Leica Microsystems exclusively provides ultra contrast 3D lighting devices. It can illuminate the sample from different angles to help you obtain more surface structure information and achieve higher contrast. Therefore, you can observe more sample details in a shorter amount of time.
• Deepen observation

Built in lighting solution brings a more relaxed user experience
No additional cost required to obtain more sample information

You can choose Leica manual or electric version
Image capture: Duplex Steel

3140 BF 20x.jpg

Duplex Steel 3140 DIC+UC-3D Lighting Device 20x

• Duplex Steel 3140 BF 20x.jpg
• Duplex Steel 3140 DIC + UC-3D Illumination 20x
• Support your workflow with personalized features

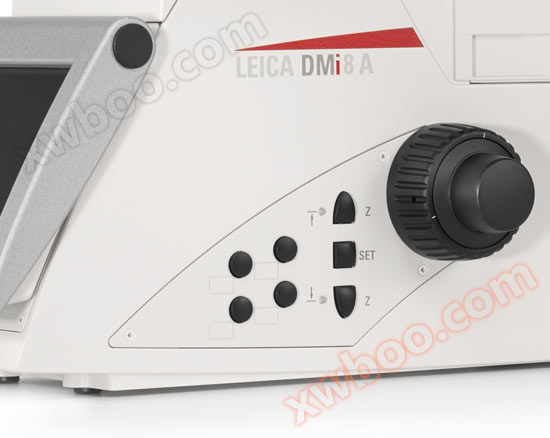

Personalize function keys according to personal preferences and use coding components and lighting controls. With the help of a guided workflow, you can obtain results faster and work smoothly with the microscope.

press

Activate macro mode with just one button to quickly observe sample overviewSynchronized switching between contrast mode and magnification (e.g. from 10x HDF to 50X DIC)Program a certain function key to use the camera to capture images for archiving purposesMaoxin Industrial (Shanghai) Co., Ltd
