Nikon Measurement Microscope MM-400/800
NegotiableUpdate on 02/08
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview

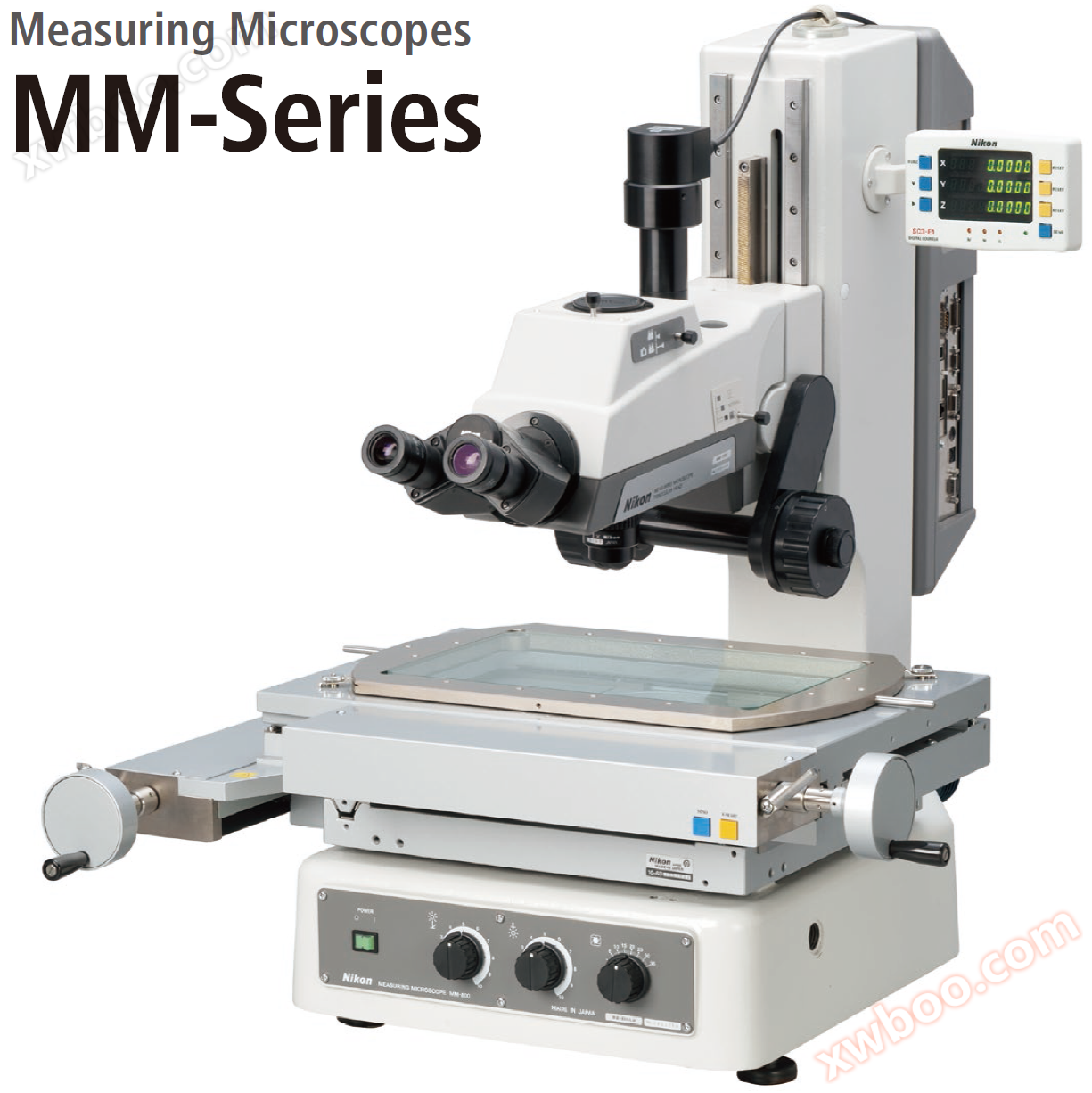

Measurement Microscope MM-400/800 Series New and Digital Measurement Microscope
Product Details
Measuring microscopeMM-400/800 series
New, digital measuring microscope. Mainly used for product part size inspection in production workshops and metrology testing rooms.
This model widely uses LED lighting, and there are two types of counters: dual axis and three-axis. Depending on the selection of the lens barrel, lighting device, lifting mechanism, objective lens, and focusing mechanism, there are multiple sub models available for users to choose from, including M, T, LT, LMT, LFA, LMFA, U, LU, LMU, etc.
The maximum capacity for carrying Nikon's 12X8 measurement stage. The travel of the platform is 300 (X) × 200 (Y) mm, with a maximum load-bearing capacity of 20Kg;

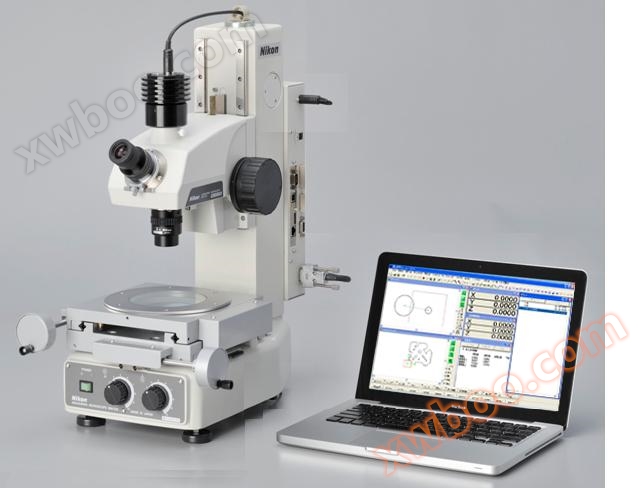

Can be connected to data processors or measurement software E-MAX (where the DS set requires CCD and supports visual measurement);
The U-shaped model also supports various metallographic observations.

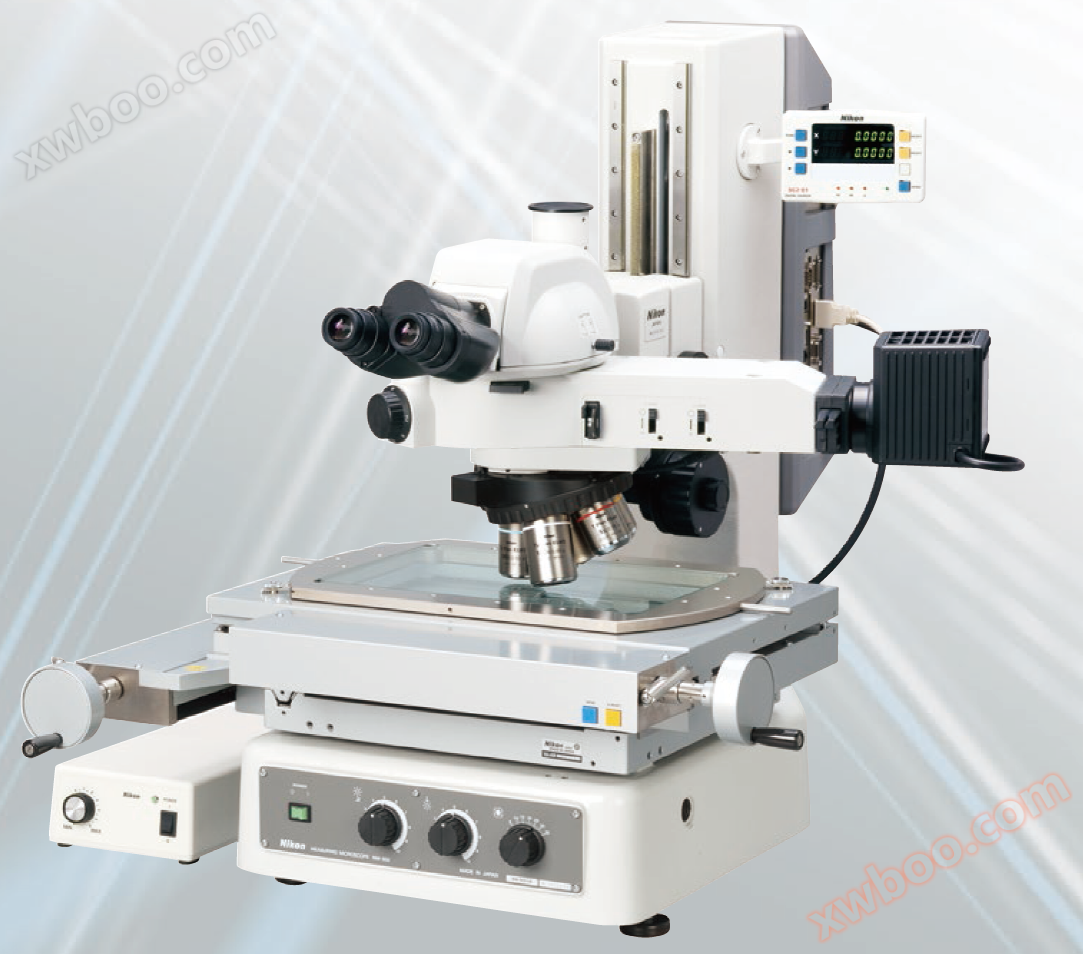

MM-800LFA
Z-axis with grating and auxiliary focusing
Z-axis with grating and auxiliary focusing
|
MM-400/800 Japanese Nikon Tool Microscope MM-800Nikon tool microscopeThe latest coaxial laser (TTL) developed by NIKON company completely solves the problem of inaccurate Z-axis measurement accuracy in traditional tool microscopes. The measurement mode is detected by a non-contact laser beam, and the repeatability can reach 1.5um, which is currently the highest accuracy for Z-axis measurement in optical measuring microscopesAdditionally, you can also choose to pair it with the Auto Focus systemFocusing Aid: The NIKON optical system uses advanced image splitting methods to assist operators in achieving focus determination, effectively reducing human measurement errors and improving measurement accuracy.
MM-800Tool microscopePiggybackThe 12X8 (300X200mm) ultra large stage makes it possible to measure large workpieces MM-400Tool microscopeIt is a small model of MM-800, which can only be equipped with four measuring stages: 2X2 (50X50mm)/03L (100X50mm)/4X4 (100X100mm)/6X4 (150X100mm)Like the MM-800, it also uses advanced LED to replace halogen light for illumination, which emits light uniformly and reduces measurement errors caused by thermal expansion due to halogen light illumination. It can also be equipped with an 8-stage controllable LED external light source, solving the measurement of some corner corners and blind spots MM-400/800Tool microscopeAn optional Z-axis electric focusing system can also be selected, greatly reducing the complexity of personnel operation and making ergonomics more perfect |
||||||
