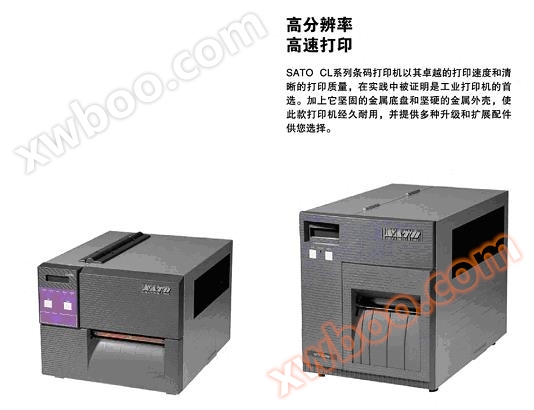

SATO CL412e barcode printer

Sato CL412e barcode printer, Sato CL408e barcode printer

SATO CL408e/412e barcode printer
Industrial grade barcode printer, heat transfer/thermal sensitive method
Printing resolution 203dpi/305dpi
Print various labels, clothing tags, laundry fabric labels, or special items
Usage: Stickers and other industrial and commercial applications

Printer specifications:
Printing method: heat transfer printing/direct heating method
**Large printing range CL408e: width 104 mm x length 1249mm
CL412e: Width 104 mm x Length 833mm
Print resolution CL408e: 203dpi (8 pixels/millimeter)
CL412e: 305dpi (12 pixels/millimeter)
Printing speed 2-6 inches/second (50-150 millimeters/second)
Physical characteristics:
Dimensions: 16.9 inches in length, 10.7 inches in width, and 12.6 inches in height
(Length 429mm x Width 271mm x Height 321mm)
Net weight 28.7 pounds (13 kilograms)
Product Features
133MHz microprocessor, 32-bit RISC processor
Font library 12 level proportional fonts&fixed magnification OCR-A&OCR-B fonts; 10 types of vector fonts; American/European fonts; Standard case subscript font (850 symbol table)
Font feature: 12 times character horizontal and vertical enlargement; Random storage of special characters; Number and barcode serial number; High speed complex editing format
Certified FCC Class A, U/L, CSA, CE, TUV, EMC
The image supports SATO binary/hexadecimal, BMP and PCX formats
Detecting tag penetration sensors with adjustable positions; Pre printed black label or slotted reflective sensors; Automatic detection of continuous printing mode
Sensor continuous printing mode automatic detection
Optional label cutter, label rolling machine, label peeler, ， PCMCIA memory card expansion module,
Coax./Twinax interface, serial/parallel interface, USB interface, 10/100 megabit network card
Applicable barcode:
Barcode parameter Bookland (UPC/EAN Supplementary); EAN-8/13； Codabar； MSi；
Code 39/93/128； Interleaved 2of5； Industrial 2 of 5； Matrix 2 of 5；
UCC/EAN128； UPC-A/E； Data Matrix； Maxicode； PDF417； Postnet；
Micro & Truncated PDF； QR Code
Barcode rotation 0 °, 90 °, 180 °, 270 °
Usage environment:
Working environment temperature: 41-104 ° F (5-40 ° C)
Relative humidity: 15-85%, no condensation state
Storage environment temperature: 0-104 ° F (-20-40 ° C)
Relative humidity: * * 90% higher, no condensation state
Voltage withstand 8kV
Other parameters:
AC power supply 100V/220V (± 10%) 50/60Hz (± 1%)
Standby mode 50W
Working status 130W
Parallel communication interface: IEEE1284
串行： RS-232C (9,600-57,600Bit/sec)，RS-422/485 (9,600-57,600Bit/sec)
Network: TCP/IP, USB
External port parallel: 36 pin Amp interface
Serial: DB-25 interface
Expansion port: 14 pin Amp interface
Label width: 0.78-5.1 inches (22-131 millimeters)
Length: 0.24-14.0 inches (6-356 millimeters)
Type: Folding paper, die cut paper, continuous cardboard.
Carbon bandwidth: 111 millimeters
Length: 450 meters
Thickness: 4.5 microns, internal roll type
Scope of use: Industrial grade printing of various labels, clothing tags, washing cloth labels, or special purpose stickers for industrial and commercial applications.
