SXL-103030L programmable heating muffle furnace box type experimental furnace

30L programmable heating muffle furnace box type experimental furnaceDetailed Introduction

30L programmable heating muffle furnace box type experimental furnacePerformance characteristics:

High aluminum inner liner, good wear resistance, 1000 degree and 1200 degree high temperature heating wires generate heat on all sides, with good uniformity,

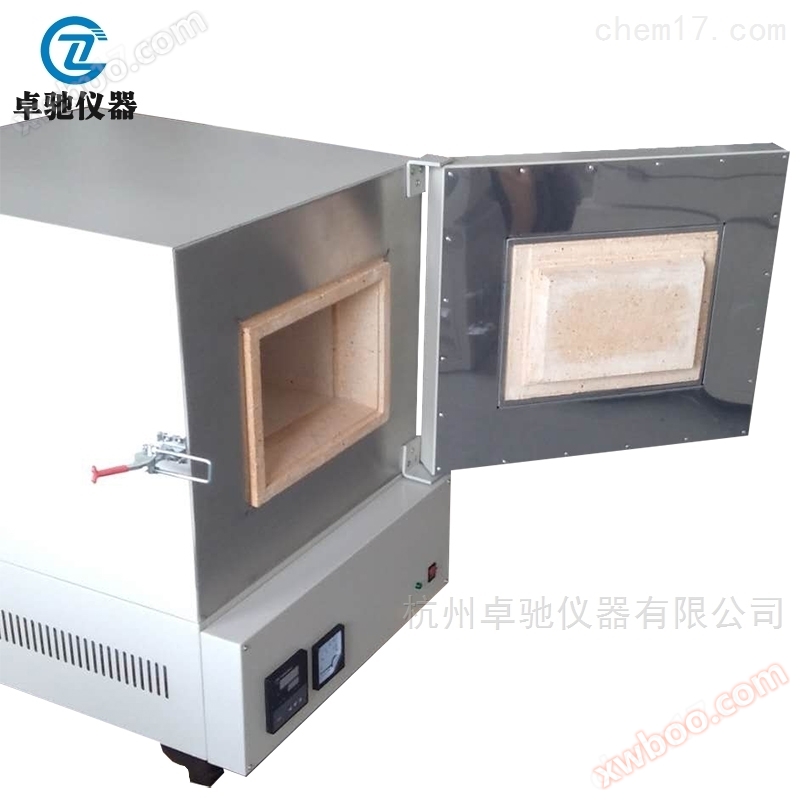

The inner side of the furnace door and the panel at the box mouth are both made of stainless steel, and the outer shell is made of high-quality thin steel plate, with a surface spray coating and integrated production

The instrument has high precision, with a display accuracy of 1 degree. Under constant temperature conditions, the accuracy can reach plus or minus 1 degree

The control system adopts LTDE technology, with 30 band programmable function and secondary over temperature protection.

SXL-1030 is used for element analysis in various industrial and mining enterprises, colleges and universities, and research institutions. It can also be used for heating small steel parts during quenching, annealing, and tempering. It can also be used for high-temperature heating such as sintering, dissolution, and analysis of metals and ceramics. The box design is new and beautiful, using a matte spray coating. The inner side of the furnace door and the panel at the box mouth are made of high-quality stainless steel, ensuring the durability of the instrument. Thirty segment microcomputer control with program, powerful programming function, can control heating rate, heating, constant temperature, multi band curve settings arbitrarily. Optional software can be connected to a computer to monitor and record temperature data, making reproducibility of any experiment possible. The instrument equipment is equipped with electric shock, leakage protection system, and second level automatic temperature protection function to ensure the safety of the user and the instrument

SXL-1030Detailed information:

Furnace structure and materials used

Furnace shell material: The outer box shell is made of high-quality cold plate treated with phosphate film salt and sprayed with high-temperature plastic, with a color of computer gray;

Furnace liner material: Made of high aluminum liner, with good wear resistance, the high-temperature furnace heats up on all sides, including the upper, lower, left, and right sides;

Insulation method: insulation bricks and insulation cotton;

Temperature measuring port: The thermocouple enters from the upper back of the furnace body;

Terminal post: The heating furnace wire terminal post is located at the lower rear position of the furnace body;

Controller: located below the furnace body, with a built-in control system and compensation wires connected to the furnace body

Heating element: High temperature resistance wire;

Whole machine weight: approximately 173KG

Standard packaging: wooden crate

Product Technical Parameters

Temperature range: 100~1000 ℃;

Volatility: ± 2 ℃;

Display accuracy: 1 ℃;

Furnace size: 500 * 300 * 200 MM

Dimensions: 800 * 650 * 800 MM

Heating rate: ≤ 10℃/min； (Adjustable to any speed below 10 degrees per minute)

Overall power: 12KW;

Power supply: 380V, 50Hz

Temperature controller

Temperature measurement: K-scale nickel chromium nickel silicon thermocouple;

Control system: LTDE fully automatic programmable instrument, PID regulation, display accuracy of 1 ℃

Complete set of electrical appliances: using branded contactors, cooling fans, and solid-state relays;

Time system: can set the heating time, control the constant temperature time, and automatically stop the machine when the constant temperature time is reached;

Overtemperature protection: Built in secondary overtemperature protection device with dual insurance.;

Operation mode: Full range adjustable constant temperature, constant operation; Program running.

Technical documentation and attachments provided

Operating Instructions

Warranty Card

Main components

LTDE programmable control instrument

Solid state relay

Intermediate relay

thermocouple

Cooling motor

High temperature heating wire

after-sale service:

Responsible for providing remote technical guidance to users

Timely provision of spare parts and accessories for equipment

Provide technical consultation and support during the use of equipment

Immediate response within 8 working hours upon receiving customer fault notification
