Sapphire glass window cutting machine

NegotiableUpdate on 03/16

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Sapphire glass window cutting machine

Product Details

Welcome to personalized customization

A professional customization team can provide personalized customization services according to the needs of customers. If you have such needs, please feel free to consult the customer service hotline: 13751030658.

Welcome to free sampling
Yunteng Laser can provide free sampling services. For technical consultation, process consultation, product consultation, and transportation consultation, please call directly!

Welcome to visit in person
Yunteng Laser's product quality is industry-leading. Welcome to visit and inspect the company on site! Multiple companies designated laser brands and witnessed together.

Product Introduction:

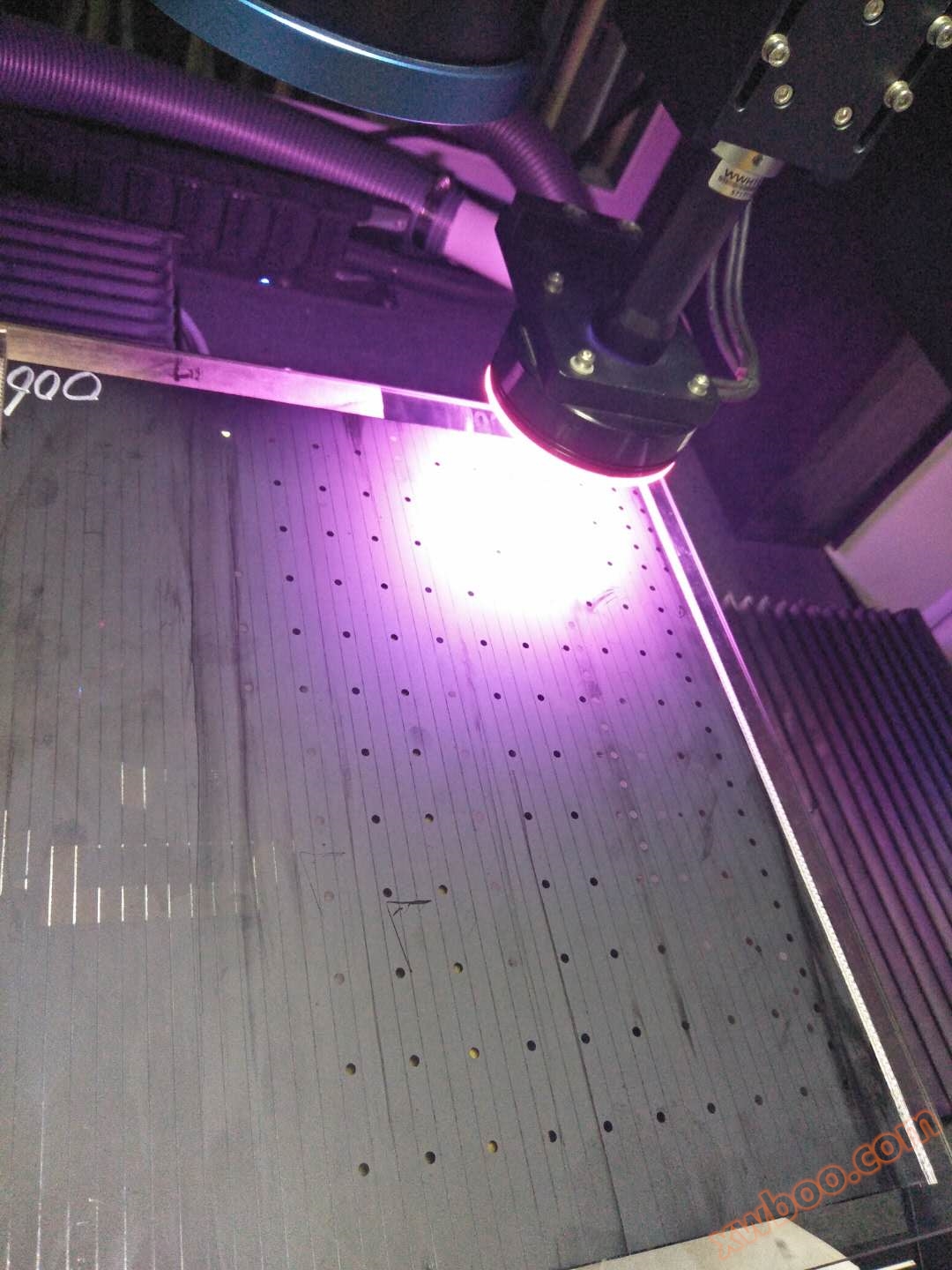

This device is developed for rapid cutting of sapphire mobile phone window pieces, using picosecond laser new process technology. Compared with the original laser scanning processing, it has the advantages of fast speed, small edge breakage, and no taper. The device can also quickly cut various optical glasses.

Adopting picosecond new process technology, it can quickly cut transparent materials such as sapphire and glass;

High dimensional accuracy, small edge breakage, and no taper;

The laser adopts imported picosecond laser with good beam quality, small focusing spot, and high power stability;

The optical system adopts imported lenses to ensure high-quality optical transmission;

The equipment adopts imported high-speed and high-precision linear motors

Equipped with an automated loading and unloading system

Application areas: Sapphire lens cover, Home key cutting, various optical glass burr cutting.

Technical parameters:

PRODUCT MODEL	yt-021w-100W
Laser parameters	laser device	Imported picosecond laser
	average output power	50W
	6-hour power stability	＜2.0%
Equipment parameters	Effective working range	400mm×350mm
	Motion Platform	Imported high-speed and high-precision linear motor
	Z-axis lifting range	100mm
	Options	CCD visual positioning system
process parameters	Size of collapsed edge	<8 μ m (depending on the material)
	dimensional accuracy	±8μm
	conicity	＜2°
	Cutting thickness	≤0.05mm
	cutting efficiency	Sapphire T0.3mm
	Applicable materials	Sapphire, glass
other	Environmental requirements	Temperature: 18-28 ℃

Why choose Yunteng Laser:

First class R&D team

85% of the company's employees have a college degree or above, and more than half of the total number of technical R&D personnel, among which R&D backbone personnel represent the top level in the industry.

Rich industry experience

Since its establishment in 2013, the company has gone through ups and downs, relying on first-class professional technology and strong research and development advantages, successfully providing laser equipment and application services to nearly 300 enterprises in different industries, and accumulating rich industry experience.

Integrated solution

The company has always adhered to the market-oriented approach and taken it as its responsibility to meet the actual needs of customers. Over the years, the company has independently developed and completed industry benchmark projects such as TP silver paste line+ITO automatic positioning etching system for touch screen industry, FPC+PCB high-precision automatic feeding and cutting system, laying a solid foundation for future development!

Focusing on professional cooperation and mutual benefit has been our driving force for many years!

Free solution design

Free sample evaluation

Free quotation consultation

Free trial of standard machines

Please consult relevant business personnel for details.

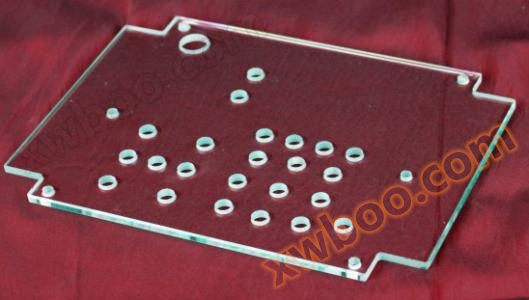

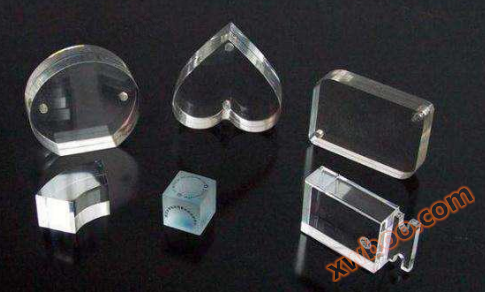

Sample Display：
