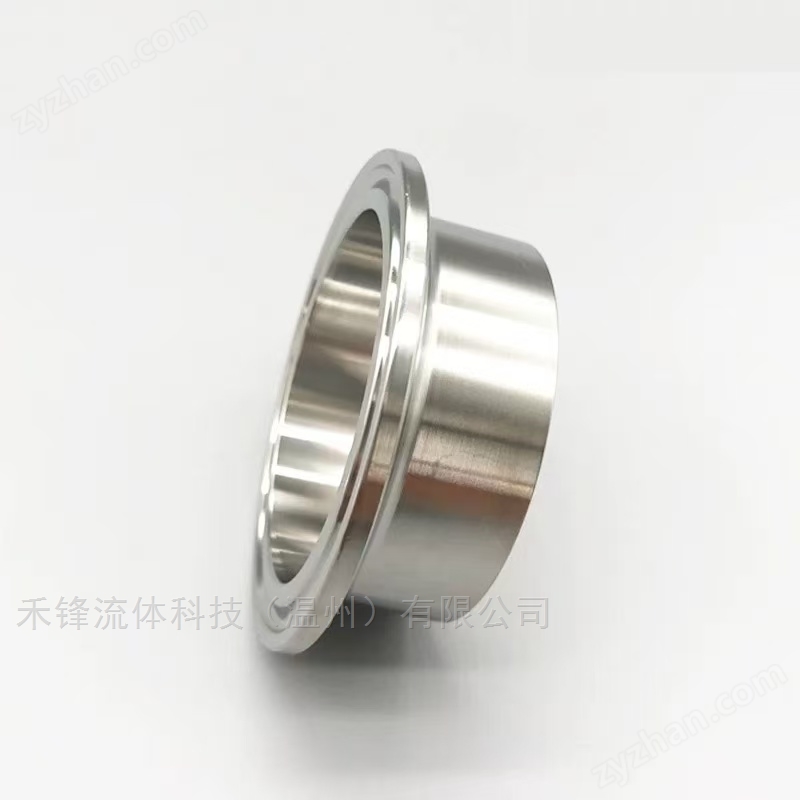

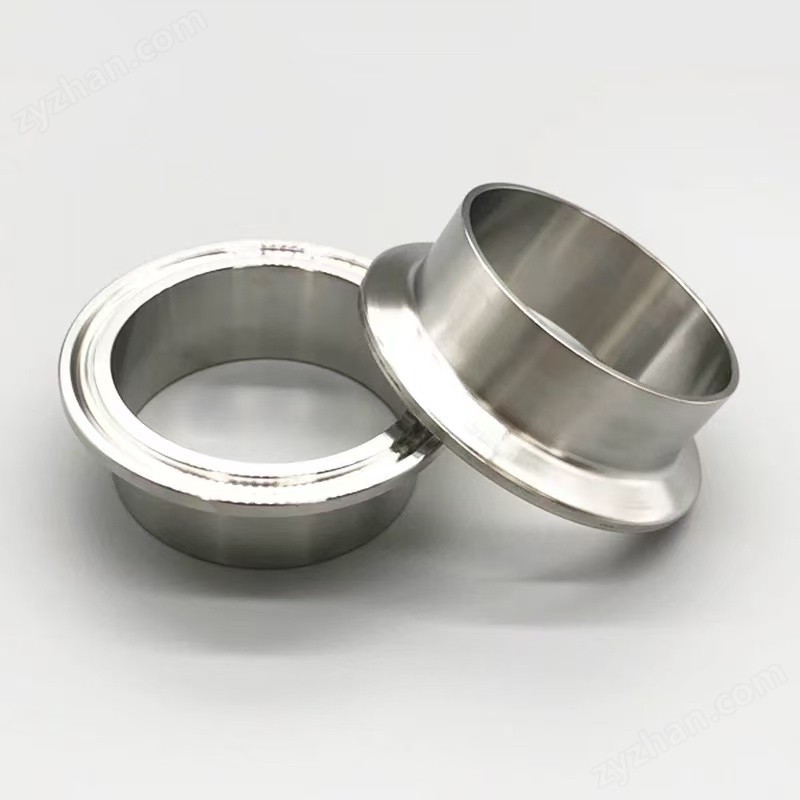

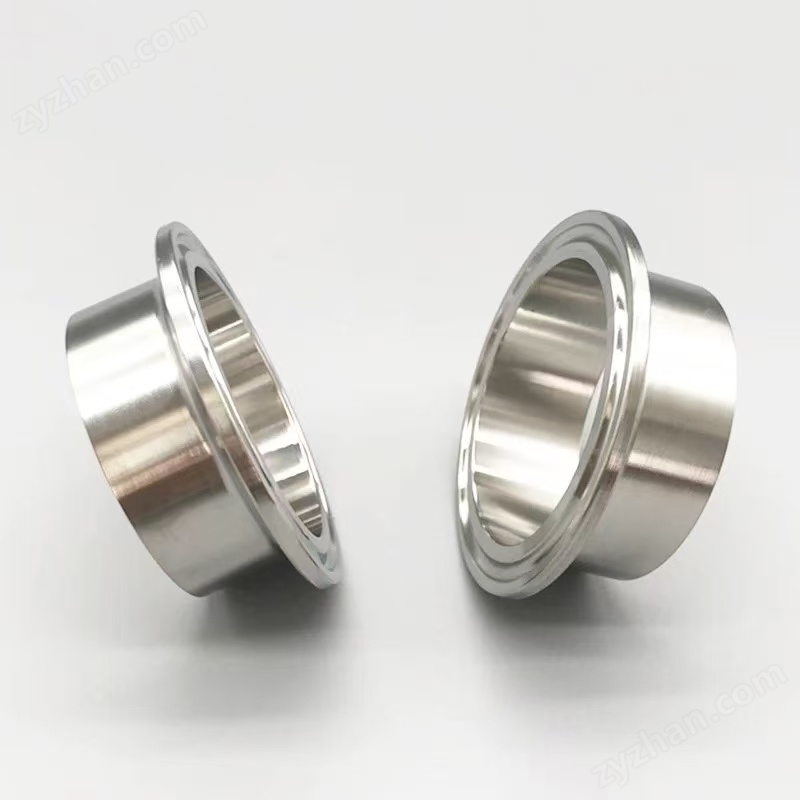

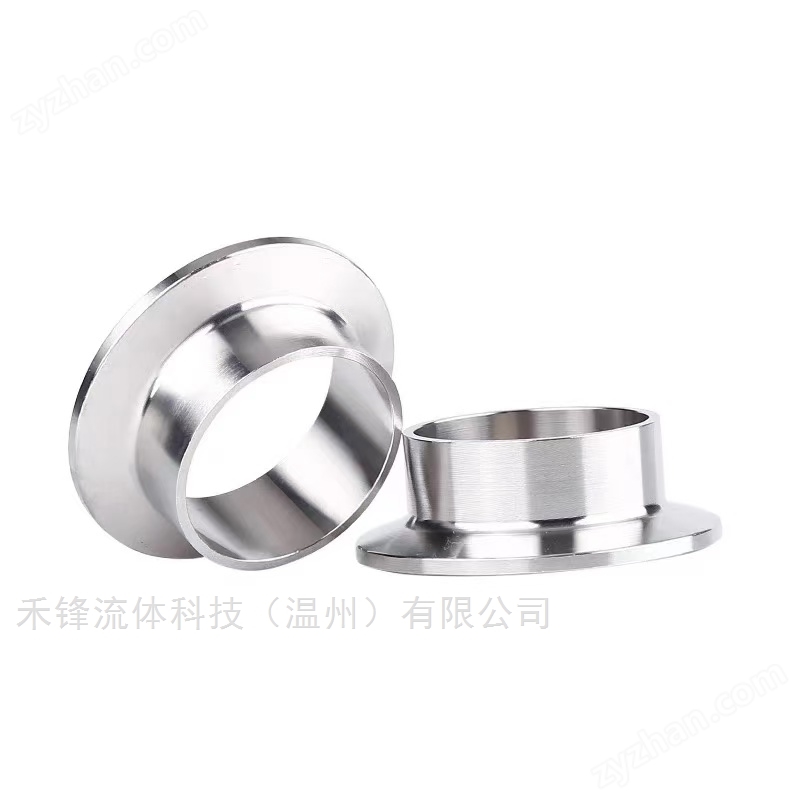

Stainless steel ISO quick connector

Tri Clamp, I-Line, Q-Line fitting joint set consists of two paired fittings and one gasket And a bundle (pipe clamp, clip, clamp) Composed of.

Specially designed for COP (Clean Out of Place) and CIP (Clean In Place) applications, making pipelines and equipment easy to assemble, disassemble, clean, and replace. After the joint is formed, there is no gap or leakage.

Due to its compact size, the pipeline configuration can be more tightly integrated, thereby making more efficient use of production space.

The design of Tri Clamp Union uses wing nuts to tighten and loosen, allowing on-site construction and production line workers to easily and quickly assemble and disassemble. Moreover, Tri Clamp tube bundles can be installed with single rivets, double rivets, or three pieces depending on the assembly requirements.

In addition, if higher pipeline pressure is required, high-pressure pipe bundles fixed with bolts can be chosen.

Hefeng Fluid Technology Co., LtdAll stainless steel food hygiene grade pipe fittings produced are strictly inspected by the Olympus Innov-X Delta XRF Metal Analyzer metal material testing machine, with surface treatment Ra ≤ 0.2μm,0.4μm，0.8μm, Compliant with food hygiene standards, precision processed, easy to weld, assemble, and maintain, sharp edges polished, assembly and maintenance clean without harming hands
