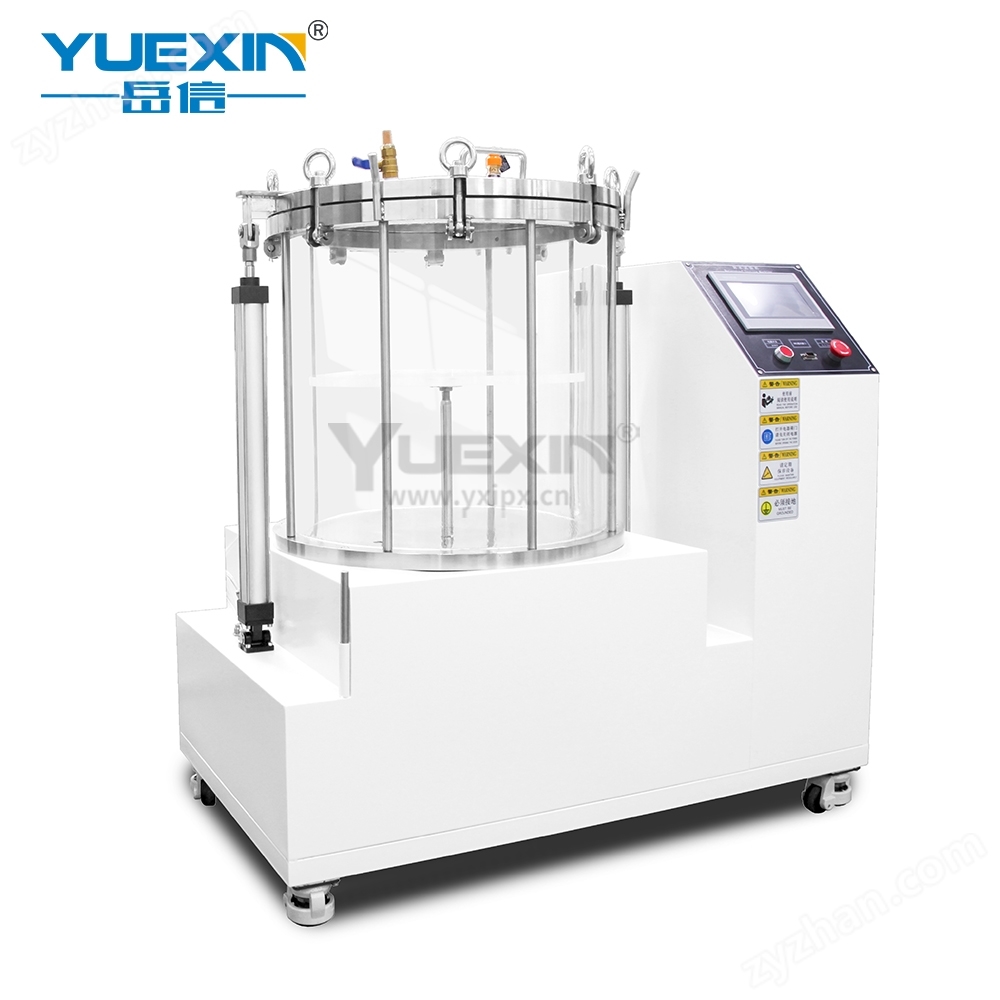

Visual pressure immersion testing machine pool light IPX8 pressure bubble test

IPX8 immersion testing machine

Product Introduction

Visual pressure immersion testing machine pool light IPX8 pressure bubble testSuitable for conducting IPX8 waterproof rating testing on products, the tank body is made of 304 stainless steel material, with high-precision integral sub arc welding forming, good pressure resistance, silicone sealing ring, good elasticity, and is not easily damaged.The main function of this device is to test the physical and other related properties of electronic and electrical products, lamps, cabinets, electrical components, automobiles, motorcycles and their parts under simulated rainy weather conditions. After testing, the performance of the product is evaluated through calibration to determine whether it meets the requirements, in order to facilitate the design, improvement, calibration, and factory inspection of the product.

Applicable fields

Outdoor lighting fixtures, household appliances, automotive accessories, and other electronic and electrical products.

Implement standards

comply with IEC60529:1989 +A1:1999 +A2：2013《Degrees of protection provided by enclosures(IP Code)》、GB4208-2017《 The requirements of clause 14.2.8 of the "Protection Class of Enclosures (IP Code)" and clause 9.2.9 of GB7000.1 "Luminaires Part: General Requirements and Tests".

Product Features

1Visual pressure immersion testing machine pool light IPX8 pressure bubble testSuitable for conducting IPX8 waterproof rating testing on products.

2. The tank body is made of 304 stainless steel material and is formed by high-precision integral sub arc welding, with good pressure resistance.

3. The exterior is a square structure, welded with stainless steel plates, and designed with humanization: 45 ° inclined surface method, button operation; The height of the can lid is moderate, making it easy to operate.

4. Silicone sealing ring, good elasticity, not easily damaged.

5. The tank cover above the equipment is fixed with 8 ring screws (with auxiliary steel bars for delivery).

6. The equipment is equipped with a safety valve that automatically releases pressure when the rated pressure is exceeded, preventing improper operation by operators and setting the pressure too high.

7. The electronic control components are imported brands (such as LS, Panasonic, Omron, etc.); The pneumatic components shall be the original Taiwan, China Yadeke to ensure the service stability and service life of the equipment.

8. The testing time can be set to 0-999 minutes. When the testing time is reached, the pressure supply will automatically stop and the air inside the tank will be automatically discharged. The testing personnel can open the tank lid and take out the test sample.

9. Pressure display: Imported Panasonic brand pressure sensor is used to automatically control the test pressure inside the tank, with a control accuracy of ± 0.002Mpa and a sensor display accuracy of 0.001Mpa.

10. The equipment base is equipped with 4 movable brake wheels for easy movement and fixation.

11. According to customer requirements, holes can be drilled in the tank body to facilitate sample power on testing (please specify in advance).
