WT-300CAS/483KA≤36L/min

NegotiableUpdate on 08/14

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

■ The pump body is a new type of aluminum alloy pump head, equipped with stainless steel pagoda joints as standard. ■ The hinge type quick installation spring pressure block mechanism with adaptive adjustment. ■ The brushless motor drive integrates drive and control, and the whole machine is free of installation and debugging, plug and play. ■ It has three major functions: flow rate, timing, and filling. ■ The external control has RS485 and analog quantity. ■ The flow rate can be adjusted freely from 0.75 to 36L/min, which can achieve 2m ³/h delivery. ■ Biomedical, chemical, environmental protection, juice and beverage dairy industry, printing ink, atomic energy. ■ Appearance design patent name: motor controller. ■ Patent number: ZL201630575426. X

Product Details

Flow reference (L/min, speed: 30-300rpm, test medium: clean water)

Hose model	90#	92#
inside diameter×wall thickness	19×6.3	25.4×4.8
Reference traffic	28	36
be careful:	1.The flow data in the above table was measured using clean water at room temperature in Jieheng Laboratory and is for reference only 2.The material of the hose, the tolerance of the hose size, the viscosity of the conveying medium, the suction and head can all affect the flow rate 3.When transporting different liquids, the compatibility between the liquid and the hose needs to be considered. For details, please click on the reference:Chemical Compatibility Table 4.The lifespan requirements for hoses vary depending on the application scenario. Please refer to the hose lifespan table for details

Function Introduction:

■Equipped with a replacement 483KA pump head and a self created hinge type pressure block mechanism, the hose can be quickly replaced without disassembling the pressure block.
The pump body is made of aluminum alloy and formed by high-precision CNC machining. It comes standard with stainless steel pagoda joints and 304 stainless steel wheel sets.
The hinge type spring pressure block mechanism with adaptive adjustment can also be manually adjusted, especially suitable for conveying viscous fluids containing particles.
The pump head and drive control are designed as one unit, and the whole machine does not require installation and debugging. It can be used by inserting a 220V power supply.
■ With a flow rate of up to 36L/min (2m ³/h), it is driven by a brushless motor and has a total power of only 300W.
■ Operation display: Adopting a true color LCD display interface, with thin film buttons and rotary encoder switches for operation.
Main functions: flow conveying, timed conveying, and filling distribution (infrared sensing for bottle shortage and stopping).
Basic functions: start stop, forward and reverse rotation, full speed emptying, intermittent operation, stop and anti drip suction angle setting.
External control functions: foot switch, infrared switch, analog signal, RS485 communication protocol.
Output signal: Two relays with a capacity of 1A output pump operation and direction signals respectively.
Memory function: The pump's set parameters and operating status are automatically memorized and saved.
Other functions: Equipped with clock display, environmental temperature detection, operation prompt sound, Chinese operation instructions, and other functions.

Technical parameters:

speed range	30～300rpm
Flow range	0.75～36L/min
External dimensions	L435×W367×H308
work environment	0-60 ℃, relative humidity less than 85%
Power supply power	Single phaseAc220V 50/60Hz, power 300W
Enduring pressure	≤0.27Mpa (hose outlet back pressure)
protection grade	IP31
Whole machine weight	36KG

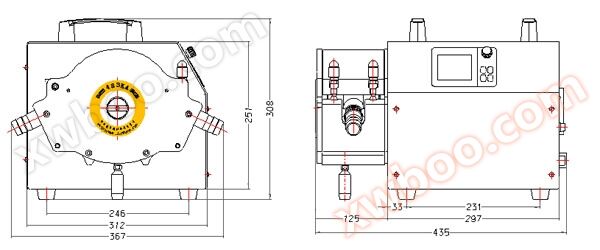

WT-300CAS/483KA Outline Dimensional Drawing:

杰恒蠕动泵WT-300CAS/483KA外形尺寸图
