Watch glass material laser marking machine

NegotiableUpdate on 03/16

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Watch glass material laser marking machine

Product Details

Welcome to personalized customization

A professional customization team can provide personalized customization services according to the needs of customers. If you have such needs, please feel free to consult the customer service hotline: 13751030658.

Welcome to free sampling
Yunteng Laser can provide free sampling services. For technical consultation, process consultation, product consultation, and transportation consultation, please call directly!

joyousWelcome on-site visits

Yunteng Laser's product quality is industry-leading. Welcome to visit and inspect the company on site! Multiple companies designated laser brands, witnessed by multiple companies together

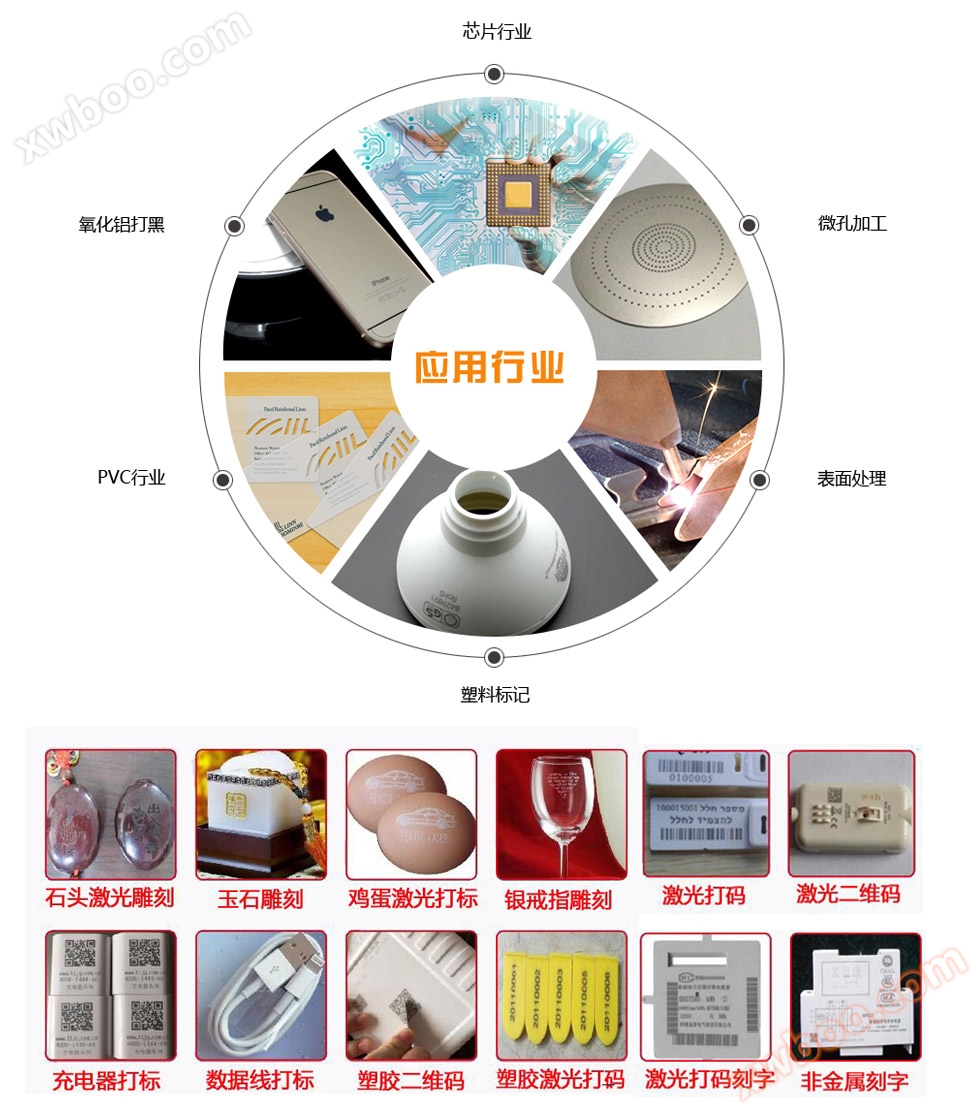

Watch glass panelUV laser marking machineIt belongs to the series of laser marking machines, but it is developed using a 355nm ultraviolet laser. Compared with infrared lasers, this machine adopts third-order intracavity frequency doubling technology. The 355 ultraviolet focused spot is extremely small, which can greatly reduce the mechanical deformation of materials and minimize the impact of processing heat. Because it is mainly used for ultra fine surface and engraving, it is particularly suitable for marking food and pharmaceutical packaging materials, micro hole drilling, high-speed division of glass materials, and complex graphic cutting of silicon wafers By integrating advanced international technology, high-energy ultraviolet photons directly break the molecular bonds on the surface of many non-metallic materials, causing molecules to detach from the object. This method does not generate high heat, and the ultraviolet laser focuses on a very small spot, with almost no thermal impact during processing. Therefore, it is called cold processing and is suitable for ultra fine marking and engraving of special materials.
Advantage

Focusing spot is extremely small, processing heat effect is minimal, ultra-fine marking, special material marking, no thermal effect, and no material burning problem.

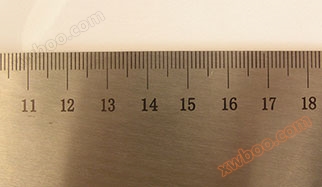

The minimum focused spot of the ultraviolet laser can reach 15 μ m, and the focused spot is smaller, which can achieve ultra-fine marking and is very suitable for micro hole drilling processing.

Stable performance, long service life, environmentally friendly, and no consumables.

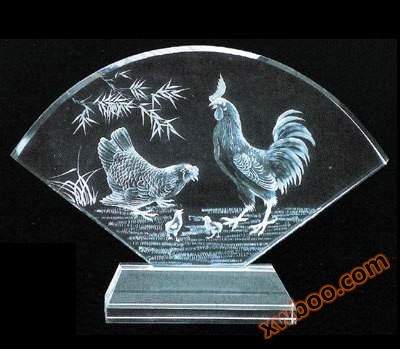

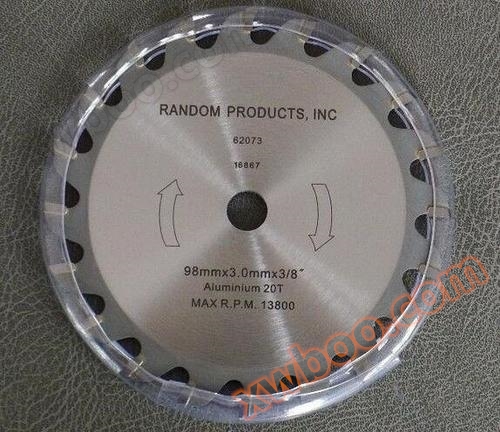

	The marking effect is perfect The heat affected zone is very small, and the results of marking and cutting are precise, smooth, and free from thermal effects Once known by customers as the true "king of marking"
High electro-optical conversion rate No power coupling loss, saving operating costs, long service life of laser Maintenance free, 100000 hours without consumables
	Integrated overall structure Compact and compact, occupying a small area, convenient for transportation
Fast marking speed and high efficiency Significant increase in processing volume within the same time frame, accelerating user investment return

Product Technical Parameters

power	3W/5W
Beam Quality	M2 <1 .1
Laser output power	0%~100% continuously adjustable
laser output frequency	5KHz~80KHz continuously adjustable
Power stability (8h)	＜±1%rms
Focusing spot diameter	＜0.01mm
Tag type	Dynamic tagging/static tagging
Marking speed	800 standard characters
Minimum line width	≤0.005mm
Minimum character	0.15mm
repeatability	±0.003mm
laser device	imported with original packaging
System operating environment	WindowsXP/2000/98
Cooling method	forced air cooling
Ambient temperature	15℃~35℃
Power demand	220V/single-phase/50Hz/<800W
Laser module lifespan	20000 hours

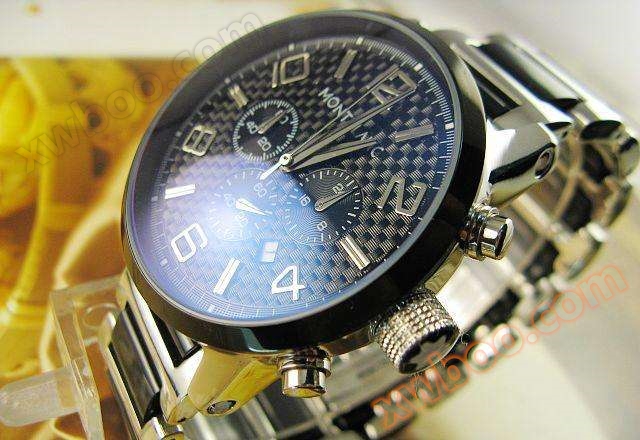

timg (2).jpg
