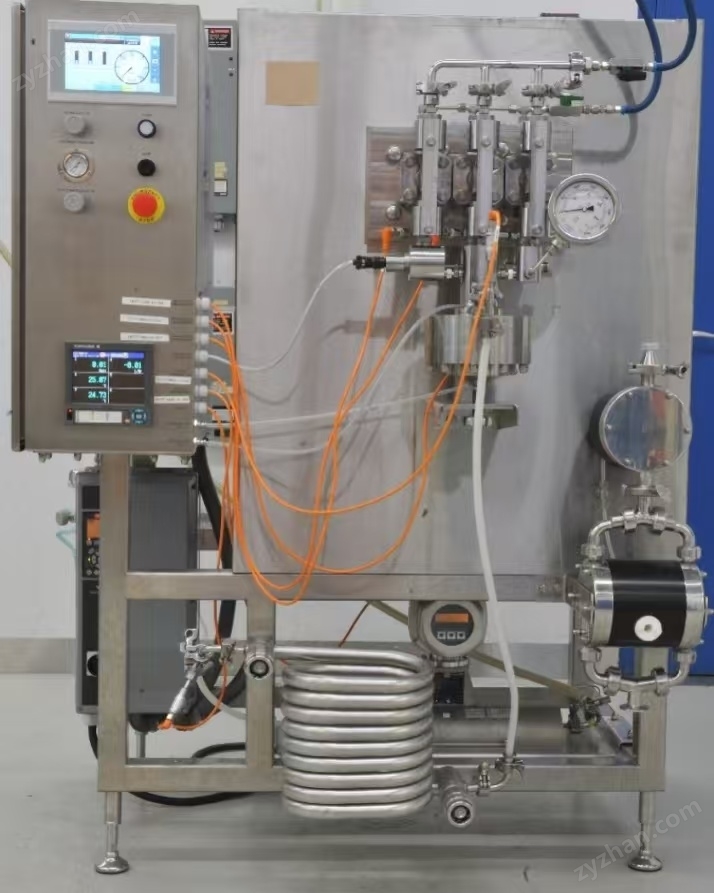

Avestin Ultra High Pressure Nano Homogenizer

Avestin Ultra High Pressure Nano Homogenizer

1. AVESTIN　EFSeries homogenizer up to30,000psi/200MPaHomogeneous pressure, capable of long-term continuous processing.

2. AvestincompanyEFHomogenizers are widely used in cell wall breaking, liposome development in the pharmaceutical industry, emulsion formulations, and suspended particles.

3. For the fine dispersion of nanocrystals,AVESTINThe homogenization effect can be achieved100nmThe following is a true nanoscale homogenizer.

4. At the same time, the minimum trial usage of the equipment can reach7mlVery suitable for the research and development of expensive drugs and preparations.

5. EFThe homogenizer also adopts designs such as direct steam disinfection and no sealing rings throughout the product channel. All materials used have been approvedGMPStandards and the US Food and Drug Administration（FDA）Certification.

6. AVESTINThe equipment manufactured is imported from Canada to ensure high quality and technological content of the equipment.

Avestin Ultra High Pressure Nano Homogenizer

Technical Specifications:

lmanufacturer:Avestin Inc.，Ottawa，Canada

lModel:EmulsiFlex-D20

lProduct applications: development of cell lysis, liposome drugs, emulsions, fine dispersion of suspensions, beverages, food and other fields

lworking pressure:35,000Psi,The actual operating pressure can reach30,000Psi-2070bar

lProcessing capacity:20L/h

lMinimum sample processing capacity:50 milliliter

lSample residue: less than1ml

lPower end: Electric single plunger

lvolume730 X 600 X 640millimeter

lpower supply:Electric double plug pump,Universal three-phase power supply, 50/60Hertz, 230/400ambush

lWeight:120kilogram

lsecurity control:Automatic cut-off control box circuit protection function, can temporarily overpressure20%function.

lOptional accessories: filter extruder, heat exchanger

lEquipment components: compliantGMPandFDAHygiene standards.

lEquipment material: made of acid resistant, alkali resistant, high temperature resistant, wear-resistant, tensile resistant, and corrosion-resistant materials316LMade of stainless steel. The core components are adopted Made of special ceramics, Durable and long-lasting.

lCleaning: The homogenization valve and pump body are free of any impuritiesOThe rings or gaskets are all connected by metal structures within the path, without dead corners or secondary pollution.
