GE DynaPOCKET Integrated Hardness Tester

product description

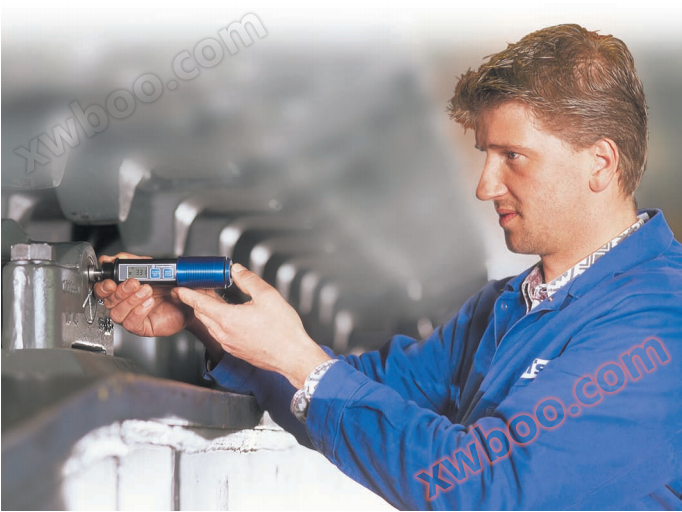

GE's integrated pocket hardness tester DynaPOCKET adopts a wireless integrated design. Based on the principle of rebound, the working mechanism adopts specialized signal processing technology. This device can automatically compensate for the influence of gravity based on the testing direction. Whether on hard or non transportable components, even in places that are difficult for other hardness testers to reach, our products make it easy to conduct on-site hardness testing.The hardness value displayed in numerical form. You can directly read the measured hardness value on a large LCD display. At the same time, the selected hardness scale (HL in this case) and the average value x of the options are displayed. The battery icon can inform you of the current battery charging status.In the setting or configuration mode, you can choose different settings, such as the required hardness scale (SCAL) or material group (MAt). Other setting options: Conversion between single value and average value according to DIN 50150 and ASTM E 140, or customized conversion for instruments.

Advantage

Pocket sized, cable free design, combining impact equipment and display screen into one Working according to the principle of Leeb rebound, using special signal processing techniques. Capable of sensing test direction and automatically compensating for gravity effects Two key operation, simple and clear Hardness measurement does not need to be constrained by the direction of impact The hardness value is directly digitized and displayed on the LCD screen Capable of displaying individual measurement values as well as average values There are standard conversion tables available for 9 material groups Hardness values can be converted between HL, HV, HB, HS HRB, HRC, and N/mm2 hardness standards Measurement range (varies by material) 150 to 1000 HL75 to 1000 HV, 75 to 700 HB 30 to 100 HS, 35 to 100 HRB, 20 to 70 HRC, 250 to 2200 N/mm2 Measurement accuracy (standard version) is ± 4 HL or 0.5% at 800HL Suitable for standard batteries (2 x AAA)

The material groups for measuring Leeb (HL), Shaw (HS), Brinell (HB), Rockwell B (HRB), Rockwell C (HRC), Vickers (HV), and tensile strength (N/mm ²) are low alloy/non alloy steel and cast steel. DynaPOCKET can also convert according to standard specifications DIN 50150 and ASTM E 140. The customized conversion table for the instrument is applicable to other materials.

Technical Parameter

The measurement range depends on the material composition, such as low alloy steel: 150-1000 HL; 75-1000 HV; 75-700 HB; 35-100 HRB; 20-70 HRC; 30-100 HS; 250-2200 N/ mm²;
