Renishaw M2 series direct measuring needle from Renishaw, UK

NegotiableUpdate on 02/09

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

The Renishaw M2 direct probe is suitable for detecting simple features that can directly contact the surface being tested without obstruction. Tungsten carbide measuring rods have excellent rigidity, especially suitable for measuring needles with smaller measuring balls and rod diameters. Ruby is widely recognized as the industry standard material for measuring needles, and it is currently one of the hard materials available, suitable for most applications.

Product Details

Product description

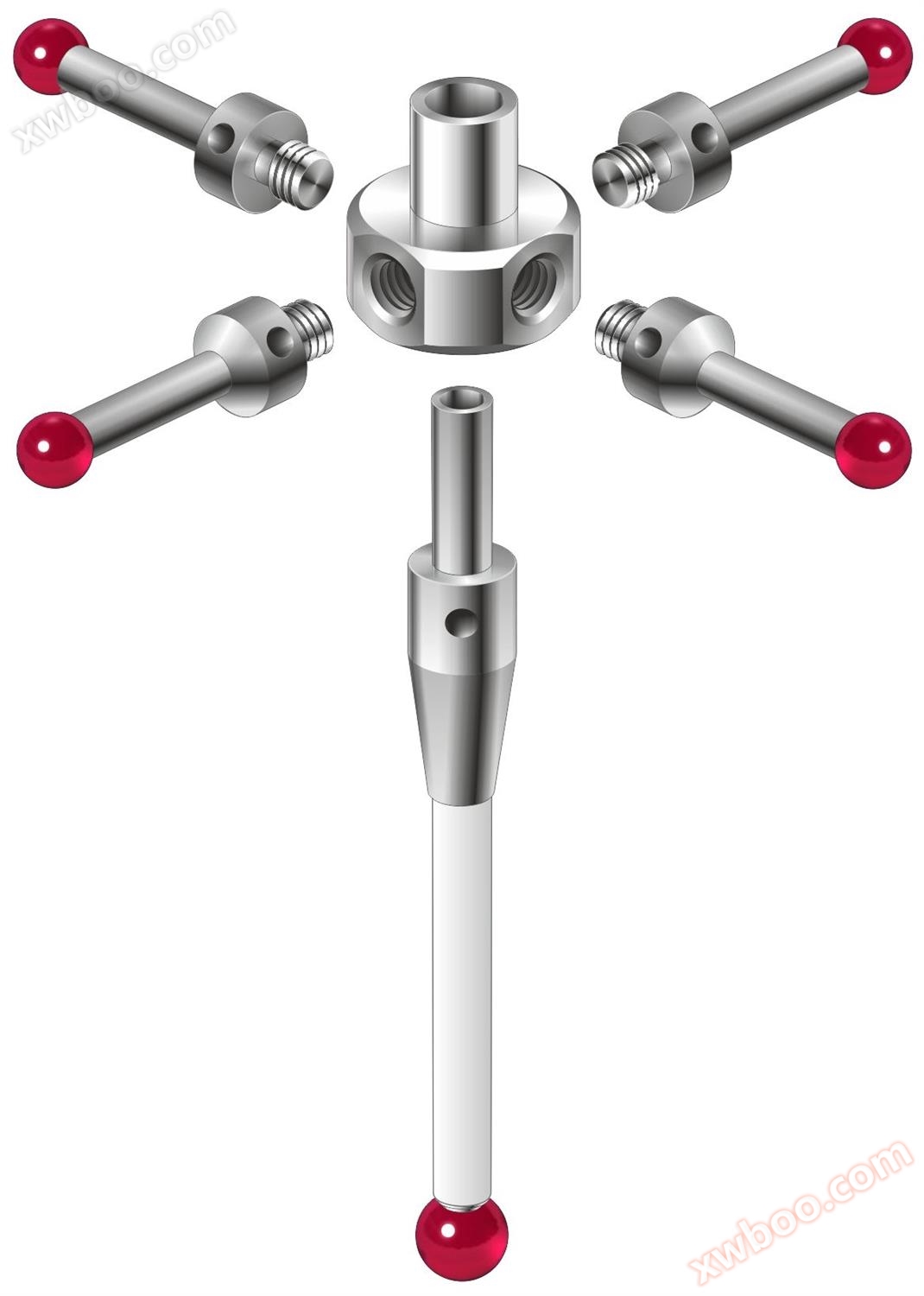

Renishaw offers a complete range of precision measuring needles and needle accessories, which can be used in our coordinate measuring machine probes, machine tool probes, scanning probes, and Equator ™ On the comparator.RenishawThe M2 direct measuring needle is suitable for detecting simple features that can directly contact the measured surface without obstruction. The star shaped probe center provides excellent measurement flexibility for a single probe and allows for customized probe configurations.Direct measuring needle is a simple and commonly used type of measuring needle, suitable for most measurement applications,Direct measuring needles are suitable for detecting simple features that can directly contact the surface being measured without obstruction.

Probe application:
Probe measurement is a widely recognized ideal method for maximizing the efficiency, quality, capability, and accuracy of machine tools. The standard program is built into modern CNC controllers, simplifying the measurement cycle of the probe and the integration process of machining operations and offline tools. These programs, when combined with CAD interfaces, can easily simulate measurement functions. For many industries that use machine tools, Renishaw probes can significantly reduce costs and improve quality in all applications.

The following are the material characteristics of the measuring needle:

1. Tungsten carbide measuring rods have excellent rigidity, especially suitable for measuring needles with smaller measuring balls and rod diameters.

2. Ruby is widely recognized as the industry standard material for measuring needles, and it is currently one of the hard materials available, suitable for most applications.

Due to adhesive wear, it is not recommended to use ruby measuring needles when scanning aluminum workpieces.

3. Stainless steel measuring rods have excellent rigidity and are very suitable for applications that do not require very high weight.

4. The ceramic measuring rod is lightweight but highly rigid, and has excellent collision protection characteristics.

The weight of the carbon fiber measuring rod is very light, making it very suitable for applications with strict weight requirements.

5. In terms of physical properties, silicon nitride is very similar to ruby, and its lower friction coefficient makes it very suitable for most scanning applications, especially when scanning aluminum workpieces

Selection List:

M2 Ø0.3 mmRuby measurementBall, tungsten carbide measuring rod,length10 mmEffective working length2 mm	Order Number: A-5000-7800
M2 Ø1.5 mmRuby measuring ball,carbonTungsten carbideMeasuring rod, length20 mmEffective working length12.5 mm	Order Number: A-5003-0034
M2 Ø2.5 mmRuby measuring ball, stainless steelSteel measuring rod, length20 mmEffective working length16.4 mm	Order Number:A-5000-7804
M2 Ø3 mmRuby measuring ball, ceramic measuring rod, length30 mmEffective working length27 mm	Order Number: A-5003-4177
M2 Ø4 mmHongbaoStone measuring ball, carbon fiber measuring rod, length100 mmEffective working length100 mm	Order Number: A-5003-2289
M2 Ø4 mmRuby measuring ball, carbon fiber measuring rod, length30 mmEffective working length30 mm	Order Number: A-5003-4241
M2 Ø4 mmRuby measuring ball, potteryCeramic measuring rod, length50 mmEffective working length50 mm	Order Number: A-5003-0065
M2 Ø5 mmRuby measuring ball, carbon fiber measuring rod, length50 mmEffective working length50 mm	Order Number: A-5003-2286
M2 Ø6 mmRuby measuring ball, carbon fiber measuringRod, length75 mmEffective working length75 mm	Order Number: A-5003-4786
M2 Ø1 mmRuby measuring ball, stainless steel measuring rod, length10 mmEffective working length4.5 mm	Order Number: A-5000-7806
M2 Ø1mmRuby measuring ball star shaped measuring needle center, tungsten carbide measuring rod, length8.5 mm， working length3.5 mm	Order Number:A-5003-4789
M2 Ø3 mmRuby measuring ball, carbon fiber measuring rod, length40 mmEffective working length37.5 mm	Order Number: A-5003-3877
M2 Ø0.3 mmRuby measuring ball, tungsten carbide measuring rod, length20 mmEffective working length2 mm	Order Number: A-5004-7398
M2 Ø1 mmRuby measuring ball, tungsten carbide measuring rod, length27.5 mmEffective working length20.5 mm	Order Number: A-5000-8663
M2 Ø4mmRuby measuring ball, stainless steel measuring rod, length10 mmEffective working length10 mm	Order Number: A-5000-4154

To learn more about the Renishaw M2 straight probe, please feel free to leave a message for product information or call for consultation!
