Product Description

The German FISCHER Fischer ANOEST YMP30-S density tester uses robust measurement techniques to test the density of anodized aluminum,ANOTEST®YMP30-S，The density and quality of the anodized coating (anodized aluminum) on aluminum are the determining factors for its weather resistance. FISCHER's ANOTEST YMP30-S can measure admittance Y and reliably provide quality information about the density of anodized aluminum coatings. Its compact structure makes this durable handheld device an ideal instrument for on-site measurements.

	ANOTEST YMP30-S Features Large LCD display Battery or AC power line operation Insert the probe into the battery and start automatic measurement Automatically calculate admittance based on standard dimensions Poor sealing signal (e.g. Y>15 μ S) Measure the acoustic signals at the beginning and end of the measurement process; Automatic shutdown Statistical evaluation and storage of up to 10000 measurement values in up to 100 applications 8 languages to choose from Connect RS232 interface to printer or PC
	ANOTEST YMP30-S Characteristics Equipped with cable probes, it is very suitable for measuring difficult to reach measurement points Compliant with DIN EN: ISO12373-5 and ASTM B 457-67 standards Automatically start the measurement process Efficient and structured measurement; Adequate memory for thousands of applications and multiple evaluation functions ANOTEST YMP30-S Application Quality testing of Flat noodles and other anodized building components Simple and reliable on-site measurements, such as during facility cleaning

Sealing quality tester

The weather resistance of the anodized film used in the sealing quality tester for aluminum, which complies with the standards DIN EN ISO 2931 and ASTM B 457-67, is a basis for evaluating the sealing quality. According to DIN EN ISO 2931 and ASTM B 457-67, the admittance (Y) of the capacitor where the anodic oxide film forms the dielectric is an important standard for sealing quality. ANOTEST®YMP30-S measures admittance according to standards, and its design is also very suitable for on-site testing.

Measurement program

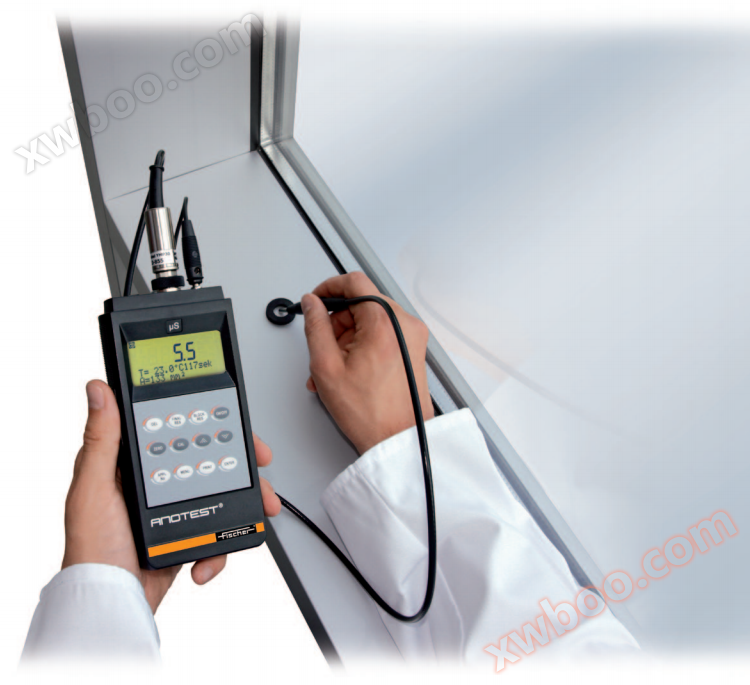

Place the self-adhesive rubber ring on the surface to be tested and fill it with a few drops of testing liquid in a closed space. Then connect the aluminum substrate to the grounding socket and immerse the test electrode in the test liquid to form a capacitor, where the anode film exists as a dielectric. At this point, the admittance of the capacitor can be measured and directly expressed in μ S (micro Siemens).
