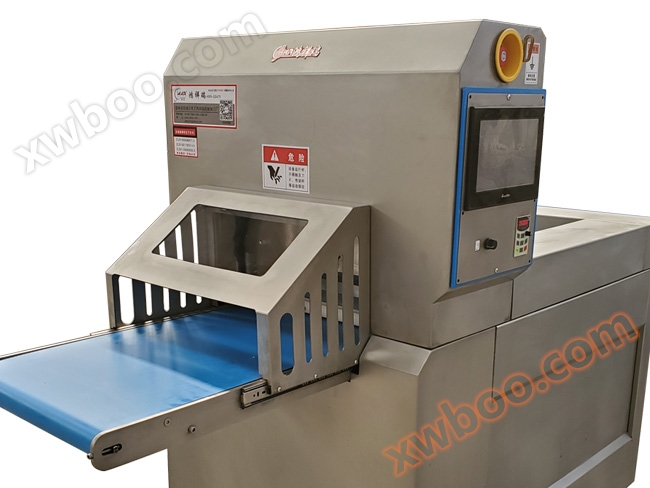

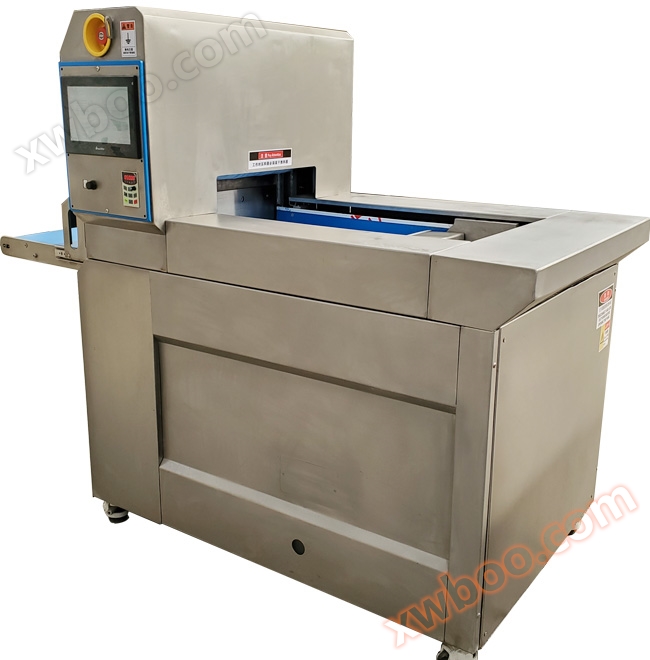

HXR-GS500

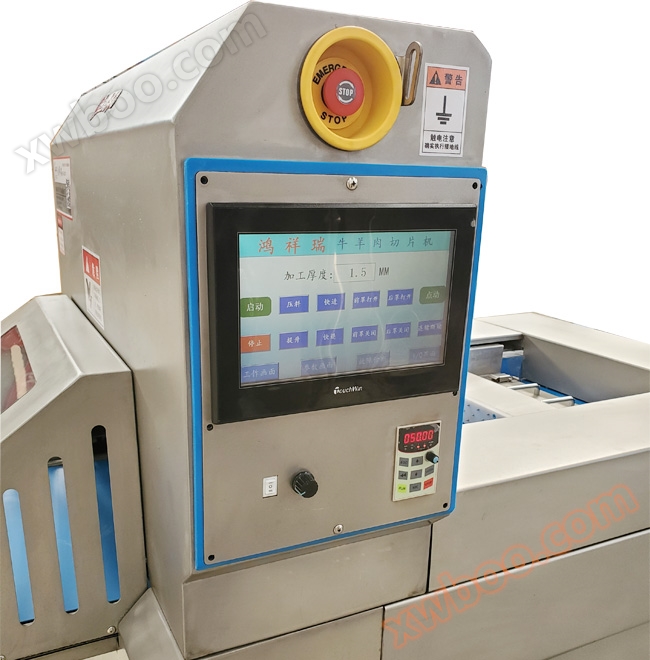

This series of products is a high-end model that complies with food safety management regulations, carefully crafted for formal group food processing plants, restaurants, canteens and other formal meat processing workshops. The entire equipment is made of food grade 304 stainless steel material, and the working platform and material contact surfaces are made of food specific materials. The CNC system and distribution cabinet use waterproof materials, effectively preventing water and moisture from affecting the electrical appliances. High wear resistance and rust prevention The entire machine can be directly rinsed and disinfected with a high-pressure water gun;
This series of products has multiple national patents and has been effectively implemented in this equipment. This device has an automatic material pressing function to achieve automatic material pressing; The material pressing method is pneumatic pressing+gate pressure claw type pressure feeder, which perfectly and effectively solves the cutting problem of irregular materials; This device also has a knife speed adjustment function, and the cutting speed can be adjusted within the range of 50-120 times per minute, with high efficiency and wide applicability
This device can be efficiently applied in high-speed cutting, shredding, slicing, and rolling of various meats such as steak, bacon, pork belly, pork belly, ham, beef and mutton.
This series of equipment is independently developed and produced by our company, and has multiple national patent protections!
Patent number: ZL.5
Patent number: ZL.6
Patent number: ZL.X
Please do not imitate, imitation will be prosecuted!!!

HXR-GS500Equipment parameters I Equipment parameters :

Equipment model	HXR-GS500
Equipment type:	HXR-GS500
rated voltage	380V/（3(Xiang)50HZ
Voltage (V/Hz):	380V/(3mutually) 50Hz
total power:	5.5kW
Total power :	5.5 KW
Knife speed:	50--120knife/Minutes (adjustable)
Cutter speed:	50 - 120 knife/min
slice thickness:	0.1-200mm
Slice thickness:	0.1-200 millimeter
Pushing schedule:	800mm
Pusher stroke	800mm
Cutting height	250mm
Cutting height	250mm
Effective cutting height	210mm
Effective cutting height	210mm
blade length	500mm
blade length	500mm
External dimensions	2180mm*960mm*1470mm
Shape size:	2180mm*960mm*1470mm
Net weight:	600kg
Net weight :	600 kg
