Renishaw RMP60 radio bed probe from the UK

Product description

Ultra small workpiece measuring head using wireless signal transmission method:

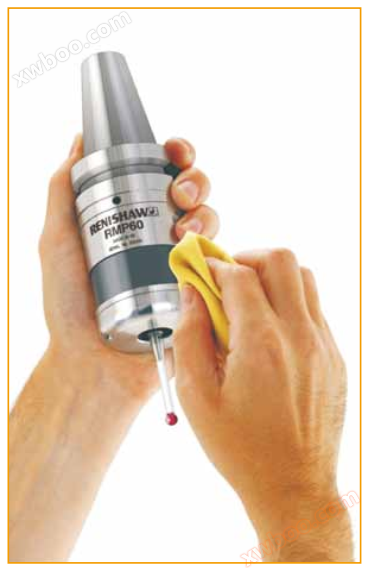

RMP60 is an ultra small workpiece measuring head that uses wireless signal transmission. It can perform automatic workpiece alignment and sequential measurement on machining centers, including five axis machine tools. The traditional Renishaw mechanical resistance probe mechanism in RMP60, combined with a special and reliable frequency modulation transmission protocol, makes it an ideal choice for today's machining workshops. Due to the harsh working environment, the probe and interface cannot be kept in a visible position for a long time.

Features and advantages: Mature motion mechanism design. Reliable Radio Frequency Hopping (FHSS). The globally recognized 2.4 GHz frequency band - compliant with all major market radio communication standards. Ultra small design. Various activation options and adjustable force measurement. 1 μm 2σ 重复性。 Main applications: Perform workpiece inspection and alignment on multifunctional machine tools, machining centers, and gantry machining centers. Transmission type: Frequency hopping radio (FHSS) Radio frequency 2400 MHz to 2483.5 MHz Radio approval regions include China, Europe (all member states of the European Union), Japan, and the United States. For details on other regions, please contact Renishaw. Compatible with RMI or RMI-Q interfaces The working range is up to 15 meters Recommended ceramic measuring needles, with lengths ranging from 50 mm to 150 mm Weight without handle (including battery) 876 g Induction direction ± X, ± Y,+Z Unidirectional repeatability 1.00 μ m2 (see Note 1) Needle force measurement (see notes 2 and 3) XY low force measurement Protection level IPX8 (EN/IEC 60529) Working temperature+5 ° C to+55 ° C

Probe measurement software options

The following software packages can be used to write probe measurement programs for workpiece alignment and detection in CNC machining centers.

• GoProbe- Entry level software package for simple workpiece settings and tool alignment programs.
• Inspection Plus Enhanced Workpiece Measurement Software A comprehensive software package that includes a detection loop program for vector measurement.
• Productivity+™ Active Editor ProA computer software package with a graphical user interface (GUI) that allows users to directly select features from imported CAD models.
