Renishaw SP25M Multi purpose Scanning Probe from the UK

NegotiableUpdate on 02/09

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

GalvanoTest is a device based on Coulomb principle for measuring coating thickness, which can be used for almost all electroplated single-layer or multi-layer coatings. Chromium, nickel, cadmium, copper, brass, silver, gold, tin, zinc and other electroplated coatings can be measured on metal or non-metal surfaces. The Coulomb electrolytic film thickness gauge produced by Germany's EPK is mainly aimed at some electroplated parts in the plastic, film and other industries, such as galvanizing, silver plating, copper plating on plastics. GALVANOTEST 2000 can test the thickness of single-layer or multi-layer coatings. Electrolytic film thickness gauge, also known as Coulomb coating thickness gauge.

Product Details

Product description

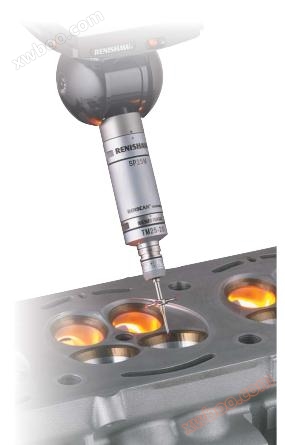

With a diameter of only 25 mm and equipped with a series of scanning and triggering modules, the SP25M is the world's smallest multi-purpose scanning probe system.The SP25M consists of two sensors, contained within a casing. Users can choose any one of the five scanning modules (capable of installing M3 probes with lengths ranging from 20 mm to 400 mm) and switch with the adapter module (compatible with Renishaw's TP20 series probe module). This function can be implemented in a single probe system for scanning and triggering measurements.The compact size and automatic suction installation function of SP25M make it compatible with PH10M PLUS/PH10MQ PLUS and PH6M measuring sockets. It can also be installed on a multi-core extension rod with automatic adsorption. At the same time, these combinations have excellent tactile capabilities, making it easy to detect various component features.

Features and advantages
The world's smallest scanning probe, with a diameter of only 25 mm, is equipped with two FCR25 three port devices for MRS [180] A series of FCR25 module switching systems, each of which allows various SP25M system components to be stored in each port. The SM25 scanning module and TM25-20 TTP module adapter can be directly stored in the FCR25 port SH25 scanning probe holder requires PA25-SH adapter The TP20 module can be stored using the PA25-20 adapter SP25M module and probe holder
FCR25 automatic exchange rack
A series of FCR25 module switching systems, each of which allows various SP25M system components to be stored in each port. The SM25 scanning module and TM25-20 TTP module adapter can be directly stored in the FCR25 port SH25 scanning probe holder requires PA25-SH adapter The TP20 module can be stored using the PA25-20 adapter

SP25M system:

A series of module components enable SP25M users to enhance their probe measurement capabilities over time. Each SM25 # scanning module has been optimized in terms of gain and spring rigidity, and can adapt to the specified range of probe lengths. Each module has a matching SH25- # probe holder. The SH25-3 and SH25-4 probe holder is a fixed carbon fiber rod with an M3 probe installed on it, providing a suitable working length. Meanwhile, when using the SM25-1/2/3/4/5 scanning module and the original standard probe holder (SH25-1/2/3/4/5), the SP25M can be equipped with a crank type (non straight) probe configuration. However, in situations where a large bias is required to achieve good measurement performance, Renishaw recommends using the SH25-2A/3A/4A series probe holder, which is specifically designed to address issues that may arise from such probe combinations.

SM25-1
Used with SH25-1
Measuring needle length: 20 mm to 50 mm

Used with SH25-2
Measuring needle length: 50 mm to 105 mm

Used with SH25-3
Measuring needle length: 120 mm to 200 mm

Used with SH25-4
Measuring needle length: 220 mm to 400 mm

Used with SH25-5,

Used for combination of non direct measuring needles and star shaped measuring needles

Measuring needle length: 20 mm to 100 mm

TM25-20 TTP adapter module
Paired with TP20 trigger module and extension rod

FCR25:
MRS equipped with two FCR25 three port devices
The three port device is suitable for installation on the MRS module switch rack system.

FCR25 port adapter plug assembly:
PA25-SH and PA25-20 inserts are used to store SH25- # probe holder or TP20 probe module.

FCR25-L3:
A three port standalone device for small coordinate measuring machines (CMM) and optical coordinate measuring machines.

FCR25-L6:

A six port standalone device for smaller coordinate measuring machines and optical coordinate measuring machines.
