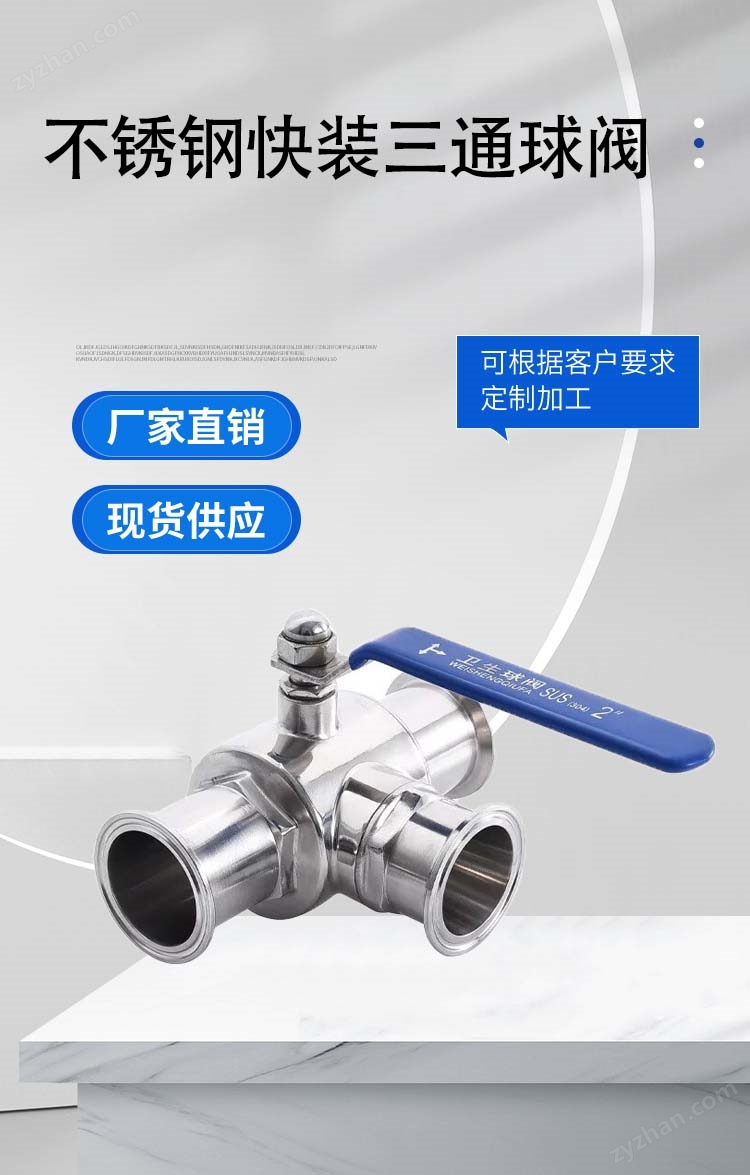

Stainless steel quick install three-way ball valve

NegotiableUpdate on 02/21

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Stainless steel quick release three-way ball valve is a rotary valve that integrates sanitary quick release connection and three-way flow control function. Its core is used for controlling the flow direction switching, diversion (one in two out) or merging (two in one out) of media in pipeline systems. With the advantages of fast disassembly, reliable sealing, and compact structure, it is widely used in sanitary fluid transportation scenarios such as food, pharmaceuticals, dairy products, beverages, and pure water treatment.

Product Details

Stainless steel quick install three-way ball valveworking principle

The quick release three-way ball valve drives the valve stem to rotate through the driving device, and then drives the valve core (ball) to rotate from 0 ° to 90 °, achieving the switching and on-off control of the flow channel:

1. Opening and switching: When the valve core rotates to the corresponding angle, the flow channel is connected to the preset channel, and the medium can pass smoothly (for example, when the L-shaped valve core rotates 90 °, it can switch between A → B and A → C channels, and when the T-shaped valve core rotates to a specific angle, it can achieve merging or splitting of A → B → C channels);

2. Closing: When the valve core rotates to the sealing position, under the action of spring preload or medium pressure, the valve seat tightly adheres to the valve core, cutting off the target channel and achieving reliable sealing and flow interruption; Under high-pressure conditions, the pressure relief hole built into the valve body can automatically release the overpressure medium in the valve chamber to the low-pressure side, avoiding valve body rupture.

Stainless steel quick install three-way ball valveCore strengths

1. Hygiene grade adaptation: Made of stainless steel material with mirror polished inner walls, there are no hygiene blind spots, easy to clean and disinfect, and meets the hygiene standards of the food and pharmaceutical industry;

2. Easy installation and maintenance: quick installation clamp connection, no need for professional tools for disassembly and assembly, modular design of vulnerable parts (valve seat, seal), can be replaced separately, reducing downtime;

3. Flexible functionality: L-shaped/T-shaped flow channels are optional, suitable for various control needs such as flow direction switching, diversion, and merging, with high integration, saving 30% to 50% installation space compared to the "ordinary ball valve+pipeline tee" combination;

4. Reliable sealing: Multiple sealing structures are designed to adapt to different pressure and temperature conditions. The soft seal model can achieve zero leakage and meet the requirements of clean medium transportation;

5. Wide adaptability to working conditions: Through the selection of materials and seals, it can be adapted to scenarios with room temperature, low pressure, high temperature, high pressure, and weakly corrosive media, while meeting the needs of both sanitary and industrial applications.

Stainless steel quick install three-way ball valveApplicable scenarios

1. Food and beverage industry: flow switching and material diversion of production lines for juice, dairy products, beer, etc. (such as separating raw pulp into different filling lines);

2. Pharmaceutical industry: The merging and flow switching of drug delivery and purified water systems (such as the collection of purified water from different branches) comply with GMP standards;

3. Water treatment industry: diversion regulation of pure water and sewage treatment systems (such as partial reuse and partial discharge of treated water);

4. Other hygiene level scenarios: precise flow direction and flow control of fluid pipelines in biochemical and cosmetic production.
