Ultrasonic electric screen vibration screening

NegotiableUpdate on 02/04

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Product Introduction: The $r $n ultrasonic vibrating screen converts 220V, 50Hz or 110V, 60Hz electrical energy into 36KHz high-frequency electrical energy, which is then converted into 36KHz mechanical vibration. The generated power ultrasonic waves cause the screen mesh to vibrate at high frequencies. The material on the sieve is subjected to low-frequency rotary vibration motion, combined with ultrasonic vibration, which can prevent mesh blockage and improve the output and quality of the screening machine, thereby achieving the purpose of rapid screening and cleaning. Product features: High frequency connection line: The ultrasonic oscillator and ultrasonic controller are connected by cables, and the connectors are aviation connectors. $r $n ★ transducer: high-frequency ultra

Product Details

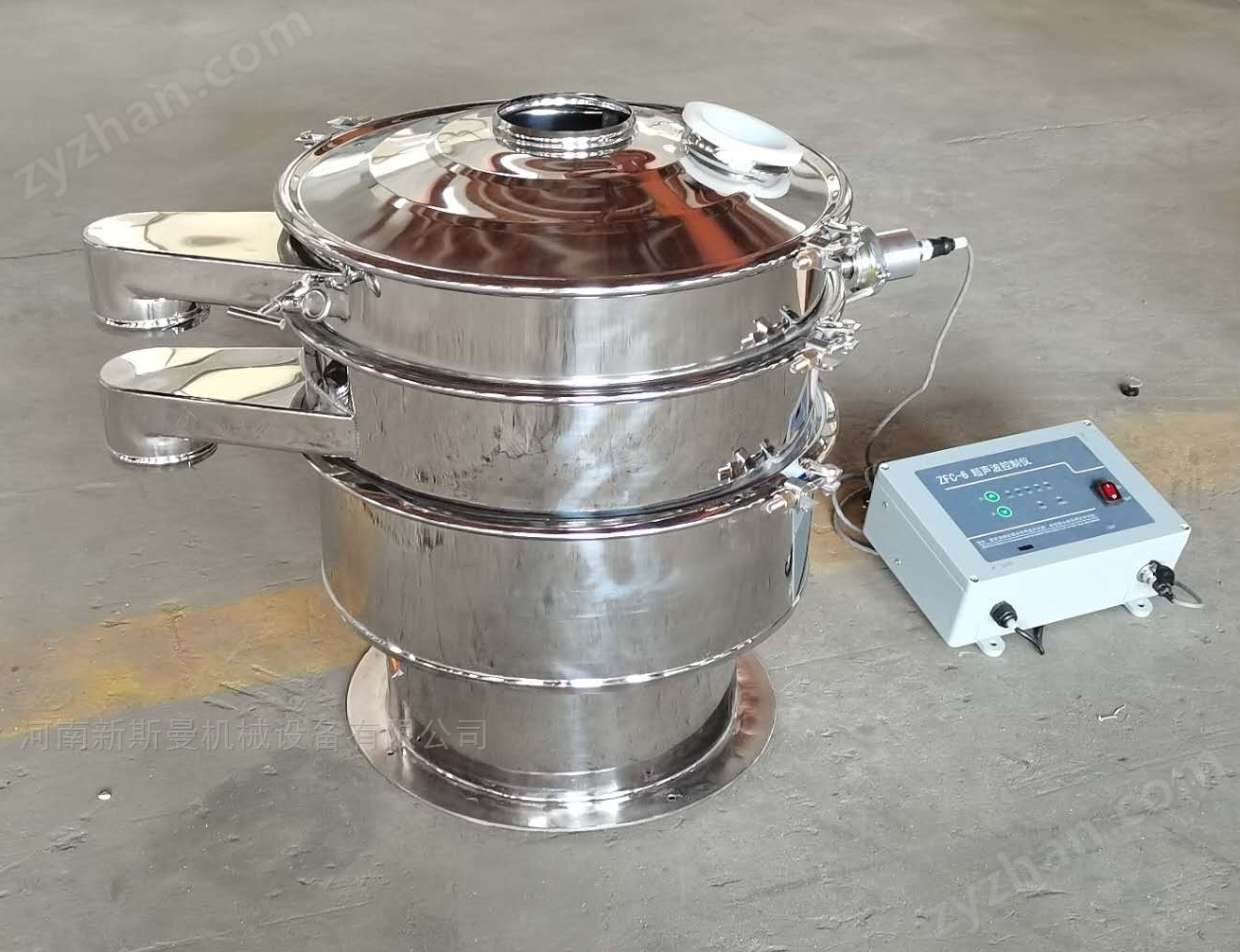

Ultrasonic vibrating screenYes220VThe50Hzor110VThe60HzConversion of electrical energy into36KHzConvert high-frequency electrical energy into36KHzMechanical vibration, generated powerultrasonic waveMake the screen vibrate at high frequency. The material on the sieve is subjected to low-frequency rotary vibration motion, combined with ultrasonic vibration, which can prevent mesh blockage and improve the output and quality of the screening machine, thereby achieving the purpose of rapid screening and net cleaning, making ultrafine powder screening easy. This system introduces a low amplitude, high-frequency ultrasonic vibration wave (mechanical wave) on the sieve based on the traditional vibrating screen to change the screening performance of ultrafine particles. Specially suitable for users with high added value and fine segmentation.

Ultrasonic vibrating screenSuccessfully applied to silicon carbide（325-500Screening of electromagnetic powder, negative electrode material, laser powder, carbon powder, powder coating, alloy powder, molybdenum powder, stainless steel powder, tungsten powder, cobalt powder, nickel powder, quartz powder, malt powder, spore powder, etc.

Ultrasonic vibrating screening machine——High quality vibrating screening machine, with performance comparable to similar international products, solves the screening problems of strong adsorption, easy agglomeration, static electricity, and lightweight materials. The dry powder particle size classification can reach25MmOr liquid filtration can reach10MmThe performance and structural form have been in line with international standards and have received high praise from customers.

feature

1）Excellent screening capability and higher screening accuracy, achieving high-precision screening and improving screening accuracy1—70%Production can be increased0.5—10Twice.

2）No need for rubber balls to clean the net, to prevent further pollution caused by rubber wear.

3）Truly solve the screening problem of materials with strong adsorption, easy agglomeration, high static electricity, and light density.

4）Ensure that the characteristics of the screened material remain unchanged.

5）Digital signal input to achieve automatic frequency tracking.

6）The energy conversion efficiency of the transducer is high (meeting the standards of foreign peers).

7） 24Working continuously for hours, the control power supply and transducer do not require cooling (meeting international standards for similar products).

8）The transducer is connected to the screen mesh using screws, making it easy to disassemble and clean.

9）Separated structure with resonant ring, good effect, and long lifespan of the screen mesh.

10）Can screen25µmThe powder particles can be filtered10µmThe liquid.

11）Effectively prevent screen clogging, and materials that are difficult to screen will hardly block the mesh holes. Can control a narrow range of particle sizes.

12）Adhesive mesh fixed grid, pollution-free, evenly stressed, and easy to replace.
