Vibrating screen machine (tapping screen) inspection screen

Inspection sieveBeating sieveprinciple

Inspection sieveBeating sieveThe motor drives the gear to change speed through a synchronous belt, causing the main shaft to rotate. The main shaft drives the eccentric wheel to drive the sliding plate to shake the test screen left and right, while also driving the gear of the top rod to rotate, hitting the hammer and the test screen to screen the materials in the test screen and sample screen.

Beating sieveIntroduction of;

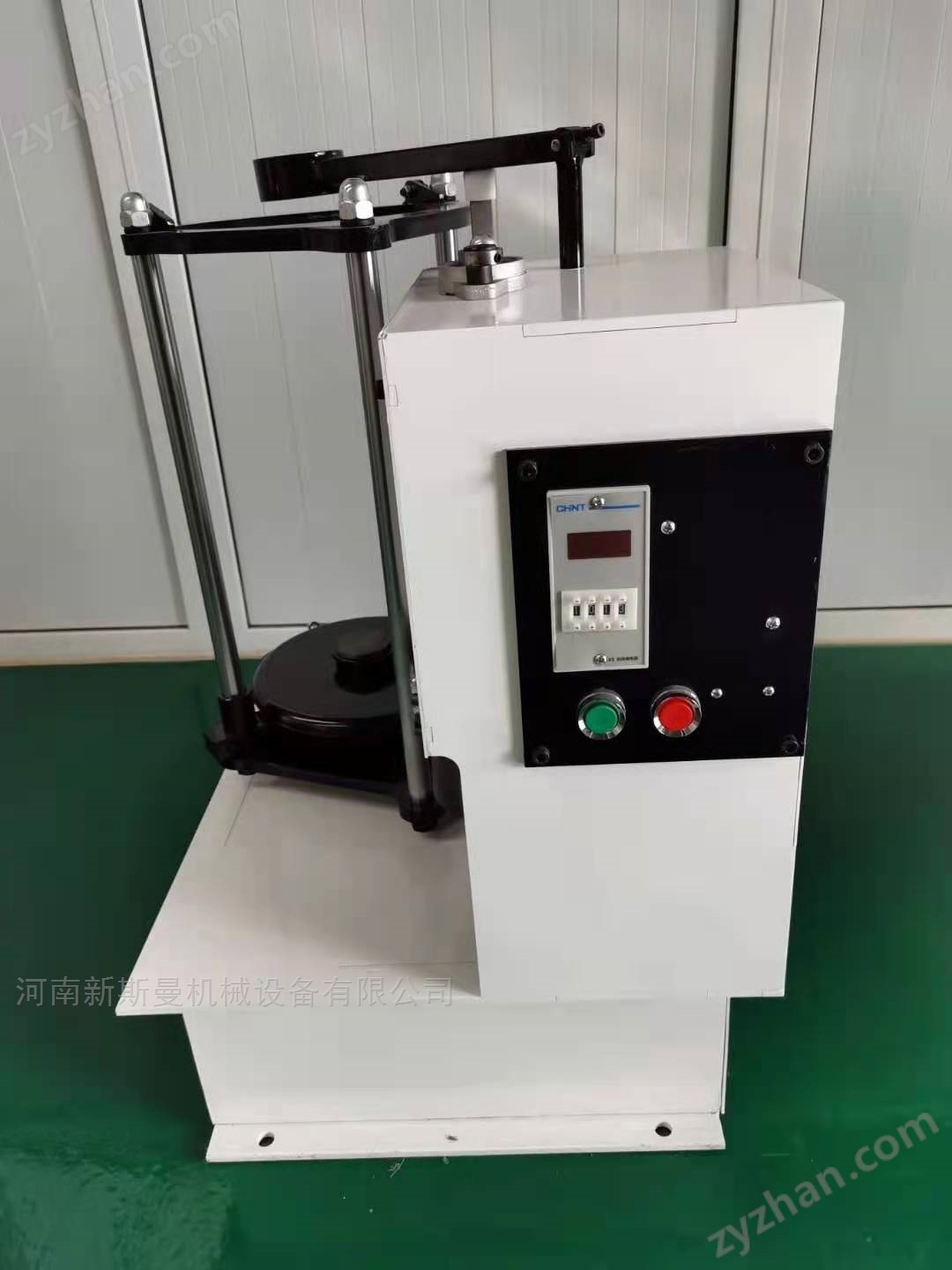

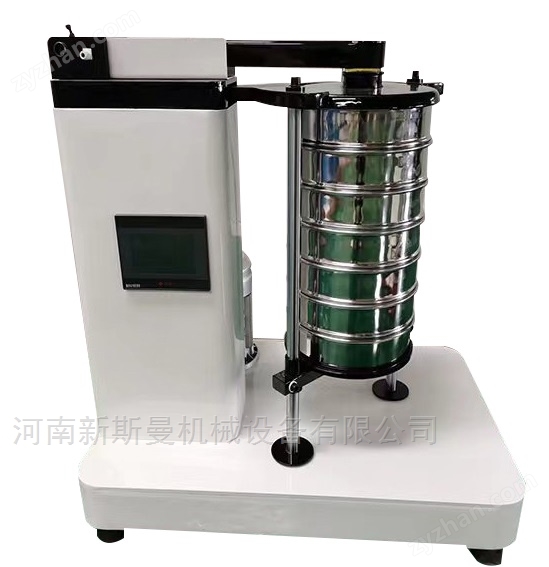

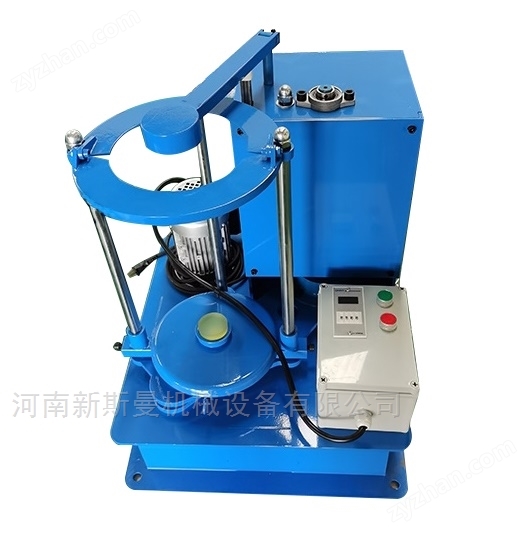

The tapping inspection screen PJS, also known as the standard tapping vibration experimental screen machine, is driven by a motor to a gear (synchronous belt type) and transmitted to the main shaft through a synchronous belt. After the gear changes speed, the main shaft rotates at the required speed, and the main shaft drives an eccentric wheel to make the sliding plate move back and forth, driving the test screen installed in the sliding plate tray to shake left and right. At the same time, the main shaft drives the top rod gear to rotate, and after the speed change, the top rod gear hits the top rod through a cam. The top rod causes the hammer to tap the top cover of the test screen up and down, making the materials in the test screen and sample screen reciprocate and vibrate up and down. The material particles smaller than the mesh of the test screen are screened into the lower test screen. This layer by layer screening ensures that only materials of the same particle size are left in each test screen. Achieve separation of different particle sizes and determine the particle size composition of this material. Widely used in scientific research units, laboratories, inspection rooms, production control, etc. in industries such as food, medicine, chemical, materials, pigments, mining, metallurgy, geology, ceramics, schools, research institutes, national defense, etc. for the inspection, classification, grading, particle size analysis, impurity content analysis, etc. of solid, powder, slurry materials and other materials. Especially for the production of superhard materials such as diamond.

The tapping screen grid is easy to replace and clean, made of all stainless steel, sturdy and durable.
